A single overlooked electrical connection can cost your facility $100,000 per hour in unplanned downtime—or worse, trigger a catastrophic failure that puts lives at risk. In today’s high-stakes industrial environment, where operations run 24/7 and margins are razor-thin, electrical system failures aren’t just inconvenient. They’re devastating.
With NFPA 70B now a mandatory standard rather than a recommendation, electrical preventative maintenance has shifted from best practice to compliance requirement. Yet many facilities still operate without a structured maintenance program, leaving critical systems vulnerable to failure. The consequences range from regulatory penalties to production losses that can cripple a business overnight.
This comprehensive electrical preventative maintenance checklist provides the framework you need to protect your equipment, ensure compliance, and maintain operational continuity. You’ll discover complete monthly, quarterly, and annual inspection schedules, NFPA 70B compliance requirements and documentation standards, and equipment-specific maintenance procedures designed for industrial systems.
Delta Wye Electric has maintained electrical systems across California and Arizona for over 40 years, preventing countless failures through proactive maintenance programs that keep critical facilities running around the clock. Let’s start with understanding why electrical preventative maintenance has become non-negotiable for modern facilities.
Why Electrical Preventative Maintenance Matters Now More Than Ever
The industrial landscape has fundamentally changed. What once was considered “best practice” is now legally mandated. The 2023 adoption of NFPA 70B as a mandatory standard rather than a voluntary recommendation transformed electrical preventative maintenance from optional to essential.
This shift reflects a harsh reality: electrical failures are the leading cause of unplanned industrial downtime. According to recent industry data, electrical system failures account for 30% of all unexpected production stoppages. For critical facilities like data centers, pharmaceutical manufacturers, and food processing plants, these failures carry astronomical costs—often exceeding $100,000 per hour in lost production, spoiled inventory, and recovery expenses.
The True Cost of Reactive Maintenance
Operating without a structured electrical preventative maintenance program means you’re gambling with your facility’s reliability. Reactive maintenance—fixing equipment only after it fails—costs 3-5 times more than preventative approaches when you account for:
- Emergency labor rates and expedited parts
- Production losses during unplanned shutdowns
- Collateral damage to connected equipment
- Safety incidents and potential injuries
- Regulatory fines for compliance violations
- Reputation damage with customers
The ROI of Preventative Maintenance
Facilities that implement comprehensive electrical preventative maintenance programs typically see:
- 70-80% reduction in unexpected equipment failures
- 25-35% lower overall maintenance costs
- 40-50% increase in equipment lifespan
- 90% compliance rate with NFPA 70B requirements
- Elimination of most catastrophic failure events
Beyond cost savings, preventative maintenance delivers predictability. You control when maintenance happens, scheduling work during planned downtime rather than scrambling during production peaks. Your maintenance team transforms from firefighters to strategic partners in operational excellence.
Key Benefits of Preventative vs. Reactive Maintenance:
- Safety: Identify hazards before they cause arc flash incidents or electrical fires
- Compliance: Meet NFPA 70B, NFPA 70E, and NEC requirements systematically
- Reliability: Reduce unplanned downtime by catching problems early
- Efficiency: Maintain optimal system performance and power quality
- Budget Control: Plan maintenance expenses instead of absorbing emergency costs
- Documentation: Build comprehensive records for audits and insurance
- Equipment Life: Extend asset lifecycles through proper care
The shift to mandatory NFPA 70B compliance means facilities must now document their maintenance programs, prove technician qualifications, and demonstrate systematic inspection intervals. Insurance carriers increasingly require proof of preventative maintenance programs before providing coverage. Regulatory agencies expect facilities to show due diligence in preventing electrical hazards.
For more information on ensuring your facility meets all safety requirements, explore our Arc Flash Studies & Compliance services.
Monthly Electrical Preventative Maintenance Checklist
Monthly inspections form the foundation of any effective electrical preventative maintenance checklist. These tasks focus on visual inspections and basic observations that qualified maintenance staff can perform without specialized testing equipment. The goal is early detection—catching warning signs before they escalate into failures.
Safety Requirements for Monthly Inspections
Before beginning any monthly inspection, ensure all personnel are qualified under NFPA 70E standards and equipped with appropriate personal protective equipment (PPE). While these tasks don’t require energized work, proper arc flash PPE Category 1 minimum is required when working near exposed electrical equipment. Always follow your facility-specific lockout/tagout procedures.
Monthly Inspection Tasks:
-
Visual Panel Inspection: Check all electrical panels for signs of overheating (discoloration, melted insulation), unusual odors, or physical damage. Document any abnormalities immediately.
-
Connection Point Examination: Inspect visible connections for corrosion, looseness, or heat damage. Pay special attention to bus bars, terminal blocks, and cable terminations.
-
Enclosure Integrity Check: Verify all electrical enclosures are properly closed, latched, and sealed. Missing or damaged covers create safety hazards and allow contamination.
-
Labeling Verification: Confirm all panels, circuits, and equipment maintain clear, accurate labels. Update any faded or missing identification immediately.
-
Ventilation Assessment: Check that cooling vents and fans are unobstructed and functioning. Blocked ventilation causes 40% of premature electrical equipment failures.
-
Ground Continuity Inspection: Visually verify grounding connections remain intact and properly bonded. Look for corrosion or loose connections.
-
Emergency Lighting Test: Activate emergency lighting systems monthly to verify battery backup and lamp operation.
-
GFCI Device Testing: Test all ground fault circuit interrupters using the built-in test button. Replace any units that fail to trip.
-
Breaker Operation Check: Verify circuit breakers aren’t tripped or in intermediate positions. Document any nuisance tripping patterns.
-
Motor Control Center (MCC) Inspection: Check for unusual vibration, noise, or heat from motor starters and contactors.
-
UPS System Status: Review UPS system displays for alarms, battery status, and load levels. Document any warnings.
-
Transformer Temperature: Feel transformer surfaces (when safe to do so) for excessive heat. Unusual warmth indicates potential overload or cooling issues.
-
Cable Tray Inspection: Verify cables in trays aren’t damaged, overloaded, or improperly supported.
-
Electrical Room Housekeeping: Remove any stored materials, debris, or combustibles from electrical rooms. Maintain required clearances per NEC Article 110.26.
-
Moisture Detection: Look for signs of water intrusion, condensation, or humidity damage in electrical spaces.
-
Backup Generator Visual: Check generator for leaks, proper fluid levels, and physical damage (if accessible).
-
Arc Flash Label Verification: Ensure arc flash warning labels remain visible and legible on all required equipment.
-
Infrared Window Condition: Verify infrared inspection windows are clean and undamaged for upcoming thermal scans.
Visual Inspection Indicators and Their Meanings:
| Indicator | What It Means | Action Required |
|---|---|---|
| Discoloration around connections | Overheating due to loose connection or overload | Schedule immediate torque check and thermal scan |
| Unusual odors (burning, ozone) | Active arcing or overheating insulation | Investigate immediately; may require shutdown |
| Corrosion on terminals | Moisture intrusion or chemical exposure | Clean and protect; identify source |
| Dust or debris accumulation | Inadequate housekeeping; fire risk | Clean immediately; improve protocols |
| Physical damage to enclosures | Safety hazard; potential arc flash exposure | Repair or replace immediately |
| Moisture or condensation | Environmental control failure | Address humidity source; protect equipment |
| Tripped breakers or blown fuses | Overload, short circuit, or equipment fault | Investigate root cause before resetting |
| Loose or missing covers | Safety violation; contamination risk | Secure immediately |
Documentation Requirements
Record all monthly inspections in your maintenance management system, noting the date, inspector name, observations, and any corrective actions taken. This documentation proves compliance with NFPA 70B requirements and creates a historical record that helps identify developing patterns.
Monthly inspections typically require 2-4 hours depending on facility size. While they may seem routine, these regular checkpoints prevent 60% of potential electrical failures by catching issues in their early stages.
Quarterly Electrical Maintenance Procedures
Quarterly maintenance moves beyond visual inspection to include diagnostic testing and procedures that require specialized equipment or certified technicians. These intermediate-level tasks identify problems that aren’t visible to the naked eye but can cause significant failures if left unaddressed.
Quarterly Maintenance Tasks by Equipment Type:
Switchgear and Distribution Equipment:
-

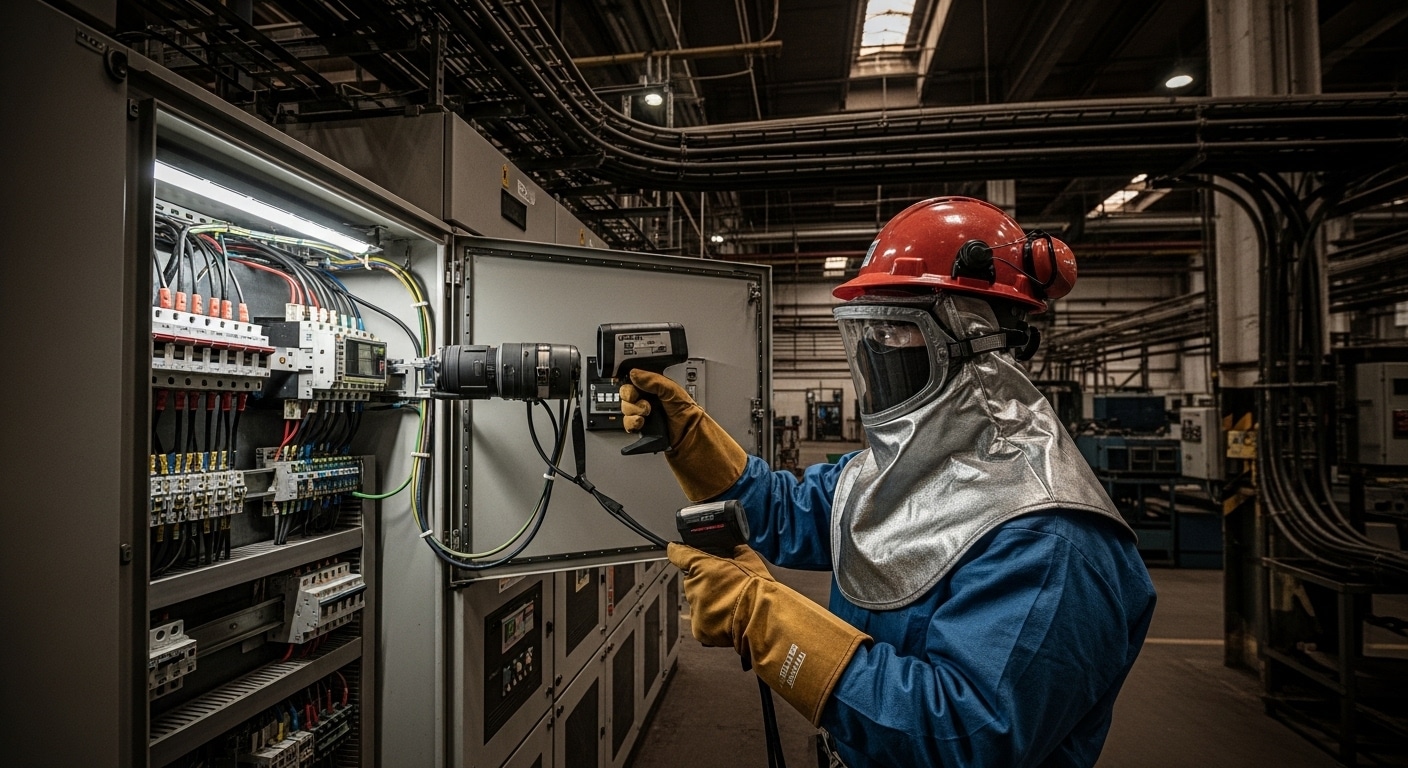

Infrared Thermal Scanning: Perform comprehensive thermal imaging of all energized electrical equipment to identify hot spots indicating loose connections, overloaded circuits, or failing components. Industry standards indicate connections operating 40°F above ambient require immediate attention.
-
Connection Torque Verification: Using calibrated torque wrenches, verify critical connections meet manufacturer specifications. Typical specifications: main bus connections 250-600 ft-lbs, breaker terminals 150-300 ft-lbs, control wiring 7-9 in-lbs.
-
Breaker Maintenance: Exercise circuit breakers through several open-close cycles to prevent contact welding and mechanism binding. Clean and lubricate operating mechanisms per manufacturer recommendations.
-
Insulation Resistance Testing: Perform megohm testing on critical circuits to identify insulation degradation before failures occur. Minimum acceptable values typically exceed 1 megohm per NEC standards.
-
Protective Relay Testing: Verify protective relay settings and operation using test sets. Ensure coordination studies remain valid as facility loads change.
For comprehensive thermal analysis beyond routine quarterly scans, consider our specialized Infrared Inspections & Reporting services.
Motor Control Centers and Variable Frequency Drives:
-
Contactor Inspection: Check contactors for pitting, burning, or wear. Replace contacts showing more than 10% material loss.
-
VFD Parameter Verification: Review VFD settings, error logs, and operating parameters. Verify proper cooling fan operation and clean heat sinks.
-
Control Circuit Testing: Verify all control circuits, interlocks, and safety devices function properly. Test emergency stop circuits quarterly.
-
Capacitor Bank Inspection: Check power factor correction capacitors for bulging, leaking, or overheating. Test capacitance values to verify performance.
Transformers:
-
Load Measurement: Document transformer loading under typical operating conditions. Transformers consistently operating above 80% capacity require closer monitoring.
-
Temperature Monitoring: Record top oil and winding temperatures. Compare to nameplate ratings and historical baselines.
-
Cooling System Check: Verify radiators, fans, and pumps operate properly. Clean external surfaces to maintain heat dissipation.
-
Oil Level Verification: Check oil levels in liquid-filled transformers. Low levels indicate leaks requiring immediate attention.
Emergency Power Systems:
-
Generator Load Bank Testing: Exercise generators under load quarterly to prevent wet stacking and verify capacity. Test at 50-75% of rated load for 1-2 hours.
-
Transfer Switch Operation: Test automatic transfer switches under simulated power failure conditions. Verify timing, sequencing, and proper operation.
-
Battery System Testing: Measure battery voltage, specific gravity, and internal resistance. Replace batteries showing 20% capacity loss.
-
Fuel System Inspection: Check fuel quality, quantity, and delivery systems. Test fuel for contamination and treat as needed.
Safety Requirements
All quarterly maintenance procedures must be performed by certified electricians qualified under NFPA 70E standards. Energized work requires documented arc flash studies, proper PPE, and approved work permits. Most quarterly tasks can be performed with equipment energized using appropriate safety protocols, but some procedures require scheduled outages.
When to Call Certified Professionals:
While qualified in-house maintenance staff can perform many quarterly tasks, certain procedures require specialized certification:
- Arc flash studies and protective device coordination
- High-voltage equipment testing (above 600V)
- Oil testing and analysis for transformers
- Protective relay programming and coordination
- Power quality monitoring and harmonic analysis
Quarterly Inspection Intervals by Equipment and Usage:
| Equipment Type | Standard Interval | High-Use Interval | Critical System Interval |
|---|---|---|---|
| Switchgear | Quarterly | Monthly | Monthly |
| Motor Control Centers | Quarterly | Quarterly | Monthly |
| Variable Frequency Drives | Quarterly | Monthly | Monthly |
| Transformers (under 80% load) | Quarterly | Quarterly | Quarterly |
| Transformers (over 80% load) | Monthly | Monthly | Monthly |
| UPS Systems | Quarterly | Monthly | Monthly |
| Emergency Generators | Quarterly | Quarterly | Monthly |
| Transfer Switches | Quarterly | Quarterly | Monthly |
| Distribution Panels | Quarterly | Quarterly | Quarterly |
Quarterly maintenance typically requires 1-2 days per facility depending on equipment quantity and complexity. Schedule these procedures during planned maintenance windows to minimize operational impact.
Annual Electrical System Maintenance Requirements
Annual maintenance represents the most comprehensive level of your electrical preventative maintenance checklist. These procedures involve detailed testing, documentation updates, and system-wide evaluations that ensure long-term reliability and compliance. Many annual tasks require scheduled outages and specialized testing equipment.
Comprehensive Annual Maintenance Schedule:
Power Distribution Systems:
-
Complete Insulation Resistance Testing: Perform megohm testing on all major circuits, feeders, and distribution equipment. Document trending data to identify degradation patterns. Values below 1 megohm require investigation; values below 100 kilohms demand immediate action.
-
Ground Resistance Testing: Verify electrical grounding systems maintain resistance below 5 ohms (preferably below 1 ohm for sensitive equipment). Test using fall-of-potential method with calibrated equipment per IEEE 81 standards.
-
Protective Device Coordination Study Update: Review and update coordination studies annually or whenever significant load changes occur. Verify protective devices remain properly coordinated to minimize disruption during fault conditions.
-
Power Quality Analysis: Conduct comprehensive power quality surveys to identify harmonics, voltage disturbances, and other issues affecting sensitive equipment. Document findings and recommend corrective actions.
Our Power Quality Analysis services provide detailed assessment and solutions for complex power quality challenges.
Transformer Maintenance:
-
Oil Sampling and Testing: Extract and test transformer oil for dielectric strength, dissolved gas analysis (DGA), moisture content, and acidity. Oil testing reveals internal problems before external symptoms appear.
-
Winding Resistance Measurement: Measure and compare winding resistance values to baseline readings. Significant changes indicate developing problems.
-
Turns Ratio Testing: Verify transformer turns ratios meet specifications. Deviations indicate winding damage or tap changer problems.
-
Bushing Inspection and Testing: Thoroughly inspect bushings for cracks, tracking, or contamination. Test power factor and capacitance values.
-
Cooling System Maintenance: Service cooling fans, pumps, and radiators. Clean heat exchange surfaces and verify proper operation under load.
Switchgear and Circuit Breakers:
-
Circuit Breaker Calibration: Remove, clean, and calibrate critical circuit breakers. Verify trip settings match coordination study requirements. Test timing and contact resistance.
-
Contact Resistance Testing: Measure contact resistance across all major breakers and switches. Values exceeding manufacturer specifications by 20% require maintenance or replacement.
-
Vacuum Bottle Testing: Test vacuum interrupters in vacuum breakers to verify integrity. Replace bottles showing loss of vacuum.
-
Mechanism Lubrication: Thoroughly clean and lubricate all operating mechanisms per manufacturer recommendations. Replace worn components.
-
Relay Calibration: Calibrate protective relays and verify settings. Update firmware on digital relays and document configuration.
Emergency Power Systems:
-
Generator Full-Load Testing: Test generators at 100% rated load for minimum 2 hours. Verify proper operation, temperature rise, and fuel consumption.
-
Transfer Switch Timing Verification: Measure and document transfer switch timing under load. Verify settings meet facility requirements.
-
Battery Load Testing: Perform full discharge testing on battery systems to verify capacity. Replace batteries failing to meet 80% of rated capacity.
-
Fuel System Cleaning: Clean fuel tanks, replace filters, and treat fuel for long-term storage stability.
Motor Control Centers:
-
Starter Contact Replacement: Replace worn contacts in high-cycle applications. Inspect and clean all starter components.
-
Overload Relay Calibration: Test and calibrate thermal overload relays. Verify settings protect motors while preventing nuisance trips.
-
Control Circuit Verification: Thoroughly test all control circuits, interlocks, and safety devices. Update control logic documentation.
Cable and Wiring Systems:
-
Cable Insulation Testing: Test insulation resistance on all major cable runs. Flag cables showing degradation for monitoring or replacement.
-
Cable Tray Inspection: Thoroughly inspect cable trays for corrosion, overloading, or improper support. Verify proper separation between power and control cables.
-
Conduit System Evaluation: Check conduit systems for damage, proper support, and adequate fill ratios.
NFPA 70B Required Documentation:
Maintaining comprehensive records is essential for NFPA 70B compliance. Your annual documentation package must include:
- Equipment Inventory: Complete list of all electrical equipment with nameplate data
- Maintenance Schedules: Documented intervals for all equipment types
- Inspection Records: Detailed findings from all inspections and tests
- Test Results: Megohm readings, thermal scan reports, oil analysis, ground resistance values
- Corrective Actions: Documentation of all repairs and improvements
- Technician Qualifications: Proof of NFPA 70E qualification for all personnel
- Training Records: Evidence of ongoing electrical safety training
- Arc Flash Study: Current arc flash hazard analysis with boundary calculations
- Single-Line Diagrams: Updated electrical distribution drawings
- Coordination Studies: Current protective device coordination analysis
Annual Maintenance Schedule by Equipment Category:
| Equipment Category | Maintenance Window | Estimated Duration | Outage Required |
|---|---|---|---|
| Main Switchgear | 8-24 hours | 1-2 days | Yes (planned) |
| Transformers (oil-filled) | 4-8 hours per unit | 1 day | Partial |
| Emergency Generators | 4-6 hours | 1 day | No (test mode) |
| UPS Systems | 2-4 hours | Half day | No (bypass mode) |
| Motor Control Centers | 1-2 hours per section | 2-3 days | Partial |
| Distribution Panels | 30-60 minutes each | 1-2 days | Partial |
| Battery Systems | 4-8 hours | 1 day | No (on bypass) |
| Transfer Switches | 2-4 hours each | 1 day | Yes (brief) |
Annual maintenance procedures typically require 3-5 days of dedicated effort for medium-sized facilities, often scheduled during planned shutdowns or seasonal low-production periods. The investment in comprehensive annual maintenance prevents costly failures and ensures your electrical systems support reliable operations year-round.
Equipment-Specific Maintenance Checklists
Different types of electrical equipment require specialized maintenance procedures beyond general inspection tasks. This section provides targeted electrical equipment maintenance checklist items organized by equipment category to ensure nothing falls through the cracks.
Switchgear Maintenance
Monthly Tasks:
- Visual inspection for overheating, unusual sounds, or odors
- Verify all indicator lights and meters function properly
- Check for proper door closure and latch operation
- Confirm adequate clearances maintained per NEC 110.26
Quarterly Tasks:
- Infrared thermal scanning of all connections and components
- Exercise circuit breakers and switches through full operation cycle
- Verify ground connections remain tight and corrosion-free
- Clean dust and debris from compartments using HEPA vacuum
Annual Tasks:
- Complete insulation resistance testing of all buses and feeders
- Contact resistance testing on all breakers and switches
- Protective relay testing and calibration
- Mechanical inspection and lubrication of operating mechanisms
- Update nameplate data and as-built documentation
Transformer Maintenance
Monthly Tasks:
- Record oil temperature and compare to baseline
- Check oil level in sight glass
- Listen for unusual sounds indicating loose laminations or arcing
- Verify cooling fans operate when temperature rises
Quarterly Tasks:
- Measure and document load levels under typical operation
- Inspect bushings for cracks, tracking, or oil leaks
- Check radiator fins and cooling surfaces for obstructions
- Test operation of temperature monitoring and alarm systems
Annual Tasks:
- Oil sampling and laboratory analysis (dielectric, DGA, moisture, acidity)
- Winding resistance and turns ratio testing
- Power factor testing of bushings and windings
- Complete cooling system maintenance and fan testing
- Inspect and test tap changer operation (if equipped)
- Ground resistance verification
Critical Note: Transformers operating above 80% of rated capacity require monthly oil testing instead of annual. Overloaded transformers experience accelerated aging and increased failure risk.
UPS System Maintenance
Monthly Tasks:
- Review event logs for alarms, power disturbances, or battery discharges
- Verify battery voltage and charge state
- Check bypass operation and transfer capability
- Test cooling fans and verify proper airflow
Quarterly Tasks:
- Battery string voltage and individual cell voltage measurements
- Internal resistance testing of battery cells
- Capacitor bank inspection and testing
- Verify UPS operates properly in all modes (normal, battery, bypass)
Annual Tasks:
- Complete battery load bank testing to verify runtime
- Replace batteries showing 20% capacity degradation
- Clean and inspect all internal components
- Update firmware and control software
- Verify proper operation of monitoring and alarm systems
- Test automatic shutdown sequences
Motor Control Center (MCC) Maintenance
Monthly Tasks:
- Visual inspection for signs of overheating or arcing
- Verify all pilot lights and indicators function
- Check for unusual vibration or noise from contactors
- Confirm proper operation of local control devices
Quarterly Tasks:
- Infrared thermal scanning of all starters and connections
- Exercise all contactors and starters
- Clean dust from compartments and control components
- Verify overload relay settings match motor nameplates
Annual Tasks:
- Contact inspection and replacement in high-cycle applications
- Overload relay testing and calibration
- Control circuit testing and verification
- Insulation resistance testing of motor feeders
- Mechanical inspection and lubrication
- Update motor data and control logic documentation
Emergency Generator Maintenance
Weekly Tasks:
- Visual inspection for leaks or damage
- Check engine oil, coolant, and fuel levels
- Exercise generator for 30 minutes under no-load
Monthly Tasks:
- Exercise generator for 60 minutes at 30-50% load
- Inspect battery terminals and connections
- Check for proper coolant temperature and oil pressure
- Test block heater operation
Quarterly Tasks:
- Load bank test at 50-75% rated load for 2 hours
- Battery load testing and specific gravity measurement
- Inspect and clean air filters
- Check belts, hoses, and connections for wear
- Test automatic start sequence and transfer switch operation
Annual Tasks:
- Full-load testing at 100% capacity for 2 hours minimum
- Change engine oil and filters
- Replace fuel filters and treat fuel for stability
- Clean and service cooling system
- Inspect and test all safety systems and alarms
- Verify proper operation under simulated utility failure
- Update runtime logs and maintenance records
Variable Frequency Drive (VFD) Maintenance
Monthly Tasks:
- Review error logs and alarm history
- Check cooling fan operation and clean air filters
- Verify proper heat sink temperature
- Check for loose connections or vibration
Quarterly Tasks:
- Clean heat sinks and internal components using compressed air
- Verify parameter settings match application requirements
- Test all input and output signals
- Inspect DC bus capacitors for bulging or leakage
Annual Tasks:
- Complete parameter backup and documentation
- Capacitor bank testing and replacement if needed
- Insulation resistance testing of motor cables
- Verify proper operation of bypass contactors
- Update firmware if manufacturer recommends
- Clean and inspect all internal components
When to Call Certified Professionals:
While qualified maintenance personnel can perform many routine tasks, certain procedures require specialized expertise:
- Arc flash studies and boundary calculations (required every 5 years or after significant changes)
- High-voltage testing above 600V requires specialized equipment and certification
- Transformer oil analysis interpretation and dissolved gas analysis
- Protective device coordination studies and relay programming
- Power quality analysis and harmonic mitigation solutions
- Ground resistance testing using fall-of-potential method
- Infrared thermography Level II or III certification recommended
For complex electrical challenges requiring engineering expertise, explore our Electrical Engineering & Design services.
Equipment-specific maintenance ensures each component receives appropriate care based on its design, application, and criticality. Customize these checklists to your facility’s specific equipment and operating conditions, always following manufacturer recommendations where they exceed these baseline standards.
NFPA 70B Compliance and Documentation Standards
The 2023 adoption of NFPA 70B as a mandatory standard fundamentally changed electrical maintenance requirements across the United States. What was once a recommended best practice is now a legal requirement, and facilities must demonstrate systematic compliance through documented programs and qualified personnel.
Understanding the NFPA 70B Mandate
NFPA 70B, “Recommended Practice for Electrical Equipment Maintenance,” provides comprehensive guidance for maintaining electrical systems in industrial, commercial, and institutional facilities. The standard addresses:
- Maintenance program development and implementation
- Inspection and testing frequencies for all equipment types
- Documentation and record-keeping requirements
- Personnel qualification standards
- Safety procedures during maintenance activities
While NFPA 70B has existed for decades, its recent adoption as a mandatory requirement by many jurisdictions means facilities can no longer treat it as optional guidance. Insurance carriers increasingly require proof of NFPA 70B-compliant programs, and regulatory agencies expect facilities to demonstrate due diligence in preventing electrical hazards.
Required Documentation for NFPA 70B Compliance:
Your electrical preventative maintenance program must include comprehensive documentation covering:
- Electrical Equipment Inventory
- Complete list of all electrical equipment
- Manufacturer, model, and serial numbers
- Installation dates and warranty information
- Nameplate ratings and specifications
- Location and identification codes
- Maintenance Procedures and Schedules
- Documented maintenance intervals for each equipment type
- Specific procedures for inspection and testing tasks
- Safety requirements and PPE specifications
- Required tools and testing equipment
- Manufacturer maintenance recommendations
- Inspection and Test Records
- Date of service and personnel performing work
- Detailed findings and measurements
- Thermal scan images and temperature data
- Insulation resistance values and trending
- Oil analysis results for transformers
- Ground resistance measurements
- Protective device test results
- Corrective Action Documentation
- Description of problems identified
- Corrective actions taken
- Parts replaced and materials used
- Follow-up inspection results
- Cost tracking and budget impact
- Safety Documentation
- Current arc flash hazard analysis (NFPA 70E requirement)
- Arc flash labels on all required equipment
- Lockout/tagout procedures
- Electrical safety program documentation
- Incident reports and near-miss documentation
- Personnel Qualifications
- NFPA 70E qualified person documentation
- Training records and certifications
- Continuing education documentation
- Contractor qualification verification
- System Documentation
- Current single-line diagrams
- Protective device coordination studies
- As-built drawings and modifications
- Equipment manuals and manufacturer data
- Previous maintenance history
Technician Certification Requirements:
NFPA 70B and NFPA 70E establish clear requirements for personnel performing electrical maintenance:
Qualified Person Definition (NFPA 70E):
A qualified person must demonstrate skills and knowledge related to the construction and operation of electrical equipment and installations, and must have received safety training to identify and avoid electrical hazards.
Minimum Requirements:
- Documented electrical training appropriate to the work performed
- NFPA 70E electrical safety training (renewed every 3 years)
- Arc flash hazard awareness and PPE requirements
- Lockout/tagout procedures and authorization
- First aid and CPR certification (recommended)
Specialized Certifications:
Certain tasks require additional qualifications:
- Infrared Thermography: Level I certification minimum (Level II recommended)
- Protective Relay Testing: Manufacturer-specific training required
- High-Voltage Work: Specialized training and authorization above 600V
- Arc Flash Studies: Professional Engineer (PE) license typically required
Audit Preparation and Compliance Verification
Regular audits verify your electrical preventative maintenance program meets NFPA 70B requirements. Prepare for audits by:
- Organizing Documentation
- Maintain centralized records accessible for review
- Ensure all required documentation is current and complete
- Verify signatures and dates on all inspection records
- Organize by equipment type and date for easy retrieval
- Verifying Maintenance Intervals
- Confirm all equipment receives maintenance at required frequencies
- Document any deviations with justification
- Show trending data proving program effectiveness
- Validating Personnel Qualifications
- Maintain current training records for all personnel
- Verify NFPA 70E training is current (within 3 years)
- Document contractor qualifications and insurance
- Demonstrating Continuous Improvement
- Show how findings lead to corrective actions
- Document program updates based on lessons learned
- Track reliability improvements and failure reductions
Common NFPA 70B Compliance Gaps:
Facilities frequently struggle with these compliance areas:
- Inadequate Documentation: Missing inspection records or incomplete test data
- Inconsistent Intervals: Maintenance performed “when convenient” rather than on schedule
- Unqualified Personnel: Technicians lacking proper NFPA 70E training
- Missing Arc Flash Studies: Facilities without current hazard analysis (required every 5 years)
- Poor Record Retention: Inability to demonstrate historical maintenance patterns
- Incomplete Equipment Inventory: Unknown or undocumented electrical equipment
- Outdated Drawings: As-built documentation not reflecting current configuration
Integration with Other Standards:
NFPA 70B compliance integrates with related electrical standards:
- NFPA 70E: Electrical safety requirements for personnel
- NFPA 70 (NEC): Installation and maintenance requirements
- IEEE Standards: Equipment testing and maintenance procedures
- OSHA Regulations: Workplace safety and electrical hazard requirements
- Manufacturer Requirements: Warranty and liability considerations
Achieving and maintaining NFPA 70B compliance requires commitment, but the benefits extend far beyond regulatory satisfaction. Facilities with documented, systematic maintenance programs experience fewer failures, lower costs, and improved safety outcomes. The documentation you create for compliance also provides valuable data for optimizing maintenance strategies and justifying equipment investments.
Building Your Electrical Preventative Maintenance Program
Creating an effective electrical preventative maintenance program requires more than just implementing checklists. You need a systematic approach that integrates with your operations, scales with your facility, and delivers measurable improvements in reliability and safety.
Step 1: Conduct Initial Facility Assessment
Begin with a comprehensive evaluation of your current state:
Equipment Audit:
- Create complete inventory of all electrical equipment
- Document age, condition, and criticality of each asset
- Identify equipment lacking maintenance history
- Prioritize equipment based on failure impact and probability
Current Practice Review:
- Document existing maintenance activities and frequencies
- Identify gaps between current practice and NFPA 70B requirements
- Review historical failure data and downtime incidents
- Assess available resources (personnel, tools, budget)
Risk Assessment:
- Evaluate consequences of failure for each equipment type
- Identify single points of failure in your distribution system
- Assess current arc flash hazards and safety risks
- Determine regulatory compliance gaps
For facilities requiring comprehensive electrical system evaluation, our Industrial Electrical Construction team provides detailed assessments and improvement recommendations.
Step 2: Develop Program Framework
Structure your electrical preventative maintenance program around these core elements:
Maintenance Strategy Selection:
Choose appropriate strategies for different equipment types:
- Time-Based Maintenance: Scheduled intervals for routine tasks (most common)
- Condition-Based Maintenance: Maintenance triggered by measured conditions
- Predictive Maintenance: Advanced monitoring to forecast failures
- Run-to-Failure: Acceptable only for non-critical, low-cost equipment
Interval Determination:
Establish maintenance frequencies based on:
- NFPA 70B recommendations (minimum baseline)
- Manufacturer maintenance schedules
- Equipment criticality and operating conditions
- Historical failure data and reliability requirements
- Environmental factors (temperature, humidity, contamination)
Resource Planning:
Identify resources needed to execute the program:
- Personnel: In-house staff vs. contracted specialists
- Tools and Equipment: Testing equipment, safety gear, documentation systems
- Budget: Annual maintenance costs and emergency reserves
- Downtime Windows: Planned outage schedules for major maintenance
Step 3: Create Documentation System
Implement a robust system for capturing and managing maintenance data:
Computerized Maintenance Management System (CMMS):
Select and configure a CMMS to:
- Schedule and track all maintenance activities
- Store equipment data and maintenance history
- Generate work orders and inspection checklists
- Maintain personnel qualification records
- Produce compliance reports and trending analysis
Paper-Based Alternative:
If CMMS isn’t feasible, create structured paper systems with:
- Equipment folders with complete documentation
- Maintenance log books with standardized forms
- Centralized filing system with retention schedule
- Regular review process to identify trends
Step 4: Establish Procedures and Standards
Document clear procedures for all maintenance activities:
Standard Operating Procedures (SOPs):
Create detailed procedures covering:
- Safety requirements and PPE specifications
- Step-by-step task instructions
- Required tools and testing equipment
- Acceptance criteria and specifications
- Documentation requirements
Safety Protocols:
Establish comprehensive safety procedures:
- Lockout/tagout procedures for all equipment
- Arc flash hazard assessment and PPE requirements
- Hot work permits for energized maintenance
- Emergency response procedures
- Incident reporting and investigation
Step 5: Train and Qualify Personnel
Invest in comprehensive training to ensure competent execution:
Initial Training:
- NFPA 70E electrical safety (8-hour minimum)
- Equipment-specific maintenance procedures
- Testing equipment operation and calibration
- Documentation and CMMS usage
- Arc flash hazard recognition and PPE selection
Ongoing Development:
- Refresher training every 3 years (NFPA 70E requirement)
- New equipment and technology training
- Lessons learned from failures and near-misses
- Industry best practices and standard updates
Step 6: Implement and Execute
Launch your program with clear communication and support:
Rollout Plan:
- Communicate program goals and benefits to all stakeholders
- Establish clear roles and responsibilities
- Begin with high-priority equipment and expand systematically
- Track early wins and share success stories
Execution Discipline:
- Schedule maintenance activities in advance
- Protect maintenance windows from production pressure
- Complete all required documentation immediately
- Address identified issues promptly
Step 7: Monitor, Measure, and Improve
Track program performance and continuously optimize:
Key Performance Indicators (KPIs):
- Schedule Compliance: Percentage of maintenance completed on time
- Unplanned Downtime: Hours lost to electrical failures
- Mean Time Between Failures (MTBF): Reliability trending
- Maintenance Cost per Asset: Efficiency measurement
- Safety Incidents: Electrical-related injuries or near-misses
- Compliance Rate: NFPA 70B requirement adherence
Continuous Improvement Process:
- Review KPIs monthly and trend over time
- Conduct root cause analysis on all failures
- Update procedures based on lessons learned
- Adjust maintenance intervals based on condition data
- Invest in predictive technologies where justified
Maintenance Schedule Framework Template:
| Equipment Type | Monthly | Quarterly | Annual | Special Intervals |
|---|---|---|---|---|
| Main Switchgear | Visual inspection | Thermal scan, torque check | Full testing, calibration | After fault events |
| Transformers | Temperature, oil level | Load measurement | Oil analysis, full testing | After overload events |
| Motor Control Centers | Visual inspection | Thermal scan, exercise | Contact replacement, testing | Based on cycle count |
| Emergency Generators | Weekly exercise | Load bank test | Full-load test, oil change | After extended runs |
| UPS Systems | Event log review | Battery testing | Load test, battery replacement | After utility events |
| Distribution Panels | Visual inspection | Thermal scan | Insulation testing | After modifications |
Program ROI Calculation:
Track return on investment to justify program resources:
Cost Avoidance:
- Prevented failures × Average failure cost
- Extended equipment life × Replacement cost
- Reduced energy costs from optimized systems
- Lower insurance premiums with documented programs
Direct Savings:
- Reduced emergency maintenance costs
- Lower parts costs through planned purchasing
- Decreased labor costs (planned vs. emergency)
- Minimized production losses from downtime
Most facilities achieve 3:1 to 5:1 ROI on comprehensive electrical preventative maintenance programs within the first 2-3 years. The investment in systematic maintenance pays for itself through prevented failures, extended equipment life, and improved operational reliability.
Building an effective electrical preventative maintenance program takes time and commitment, but the alternative—operating without structured maintenance—puts your facility at unacceptable risk. Start with the basics, document everything, and continuously improve based on results.
Common Electrical Maintenance Mistakes to Avoid
Even well-intentioned maintenance programs can fail when facilities make critical errors that compromise safety, reliability, or compliance. Understanding these common mistakes helps you avoid costly consequences and build a more effective electrical preventative maintenance program.
1. Deferring Maintenance Based on Appearance
The Mistake: Assuming equipment is fine because it “looks good” or hasn’t failed yet. Electrical problems develop internally long before external symptoms appear.
The Consequence: Catastrophic failures occur without warning. A transformer operating with degraded oil may appear normal until it fails explosively. Loose connections show no visible signs until they cause arc flash incidents.
The Solution: Follow scheduled maintenance intervals regardless of appearance. Use diagnostic testing (thermal scanning, oil analysis, insulation testing) to identify problems before they become visible. Trust data over visual assessment.
2. Inadequate Lockout/Tagout Procedures
The Mistake: Taking shortcuts with lockout/tagout procedures, assuming equipment is de-energized without verification, or allowing unauthorized personnel to remove locks.
The Consequence: Electrocution, arc flash injuries, or death. Lockout/tagout violations cause approximately 10% of serious electrical injuries annually.
The Solution: Implement rigorous lockout/tagout procedures following NFPA 70E and OSHA standards. Verify de-energization with appropriate testing equipment. Never compromise on electrical safety procedures—ever.
3. Skipping Documentation
The Mistake: Performing maintenance without recording findings, measurements, or actions taken. Relying on memory instead of written records.
The Consequence: Lost compliance verification, inability to identify trends, repeated mistakes, and no defense against liability claims. During audits or after failures, undocumented maintenance might as well not have happened.
The Solution: Document everything immediately. Record inspection findings, test measurements, parts replaced, and observations. Use standardized forms and maintain records for minimum 7 years. Make documentation non-negotiable.
4. Using Unqualified Personnel
The Mistake: Allowing untrained or unqualified personnel to perform electrical maintenance because they’re available or cost less than certified electricians.
The Consequence: Safety violations, improper repairs, voided warranties, regulatory penalties, and increased liability. Unqualified work often creates more problems than it solves.
The Solution: Verify all personnel performing electrical work meet NFPA 70E qualified person requirements. Maintain current training records. Use certified electricians for tasks beyond basic visual inspection. When in doubt, call professionals.
5. Ignoring Manufacturer Recommendations
The Mistake: Deviating from manufacturer maintenance schedules, using incorrect lubricants or replacement parts, or ignoring service bulletins.
The Consequence: Voided warranties, premature failures, and liability exposure. Manufacturers design maintenance requirements based on engineering analysis—ignoring them invites problems.
The Solution: Obtain and follow manufacturer maintenance manuals for all equipment. Subscribe to service bulletins and technical updates. Use specified replacement parts and materials. Document compliance with manufacturer requirements.
6. Inconsistent Maintenance Intervals
The Mistake: Performing maintenance “when convenient” rather than on schedule, extending intervals to save money, or deferring tasks during busy production periods.
The Consequence: Accelerated equipment degradation, unexpected failures during critical periods, and compliance violations. Maintenance intervals exist for reasons—problems develop on equipment schedules, not yours.
The Solution: Protect scheduled maintenance windows. Plan production around maintenance requirements, not the reverse. Track and report schedule compliance. Address resource constraints before they force schedule compromises.
7. Overlooking Environmental Factors
The Mistake: Using standard maintenance intervals without considering harsh operating environments (heat, humidity, dust, chemicals, vibration).
The Consequence: Premature failures in equipment operating under severe conditions. Standard intervals may be inadequate for challenging environments.
The Solution: Adjust maintenance frequencies based on operating conditions. Equipment in harsh environments requires more frequent inspection and maintenance. Monitor condition indicators and adjust intervals based on actual degradation rates.
8. Failing to Address Root Causes
The Mistake: Repeatedly repairing or replacing the same components without investigating why failures occur. Treating symptoms instead of causes.
The Consequence: Recurring failures, escalating costs, and eventual catastrophic breakdown. A circuit that trips repeatedly indicates an underlying problem that must be resolved.
The Solution: Perform root cause analysis on all failures and recurring problems. Look beyond the failed component to identify contributing factors. Implement corrective actions that prevent recurrence, not just restore function.
9. Inadequate Arc Flash Hazard Assessment
The Mistake: Operating without current arc flash studies, using outdated hazard labels, or failing to provide appropriate PPE for electrical work.
The Consequence: Fatal or life-altering injuries from arc flash incidents. Regulatory violations and massive liability exposure. Arc flash temperatures exceed 35,000°F—inadequate protection is catastrophic.
The Solution: Conduct arc flash hazard analysis per NFPA 70E requirements (every 5 years or after significant changes). Label all equipment with current hazard information. Provide appropriate PPE and ensure personnel understand arc flash boundaries.
10. Neglecting Emergency Power Systems
The Mistake: Assuming emergency generators and UPS systems will work when needed without regular testing under load. Exercising generators without load or for insufficient duration.
The Consequence: Emergency systems fail during actual power outages when you need them most. Diesel generators develop “wet stacking” from light-load operation, leading to failure.
The Solution: Test emergency systems under realistic load conditions quarterly. Exercise generators at 50-75% load minimum. Perform annual full-load tests. Maintain fuel quality and battery systems diligently.
Real-World Case Study: Prevention Through Proper Maintenance
A pharmaceutical manufacturing facility in Southern California implemented a comprehensive electrical preventative maintenance program after experiencing three unplanned shutdowns in six months. The program included:
- Monthly thermal scanning of all distribution equipment
- Quarterly load bank testing of emergency generators
- Annual transformer oil analysis and testing
- Systematic documentation in a CMMS
- Investment in certified technician training
Results after 18 months:
- Zero unplanned electrical failures
- 40% reduction in maintenance costs (elimination of emergency rates)
- Extended transformer life by identifying oil degradation early
- Passed insurance audit with commendation
- Improved production efficiency from reliable power
The key finding: A loose connection in the main switchgear, identified through thermal scanning, would have failed within 30 days. The resulting arc flash and fire would have caused $2.5 million in damage and potential injuries. The thermal scan cost $1,200 and took 2 hours.
Top 10 Maintenance Mistakes and Their Consequences:
- Deferring maintenance → Catastrophic failures without warning
- Inadequate lockout/tagout → Electrocution and arc flash injuries
- Skipping documentation → Compliance failures and lost liability defense
- Unqualified personnel → Safety violations and improper repairs
- Ignoring manufacturer specs → Voided warranties and premature failures
- Inconsistent intervals → Accelerated degradation and unexpected downtime
- Overlooking environment → Premature failures in harsh conditions
- Not addressing root causes → Recurring problems and escalating costs
- Inadequate arc flash assessment → Fatal injuries and massive liability
- Neglecting emergency systems → Failures during critical power outages
Avoiding these common mistakes transforms your electrical preventative maintenance program from a compliance checkbox into a strategic asset that protects your people, equipment, and operations.
Need expert support implementing a compliant maintenance program? Contact Delta Wye Electric at (877) 399-1940 for a facility assessment and customized maintenance plan.
Conclusion
Electrical preventative maintenance has evolved from optional best practice to mandatory requirement—and for good reason. A structured electrical preventative maintenance checklist protects your facility from the devastating costs of unplanned downtime, ensures compliance with NFPA 70B standards, and creates a foundation of reliability that supports continuous operations.
The key takeaways are clear: electrical preventative maintenance is now mandatory under NFPA 70B, not optional. A structured checklist approach ensures consistency and compliance while preventing costly failures that can reach $100,000 per hour in critical facilities. Proper documentation and qualified personnel are essential for both safety and regulatory compliance—shortcuts in either area create unacceptable risks.
With the right electrical preventative maintenance checklist and program in place, you transform electrical systems from potential liabilities into reliable assets that support continuous operations. The monthly, quarterly, and annual inspection schedules provided in this guide give you a proven framework. The equipment-specific procedures ensure nothing falls through the cracks. The compliance guidance protects you from regulatory penalties and insurance complications.
Most importantly, a comprehensive maintenance program shifts your facility from reactive firefighting to proactive control. You schedule maintenance during planned windows instead of scrambling during production peaks. You extend equipment lifecycles through proper care instead of replacing failed components. You prevent catastrophic failures instead of recovering from them.
The investment in systematic electrical preventative maintenance typically delivers 3:1 to 5:1 ROI within the first 2-3 years through prevented failures, extended equipment life, and improved reliability. But the real value extends beyond financial returns—it’s about protecting your people, maintaining operational continuity, and building a foundation of reliability that supports your business goals.
Need help implementing a compliant electrical preventative maintenance program? Contact Delta Wye Electric at (877) 399-1940 for a facility assessment and customized maintenance plan that meets NFPA 70B requirements. Our team has maintained critical electrical systems across California and Arizona for over 40 years, keeping facilities running safely and reliably through proactive maintenance programs designed for your specific needs.
For facilities requiring immediate electrical system evaluation, explore our comprehensive electrical services designed to identify and address potential failures before they impact operations. From arc flash studies to infrared inspections, power quality analysis to complete system design, Delta Wye Electric delivers the expertise and responsiveness that keeps your operations running.
Disclaimer: All electrical maintenance work must be performed by qualified personnel as defined by NFPA 70E. The procedures described in this guide are general recommendations—always consult equipment manufacturer instructions, applicable codes and standards, and local jurisdiction requirements. Facility-specific arc flash studies and coordination analysis are required before performing electrical work. When in doubt, consult certified electrical professionals.
