When machinery poses risks to operators, emergency stop circuits serve as the last line of defense—but only if they meet strict technical and regulatory requirements. Industrial facilities depend on emergency stop (E-stop) circuits to protect workers and equipment from hazardous situations. These critical safety systems must comply with international standards like ISO 13850, NFPA 79, and IEC 60204-1 while matching the specific risk levels and operational needs of each machine.
Understanding emergency stop circuit requirements starts with three essential elements: stop categories and their applications, performance level requirements based on risk assessment, and selecting and implementing compliant components. At Delta Wye Electric, our certified teams have designed and installed code-compliant emergency stop circuits for industrial facilities across the United States since 1980, working with manufacturers in aerospace, food processing, and automation. This guide breaks down the essential requirements for emergency stop circuits, from basic functional specifications to advanced implementation considerations.

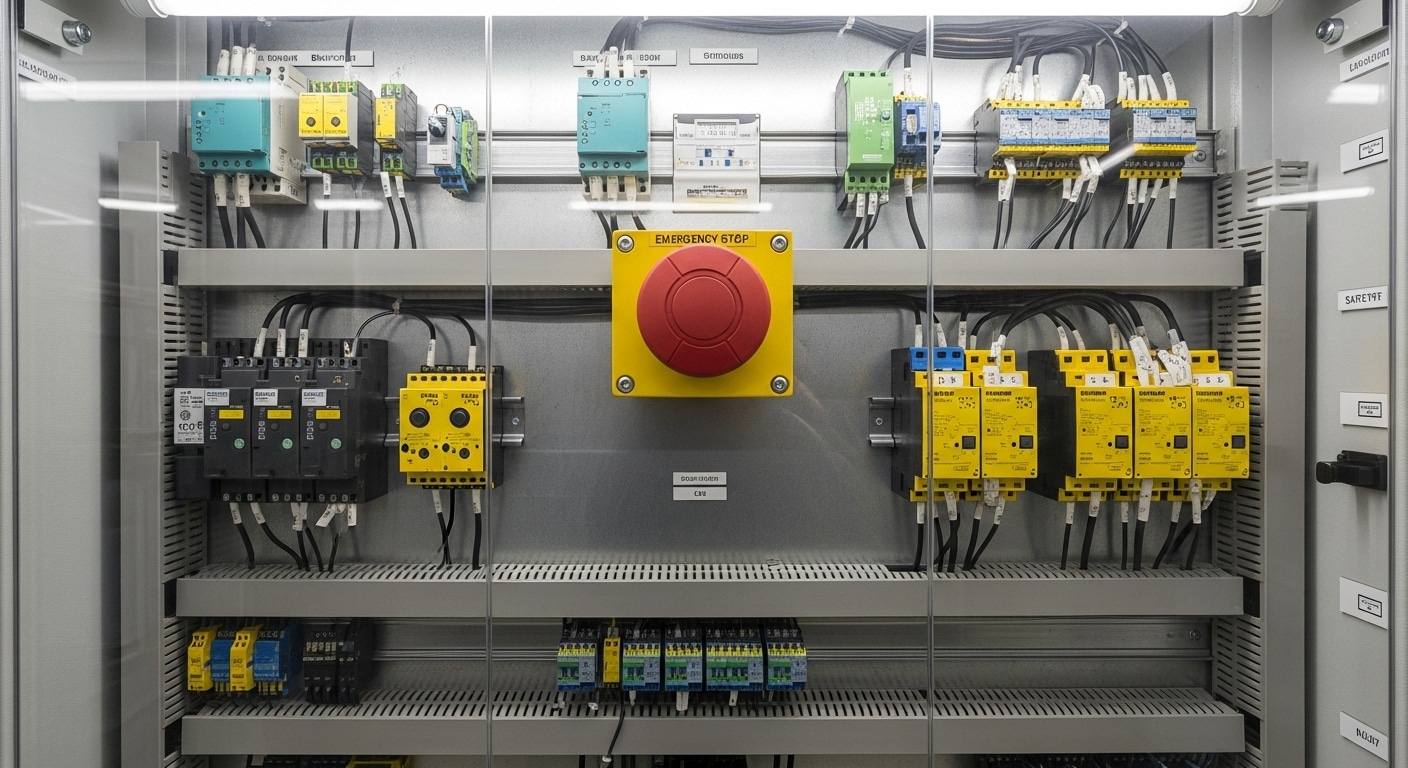

What Are Emergency Stop Circuit Requirements?
Emergency stop circuit requirements are the mandatory technical and functional specifications that ensure E-stop systems can immediately halt hazardous machine operations. These include proper component selection (mushroom-head buttons, safety relays), circuit design (fail-safe operation, redundancy), placement standards (accessible locations), and compliance with ISO 13850, NFPA 79, and IEC 60204-1.
Emergency stop circuit requirements define the technical specifications, component standards, and operational characteristics needed for safety systems to protect personnel and equipment. These requirements ensure circuits can reliably halt hazardous machine functions when activated. Every requirement serves a specific safety purpose—from the red mushroom-head button that operators instinctively recognize to the dual-channel architecture that maintains protection even if one component fails.
Core functional requirements include:
- Immediate hazard removal
- Prevention of unexpected restart
- Override of all other controls
- Fail-safe operation on component failure
- Clear visual identification (red button/yellow background)
- Direct mechanical action (positive opening contacts)
- Manual reset requirement
The standards governing these systems create a framework for consistent safety across industries. ISO 13850 provides the international baseline for emergency stop function and design. IEC 60204-1 covers electrical equipment requirements for machines. NFPA 79 addresses industrial machinery electrical standards in the United States. OSHA 1910.217 mandates specific requirements for mechanical power presses.
Common Questions About Emergency Stop Requirements
What standards govern emergency stop circuits? ISO 13850, IEC 60204-1, NFPA 79, and OSHA 1910.217 establish the primary requirements. Your specific application may require additional standards based on industry or location.
Do all machines require emergency stops? Risk assessment determines the need for emergency stops. Not every machine requires one—low-risk equipment may rely on normal stop controls.
Can emergency stops replace lockout/tagout? No, these serve different safety functions. Emergency stops address operational hazards while lockout/tagout protects during maintenance and servicing.
Stop Categories: Understanding Category 0 vs Category 1
Stop categories define how machines halt operations during emergency stops, with Category 0 providing immediate power removal and Category 1 allowing controlled deceleration before power disconnection. Selection depends on machine characteristics and safety requirements.
Stop Category 0 immediately removes power to machine actuators, causing an uncontrolled stop. Stop Category 1 maintains power temporarily to achieve controlled deceleration, then removes power once the machine reaches a safe state. Risk assessment determines which category provides optimal safety for each application.
| Stop Category Comparison | Category 0 | Category 1 |
|---|---|---|
| Power Removal | Immediate | After controlled stop |
| Stop Type | Uncontrolled | Controlled deceleration |
| Implementation | Simple | Complex |
| Equipment Impact | Risk of mechanical damage | Protects equipment |
| Response Time | Fastest | Slightly delayed |
| Circuit Complexity | Basic | Advanced |
Category 0 applications work best for:
- Small machines
- Low inertia systems
- Situations requiring immediate energy removal
- Simple mechanical devices
- Equipment without stored energy concerns
Category 1 applications suit:
- Large motors
- High inertia loads
- Systems requiring controlled positioning
- Process equipment needing orderly shutdown
- Machines where sudden stops create additional hazards
The choice between categories affects your entire circuit design. Category 0 circuits need only disconnect power through contactors or circuit breakers. Category 1 circuits require additional control logic, timing functions, and monitoring to ensure proper deceleration before power removal. Your industrial controls and automation system must coordinate these functions seamlessly.
Safety Relay Requirements and Circuit Design
Safety relays for emergency stop circuits must feature force-guided contacts, dual-channel monitoring, cross-fault detection, and automatic reset prevention. These specialized relays differ from standard relays by providing redundant switching paths and continuous self-diagnosis to detect internal faults.
Safety relays provide the core monitoring and switching functions in emergency stop circuits, ensuring fail-safe operation through redundancy and self-checking capabilities. Proper selection and wiring determine circuit reliability and compliance. Unlike standard control relays, safety relays include mechanically linked contacts that prevent simultaneous closure of normally open and normally closed contacts—a critical feature for detecting welded or stuck contacts.
| Safety Relay Selection Guide | PLc/SILcl1 | PLd/SILcl2 | PLe/SILcl3 |
|---|---|---|---|
| Channel Requirements | Single-channel possible | Dual-channel required | Dual-channel mandatory |
| Monitoring Level | Basic monitoring | Cross-fault detection | Advanced diagnostics |
| Test Intervals | Standard | Regular | Shorter intervals |
| Diagnostic Coverage | >60% | >90% | >99% |
| Typical Applications | Low-risk machines | Standard industrial | High-risk processes |
Critical wiring requirements ensure your safety relay functions properly:
- Dual-channel input connections
- Normally closed contact monitoring
- Separate reset circuit
- Feedback loop integration
- Short circuit protection
- Proper grounding and shielding
The wiring configuration directly impacts circuit reliability. Dual-channel designs provide redundancy—if one channel fails, the other maintains the safety function. Cross-monitoring between channels detects faults like short circuits between wiring. Your UL-certified panel building team must understand these nuances to create compliant installations.
Performance Level and Safety Integrity Requirements
Performance Level requirements for emergency stops typically range from PLc to PLe, determined by risk assessment per ISO 13849-1. Most industrial emergency stops require PLd, which demands dual-channel architecture with cross-monitoring and diagnostic coverage above 90%.
Performance Level (PL) and Safety Integrity Level (SIL) ratings determine the reliability requirements for emergency stop circuits based on risk assessment outcomes. Higher risk applications demand more robust circuit architectures and component specifications. These ratings quantify the probability of dangerous failure—helping you match safety system reliability to actual risk levels.
Risk assessment factors include:
- Severity of potential injury
- Frequency of hazard exposure
- Possibility of hazard avoidance
- Probability of hazardous event occurrence
Each factor influences the required performance level. A machine that could cause severe injury with frequent operator interaction needs higher reliability than equipment with minimal human exposure. The assessment process creates a documented rationale for your circuit design decisions.
Performance Level FAQs
What PL is required for emergency stops? Typically PLc to PLd, determined by risk assessment. Most industrial applications fall into PLd territory.
How do PL and SIL relate? Similar reliability concepts from different standards. PL comes from ISO 13849 while SIL derives from IEC 62061. Both quantify safety system reliability.
Can software-based systems meet PL requirements? Yes, with proper validation and architecture. Software requires specific development processes and testing to achieve required performance levels.
Component Selection and Placement Standards
Emergency stop buttons must be red mushroom-head or rope-pull type with yellow backgrounds, mounted between 0.6 and 1.7 meters high at all operator stations and access points. Components require IP65 environmental ratings minimum and positive-opening contact mechanisms per IEC 60947-5-5.
Proper component selection and strategic placement ensure emergency stops remain accessible and functional during hazardous situations. Standards specify physical characteristics, locations, and environmental ratings for all circuit elements. Every component choice affects system reliability—from the actuator style to the enclosure rating.
| Component Requirements | Specification | Standard Reference |
|---|---|---|
| Push Button | Red mushroom-head, 40mm minimum diameter | ISO 13850 |
| Background | Yellow background | IEC 60204-1 |
| Operation | Positive opening operation | IEC 60947-5-5 |
| Mounting Height | 0.6-1.7m range | ISO 13850 |
| Location | Within operator reach, clear of obstacles | NFPA 79 |
| Environmental | IP65 minimum rating | IEC 60529 |
| Temperature | Application-specific range | Per manufacturer |
| Vibration | Resistance per application | IEC 60068 |
Strategic placement considerations ensure operators can reach emergency stops when needed:
- Primary operator positions
- Machine access points
- Maintenance areas
- Emergency exit routes
- Remote operator stations
- Span of control limitations
The span of control concept limits how far an operator should move to reach an emergency stop. NFPA 79 suggests maximum distances based on operator mobility and machine hazards. Your placement strategy must account for normal operating positions and emergency scenarios where operators might approach from unusual angles.
Testing, Validation, and Maintenance Procedures
Regular testing and maintenance ensure emergency stop circuits maintain their safety functions throughout equipment lifecycles. Validation procedures verify initial compliance while periodic testing confirms continued reliability. Without proper maintenance, even well-designed circuits degrade over time.
Initial validation requirements establish baseline functionality:
- Functional testing all E-stops
- Response time measurement
- Fault simulation testing
- Documentation of results
- Integration with machine controls
- Reset function verification
Each test confirms a specific aspect of circuit operation. Functional tests verify basic operation. Response time measurements ensure stops occur within required timeframes. Fault simulation confirms the circuit responds appropriately to component failures.
| Maintenance Schedule | Daily | Monthly | Quarterly | Annual |
|---|---|---|---|---|
| Visual Inspection | ✓ | ✓ | ✓ | ✓ |
| Obstruction Check | ✓ | ✓ | ✓ | ✓ |
| Activation Test | ✓ | ✓ | ✓ | |
| Reset Verification | ✓ | ✓ | ✓ | |
| Full Functional Test | ✓ | ✓ | ||
| Wiring Inspection | ✓ | ✓ | ||
| Component Review | ✓ | |||
| System Validation | ✓ |
Documentation creates the audit trail proving ongoing compliance. Test records show when each emergency stop was verified. Validation reports confirm initial setup met requirements. Maintenance logs track component replacements and repairs.
Testing and Maintenance FAQs
How often should E-stops be tested? Monthly functional tests minimum. Higher-risk applications may require weekly or even daily testing.
What documentation is required? Test records, validation reports, and maintenance logs. Keep records for the life of the equipment or per regulatory requirements.
Who can perform validation? Qualified electrical personnel only. Validation requires understanding of safety standards and test procedures.
Your arc flash studies and compliance program should integrate with emergency stop testing. Both systems protect workers—coordinating their maintenance ensures comprehensive safety coverage.
Conclusion
Emergency stop circuits require careful design based on risk assessment and applicable standards. Stop category selection and performance level determine circuit architecture and component requirements. Regular testing and maintenance ensure continued safety function throughout equipment lifecycle.
Properly designed emergency stop circuits protect personnel while maintaining operational efficiency and regulatory compliance. The investment in proper design, quality components, and ongoing maintenance pays dividends through reduced injuries, avoided equipment damage, and sustained productivity.
Need expert assistance with emergency stop circuit design or installation? Contact Delta Wye Electric’s certified team for code-compliant industrial electrical solutions. Our experience across aerospace, food processing, and automation industries ensures your safety systems meet both regulatory requirements and operational needs.
For more information on industrial safety systems, explore our guides on arc flash compliance and control panel building. These interconnected safety systems work together to create comprehensive protection for your facility and workforce.
