Every minute of unplanned downtime costs industrial facilities an average of $22,000. Yet 82% of companies still experience at least one unplanned outage per year, with aging electrical equipment being the leading culprit. These aren’t just statistics—they represent real production losses, missed deadlines, and frustrated teams scrambling to recover from preventable failures.
An industrial electrical maintenance plan transforms your approach from reactive firefighting to proactive system management. It’s the difference between scrambling to fix failures at 2 AM and scheduling predictable maintenance during planned downtime. For facilities managers and maintenance teams juggling aging equipment, compliance requirements, and shrinking budgets, a formal electrical maintenance plan isn’t just best practice—it’s essential for survival.
This guide walks you through building a compliant maintenance plan that satisfies NFPA 70B requirements, details the exact components and schedules needed for different types of electrical equipment, and shows you how to calculate ROI and justify your maintenance budget to management. At Delta Wye Electric, we’ve developed and executed electrical maintenance plans for over 500 industrial facilities across 20 states, helping them achieve up to 40% reduction in unplanned downtime while extending equipment life by 30-50%.
You’ll discover everything needed to create a comprehensive industrial electrical maintenance plan from scratch, complete with templates, checklists, and real-world examples from facilities just like yours.
What Is an Industrial Electrical Maintenance Plan?
An industrial electrical maintenance plan is a documented strategy that systematically addresses the inspection, testing, and servicing of all electrical equipment within your facility. It transforms electrical maintenance from random repair work into a structured program that predicts problems, prevents failures, and extends equipment life.
The core components of an effective plan include:
- Asset inventory and criticality assessment of all electrical equipment
- Maintenance schedules tailored to equipment type and operating conditions
- Standard operating procedures for each maintenance task
- Safety protocols aligned with NFPA 70E requirements
- Documentation systems for tracking work and compliance
- Training programs for maintenance personnel
- Performance metrics to measure program effectiveness
Understanding the three maintenance approaches helps you build a balanced program:
| Maintenance Type | Definition | When Used | Cost Impact |
|---|---|---|---|
| Reactive | Fix equipment after failure | Emergency situations | Highest – 3-9x preventive costs |
| Preventive | Scheduled maintenance based on time/usage | Regular intervals | Moderate – predictable budgeting |
| Predictive | Condition-based maintenance using monitoring | Critical equipment | Lower long-term – requires upfront investment |
The landscape changed significantly in 2023 when NFPA 70B transitioned from a recommended practice to an enforceable standard. This shift means facilities must now maintain documented electrical maintenance programs that meet specific requirements:
- Written maintenance procedures for all electrical equipment
- Qualified personnel with documented training
- Regular inspection and testing schedules
- Comprehensive record-keeping systems
- Annual program reviews and updates
For facilities without formal plans, this isn’t just about avoiding citations—it’s about fundamentally improving how you manage electrical reliability. A well-designed plan reduces emergency calls, extends equipment life, and creates predictable maintenance budgets that executives appreciate.
Learn more about ensuring compliance with our electrical safety inspection services that align with your maintenance planning needs.
Why Your Facility Needs an Electrical Preventive Maintenance Plan Now
The business case for electrical preventive maintenance extends far beyond regulatory compliance. Manufacturing facilities implementing structured maintenance programs report average downtime reductions of 30-40%, with some achieving even better results through consistent execution.
Consider these industry-specific downtime costs:
- Food & Beverage: $30,000 per hour for medium-sized operations
- Pharmaceutical: $45,000 per hour plus potential batch losses
- Automotive: $50,000 per minute for assembly lines
- Semiconductor: $100,000+ per hour for fab facilities
One food processing facility we partnered with experienced quarterly shutdowns due to switchgear failures, each costing approximately $180,000 in lost production. After implementing a comprehensive electrical preventive maintenance program, they eliminated unplanned switchgear outages entirely, saving over $700,000 annually while extending equipment life by an estimated 10 years.
Equipment failure rates tell a compelling story. Facilities operating without preventive maintenance see failure rates 3-5 times higher than those with structured programs:
| Equipment Type | Failure Rate Without EPM | Failure Rate With EPM | Reduction |
|---|---|---|---|
| Switchgear | 12% annually | 2% annually | 83% |
| Transformers | 8% annually | 1.5% annually | 81% |
| Motor Control Centers | 15% annually | 4% annually | 73% |
| Distribution Panels | 10% annually | 3% annually | 70% |
Beyond the numbers, electrical preventive maintenance addresses critical safety concerns. Arc flash incidents cause approximately 400 workplace injuries annually, with many traced back to inadequate maintenance. Your maintenance plan becomes a cornerstone of workplace safety, protecting personnel while demonstrating commitment to operational excellence.
The regulatory landscape adds urgency. OSHA citations for electrical violations average $13,653 per incident, but the real cost comes from production interruptions during investigations and remediation. A documented maintenance program provides the paper trail needed to demonstrate due diligence and avoid costly penalties.
Insurance companies increasingly recognize the value of preventive maintenance, with many offering premium reductions of 5-15% for facilities with certified programs. Combined with energy savings from properly maintained equipment—typically 3-7% of electrical costs—the financial benefits compound quickly.
Take control of your facility’s electrical reliability with comprehensive industrial power monitoring that integrates seamlessly with your maintenance planning efforts.
7 Steps to Build Your Industrial Electrical Maintenance Plan
Creating an industrial electrical maintenance plan doesn’t require starting from scratch. Follow this proven seven-step process that we’ve refined through 500+ facility implementations:
Step 1: Conduct a Comprehensive Site Assessment
Begin by documenting every piece of electrical equipment in your facility. Create an asset inventory spreadsheet including:
- Equipment type, manufacturer, and model
- Installation date and expected lifespan
- Operating voltage and load capacity
- Criticality rating (1-5 scale based on production impact)
- Current condition assessment
- Maintenance history if available
Step 2: Perform Risk and Criticality Analysis
Prioritize equipment based on failure consequences:
- Critical: Causes immediate production shutdown
- Essential: Reduces capacity or quality
- Important: Creates inconvenience but maintains operation
- Standard: Minimal operational impact
Assign maintenance frequencies based on criticality levels, with critical equipment receiving the most frequent attention.
Step 3: Develop Equipment-Specific Maintenance Procedures
Create detailed procedures for each equipment type:
- Safety requirements and lockout/tagout procedures
- Tools and materials needed
- Step-by-step inspection process
- Testing procedures and acceptable ranges
- Common failure points to examine
- Documentation requirements
Step 4: Establish Maintenance Schedules
Build your preventive maintenance calendar:
- Daily: Visual inspections of critical equipment
- Monthly: Thermal scanning of high-load circuits
- Quarterly: Cleaning and torque checks
- Annual: Comprehensive testing and calibration
- 3-5 Years: Major overhauls and component replacement
Step 5: Define Roles and Responsibilities
Clearly assign ownership:
- Maintenance Manager: Program oversight and compliance
- Lead Electrician: Procedure development and training
- Certified Electricians: Task execution and documentation
- Operations Team: Equipment access coordination
- Safety Coordinator: Hazard assessment and PPE requirements
Step 6: Implement Documentation Systems
Establish record-keeping protocols:
- Digital maintenance logs with photos
- Testing results and trend analysis
- Work order tracking system
- Compliance documentation archive
- Equipment history database
Step 7: Launch with Training and Communication
Roll out your plan effectively:
- Train all maintenance personnel on new procedures
- Communicate schedules to operations teams
- Establish feedback mechanisms for continuous improvement
- Set KPIs and review schedules
- Celebrate early wins to build momentum
This framework scales from single-building operations to multi-site industrial complexes. The key is starting with critical equipment and expanding systematically as your team gains confidence with the new processes.
Enhance your maintenance capabilities with professional infrared electrical inspections that identify problems before they cause failures.
Critical Equipment Maintenance Schedules and Electrical Maintenance Checklist
Different electrical equipment requires varying maintenance frequencies based on operating conditions, criticality, and manufacturer recommendations. This electrical maintenance checklist provides baseline schedules that you can adjust for your specific facility needs:
Maintenance Frequency by Equipment Type
| Equipment | Daily | Monthly | Quarterly | Annual | 3-5 Year |
|---|---|---|---|---|---|
| Switchgear | Visual inspection | Thermal scan | Clean, inspect | Full testing | Overhaul |
| Transformers | Temperature check | Oil level | Connections | Oil analysis | Internal inspection |
| MCCs | Status lights | Heat check | Torque test | Calibration | Component replacement |
| Panels | Visual check | Load balance | Clean/tighten | IR scan | Breaker testing |
| Motors >50HP | Vibration | Temperature | Alignment | Insulation test | Bearing replacement |
| UPS Systems | LED status | Battery voltage | Load test | Full discharge | Battery replacement |
| Generators | Fuel level | Test run | Load bank | Full service | Major overhaul |
Daily Electrical Maintenance Checklist Tasks:
- Check panel indicator lights and alarms
- Verify normal equipment sounds and vibrations
- Monitor temperature gauges and displays
- Inspect for unusual odors or visible damage
- Confirm proper ventilation and cooling
- Document any anomalies for follow-up
Monthly Tasks:

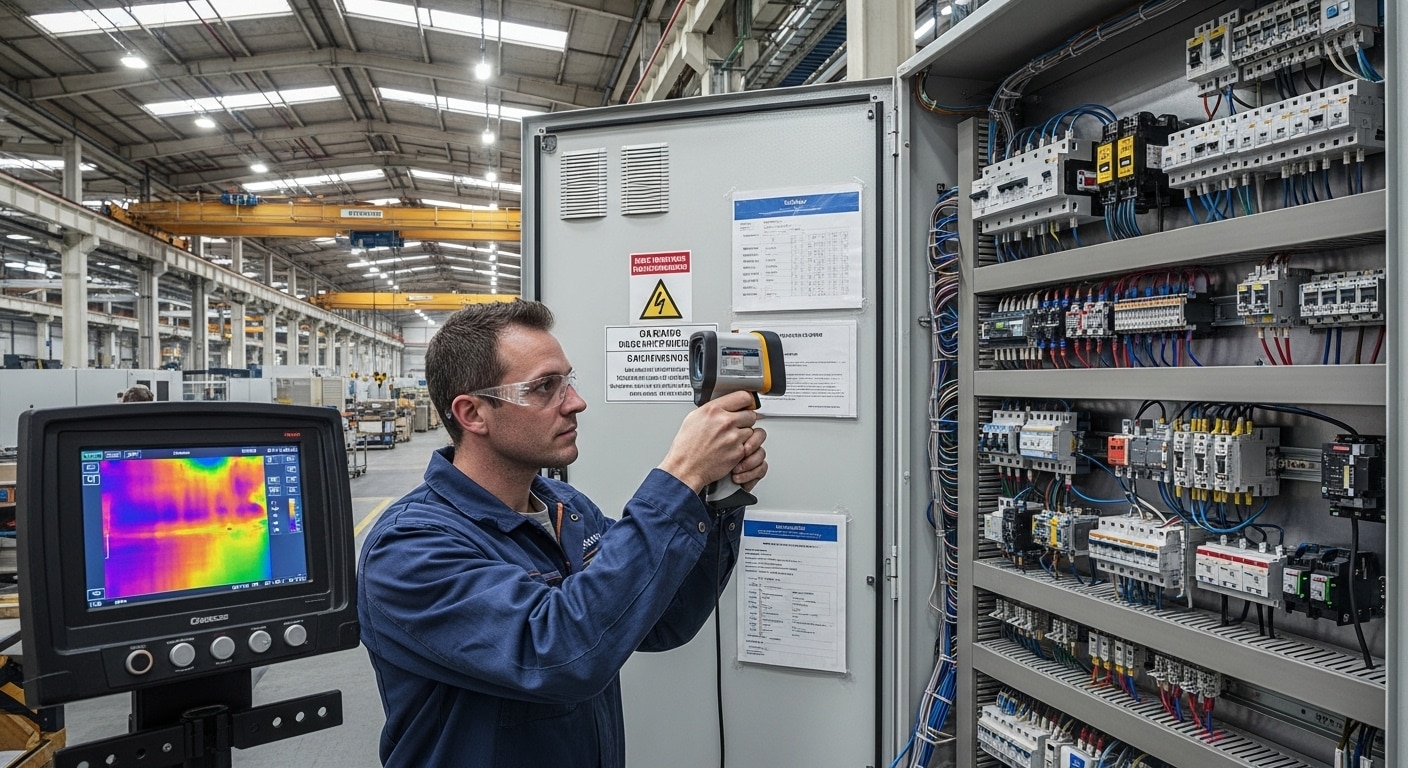

- Perform infrared thermal scanning on critical circuits
- Test emergency lighting and exit signs
- Verify ground fault protection operation
- Check transformer oil levels and temperatures
- Inspect cable tray and conduit systems
- Review power quality monitoring data
Annual Comprehensive Tasks:
- Complete insulation resistance testing
- Perform circuit breaker trip testing
- Conduct power factor analysis
- Test protective relay coordination
- Verify grounding system integrity
- Update single-line drawings
- Review and update maintenance procedures
Your electrical maintenance checklist should also address environmental factors. Equipment in harsh conditions—high humidity, temperature extremes, or corrosive atmospheres—requires more frequent attention. For example, panels in food processing areas exposed to washdowns need quarterly gasket inspections and annual seal replacements.
Documentation proves critical for compliance and continuous improvement. Each completed checklist should include:
- Date and time of inspection
- Technician name and certification level
- Specific readings and measurements
- Photos of any concerns identified
- Corrective actions taken or recommended
- Supervisor review and sign-off
Modern facilities increasingly use digital checklists on tablets or smartphones, enabling real-time data capture, automatic scheduling, and trend analysis. This transition from paper to digital typically reduces documentation time by 30% while improving accuracy and accessibility.
NFPA 70B Electrical Maintenance Standard and OSHA Compliance Requirements
The 2023 transition of NFPA 70B from a recommended practice to an enforceable standard fundamentally changed electrical maintenance requirements for industrial facilities. Understanding these requirements ensures your maintenance plan meets both safety and legal obligations.
NFPA 70B Mandatory Requirements:
Electrical Maintenance Program Components:
- Written electrical safety program document
- Documented maintenance procedures for each equipment type
- Qualified worker training and certification records
- Regular inspection and testing schedules
- Condition assessment protocols
- Record retention system (minimum 3 years)
Implementation Timeline:
- January 2024: Standard becomes enforceable
- July 2024: Full compliance expected for new installations
- January 2025: Existing facilities must show documented progress
- January 2026: Complete implementation required
Compliance Checklist for NFPA 70B:
✓ Program Documentation
- Written maintenance program policy
- Equipment-specific procedures
- Safety protocols and PPE requirements
- Emergency response procedures
✓ Personnel Requirements
- Qualified worker definitions
- Training records for all maintenance staff
- Certification documentation
- Annual competency assessments
✓ Testing and Inspection
- Manufacturer’s recommended intervals
- Industry standard testing procedures
- Acceptance criteria for each test
- Trending and analysis protocols
✓ Record Keeping
- Equipment inventory database
- Maintenance history logs
- Test results and trending data
- Incident and near-miss reports
OSHA Integration:
OSHA’s electrical standards (29 CFR 1910 Subpart S) work in conjunction with NFPA 70B requirements:
- 1910.333: Selection and use of work practices
- 1910.335: Safeguards for personnel protection
- 1910.147: Lockout/tagout procedures
- 1910.269: Electric power generation and distribution
Your electrical maintenance standard documentation must demonstrate compliance with both OSHA and NFPA 70B requirements. This includes:
- Hazard assessments for all maintenance tasks
- Job safety analyses with specific PPE requirements
- Incident energy calculations updated annually
- Arc flash labeling on all equipment
- Safety training records including annual refreshers
Audit preparation becomes straightforward with proper documentation. Maintain separate binders or digital folders for:
- Program policies and procedures
- Training and certification records
- Equipment maintenance histories
- Testing results and reports
- Incident investigations and corrective actions
Remember that compliance isn’t just about avoiding penalties—it’s about protecting your workforce. Facilities with robust NFPA 70B-compliant programs report 60% fewer electrical incidents and 45% reduction in injury severity.
Compliance Note: Specific requirements vary by jurisdiction and facility type. Professional consultation is recommended to ensure full regulatory compliance for your unique operational environment.
Partner with certified professionals through our electrical safety training programs to ensure your team meets all qualification requirements.
Calculating ROI and Justifying Your Electrical Maintenance Plan ROI
Presenting the financial case for your electrical maintenance plan ROI requires concrete numbers that resonate with executive decision-makers. Here’s how to calculate and communicate the value of preventive maintenance investment.
Basic ROI Calculation Formula:
ROI = (Gain from Investment – Cost of Investment) / Cost of Investment × 100
For electrical maintenance programs:
- Gain = Avoided downtime costs + Energy savings + Equipment life extension + Insurance reductions
- Cost = Labor + Materials + Training + Software + Contractor services
Real-World Example Calculation:
Medium-Sized Food Processing Facility (Annual Basis):
Costs:
- Maintenance labor (2 technicians): $140,000
- Materials and supplies: $25,000
- CMMS software: $8,000
- Training and certifications: $10,000
- Contract services (IR scanning, testing): $15,000
- Total Annual Investment: $198,000
Gains:
- Avoided downtime (4 incidents × 6 hours × $30,000/hr): $720,000
- Energy savings (5% reduction on $400,000): $20,000
- Extended equipment life (defer $200,000 replacement): $40,000
- Insurance premium reduction (10%): $12,000
- Total Annual Gains: $792,000
ROI = ($792,000 – $198,000) / $198,000 × 100 = 300%
Maintenance Cost vs. Failure Cost Over Time:
The true value emerges when comparing preventive maintenance costs against reactive failure expenses over equipment lifetime:
| Year | Without Maintenance Plan | With Maintenance Plan | Cumulative Savings |
|---|---|---|---|
| 1 | $450,000 | $198,000 | $252,000 |
| 2 | $495,000 | $205,000 | $542,000 |
| 3 | $680,000* | $212,000 | $1,010,000 |
| 4 | $520,000 | $219,000 | $1,311,000 |
| 5 | $850,000* | $226,000 | $1,935,000 |
*Major failure years
Building Your Business Case Presentation:
1. Lead with Risk Mitigation:
“Our facility faces $22,000 per minute in downtime costs. This maintenance plan reduces failure probability by 70%.”
2. Show Quick Wins:
“Within 90 days, we’ll identify and correct issues that currently waste $5,000 monthly in energy costs.”
3. Highlight Compliance Benefits:
“Avoiding a single OSHA violation saves $13,653 plus investigation downtime.”
4. Present Conservative Estimates:
“These projections assume only 30% downtime reduction, though industry average is 40%.”
5. Offer Phased Implementation:
“Starting with critical equipment delivers 60% of benefits at 40% of full program cost.”
ROI Calculator Inputs:
Create a customized calculator including:
- Your specific downtime costs per hour
- Number of historical failure incidents
- Current maintenance spending
- Energy costs and potential savings
- Equipment replacement values
- Insurance premium amounts
The most compelling argument often comes from competitor benchmarking. Facilities with mature maintenance programs show:
- 30-40% reduction in maintenance costs
- 45-55% reduction in downtime
- 20-30% extension in equipment life
- 15-25% improvement in overall equipment effectiveness (OEE)
Track and report these metrics quarterly to maintain executive support and justify program expansion. Focus on trending improvements rather than absolute values, showing continuous return on the maintenance investment.
Maximize your ROI by exploring additional energy consumption reduction strategies that complement your maintenance program.
CMMS Software and Technology for Electrical Maintenance Management
Computerized Maintenance Management System (CMMS) software transforms electrical maintenance from reactive chaos to proactive control. Modern platforms streamline scheduling, documentation, and analysis while ensuring nothing falls through the cracks.
Top 5 CMMS Platforms for Industrial Electrical Maintenance:
| Platform | Best For | Key Features | Annual Cost | Implementation Time |
|---|---|---|---|---|
| Fiix | Mid-size facilities | Mobile-first, easy adoption | $5,000-15,000 | 4-6 weeks |
| eMaint | Multi-site operations | Robust reporting, predictive tools | $8,000-25,000 | 6-8 weeks |
| Maintenance Connection | Heavy industry | Compliance focus, asset hierarchy | $10,000-30,000 | 8-12 weeks |
| UpKeep | Small to mid-size | User-friendly, quick setup | $3,000-12,000 | 2-4 weeks |
| IBM Maximo | Enterprise | Full EAM capabilities, integration | $25,000-100,000+ | 3-6 months |
Essential CMMS Software Features for Electrical Maintenance:
Work Order Management:
- Automated scheduling based on meter readings or calendar
- Mobile access for field technicians
- Priority assignment based on criticality
- Parts and materials tracking
- Time and cost capture
Preventive Maintenance Scheduling:
- Template library for common tasks
- Automatic work order generation
- Resource balancing and conflict resolution
- Compliance deadline tracking
- Route optimization for inspection rounds
Asset Management:
- Hierarchical equipment structure
- Complete maintenance history
- Document storage (manuals, drawings)
- Warranty tracking
- QR code/barcode integration
Reporting and Analytics:
- MTBF/MTTR calculations
- Cost analysis by equipment or area
- Compliance status dashboards
- Trend analysis and predictive insights
- KPI scorecards
Predictive Maintenance Technologies:
Beyond CMMS software, emerging technologies enhance your ability to prevent failures:
Thermal Imaging Systems:
- Fixed infrared cameras on critical equipment
- Automatic temperature trending and alerts
- Integration with CMMS for work order creation
- ROI: Typically 6-12 months
- Cost: $5,000-50,000 depending on coverage
Vibration Analysis:
- Continuous monitoring for rotating equipment
- Frequency analysis to identify specific problems
- Wireless sensors with cloud analytics
- Early detection of bearing and alignment issues
- Cost: $1,000-5,000 per monitoring point
Power Quality Monitoring:
- Real-time voltage, current, and harmonic analysis
- Automatic event capture and notification
- Energy consumption tracking
- Power factor optimization opportunities
- Cost: $2,000-10,000 per monitoring location
Online Partial Discharge Testing:
- Early detection of insulation breakdown
- Continuous monitoring without shutdown
- Trending analysis for remaining useful life
- Critical for medium-voltage equipment
- Cost: $15,000-50,000 per installation
Implementation Best Practices:
- Start Small: Pilot CMMS software with critical equipment before full rollout
- Invest in Training: Budget 20% of software cost for comprehensive training
- Clean Your Data: Accurate asset information is essential for success
- Integrate Gradually: Connect existing systems one at a time
- Measure Results: Track KPIs from day one to demonstrate value
The combination of CMMS software and predictive technologies typically reduces maintenance costs by 25-30% while improving equipment availability by 20%. Facilities using integrated systems report 50% reduction in emergency work orders and 35% improvement in schedule compliance.
Learn how industrial automation protocols can enhance your maintenance management technology stack.
Common Mistakes to Avoid When Implementing Your Electrical Maintenance Plan
Even well-intentioned electrical maintenance plan implementation efforts can fail without proper planning and execution. Here are the top mistakes facilities make and how to avoid them:
Top 10 Implementation Mistakes and Solutions:
| Mistake | Impact | Solution |
|---|---|---|
| Starting too ambitious | Overwhelming staff, poor adoption | Begin with critical equipment, expand gradually |
| Inadequate training | Improper execution, safety risks | Invest in comprehensive initial and ongoing training |
| Poor documentation | Compliance issues, knowledge loss | Standardize forms, implement digital systems |
| Ignoring feedback | Declining morale, missed improvements | Create feedback loops, act on suggestions |
| Underestimating resources | Incomplete tasks, deferred maintenance | Realistic budgeting, phased implementation |
| No performance metrics | Unable to show value, lose support | Define KPIs upfront, report regularly |
| Skipping change management | Resistance, sabotage | Communicate benefits, involve stakeholders early |
| Neglecting safety | Incidents, regulatory violations | Safety-first culture, regular training |
| Rigid scheduling | Unnecessary downtime, conflicts | Flexible scheduling, operations coordination |
| No continuous improvement | Stagnant program, declining effectiveness | Regular reviews, benchmark against peers |
Overcoming Resource Constraints:
Limited Budget:
- Prioritize based on criticality and ROI
- Leverage equipment warranties for testing
- Partner with vendors for training resources
- Apply for utility rebates and incentives
- Phase implementation over multiple budget cycles
Staff Shortage:
- Cross-train operations personnel for basic tasks
- Outsource specialized testing initially
- Implement apprentice programs
- Use contractor partners strategically
- Automate scheduling and documentation
Time Constraints:
- Combine maintenance with scheduled downtime
- Perform online testing where possible
- Batch similar tasks for efficiency
- Use predictive maintenance to extend intervals
- Negotiate maintenance windows with operations
Managing Organizational Resistance:
Resistance often stems from fear of change or past negative experiences. Address concerns directly:
“We’ve always done it this way”
- Acknowledge existing expertise
- Position as enhancement, not replacement
- Share success stories from similar facilities
- Start with willing early adopters
“This will slow production”
- Calculate downtime costs clearly
- Show scheduling flexibility
- Demonstrate quick wins
- Coordinate closely with operations
“It’s too complicated”
- Simplify initial procedures
- Provide hands-on training
- Create visual aids and job aids
- Celebrate small successes
Expert Advice from Field Experience:
“The biggest mistake I see is facilities trying to implement a Fortune 500 maintenance program with a team of five. Start where you are, use what you have, do what you can. A simple program executed consistently beats a perfect program that never gets done.” – Senior Maintenance Manager, 25 years experience
Solutions Matrix for Common Challenges:
Problem: Inconsistent execution
Solution: Create detailed SOPs, implement buddy system, regular audits
Problem: Lost institutional knowledge
Solution: Document everything, video procedures, mentorship programs
Problem: Competing priorities
Solution: Clear prioritization matrix, dedicated maintenance windows, management support
Problem: Budget cuts mid-implementation
Solution: Focus on highest ROI activities, demonstrate quick wins, seek alternative funding
Problem: Technology adoption struggles
Solution: Phased rollout, champion users, extensive training, vendor support
The key to successful implementation is recognizing that perfection isn’t the goal—progress is. Facilities that maintain momentum, even through challenges, ultimately develop robust programs that deliver lasting value.
For expert guidance navigating implementation challenges, explore our electrical solutions for maintenance teams designed specifically for industrial environments.
Conclusion
A formal industrial electrical maintenance plan isn’t optional anymore—it’s essential for operational survival and regulatory compliance. The evidence is overwhelming: facilities with structured maintenance programs reduce unplanned downtime by 30-40% while extending equipment life significantly. With NFPA 70B now mandatory, documented maintenance programs have shifted from best practice to legal requirement.
The 7-step process outlined here provides a clear, actionable framework that scales from small facilities to large industrial complexes. By starting with critical equipment assessment and building systematically through documentation, scheduling, and continuous improvement, you create a maintenance program that delivers measurable results. The templates, checklists, and real-world examples provided give you everything needed to move forward confidently.
Remember these key takeaways as you develop your plan: every minute invested in preventive maintenance saves hours of emergency response, proper documentation protects you legally and operationally, and the ROI calculation examples demonstrate returns of 300% or higher are achievable and common.
Implementing an industrial electrical maintenance plan isn’t just about compliance or cost savings—it’s about taking control of your facility’s electrical reliability. With the templates, checklists, and step-by-step guidance provided here, you have everything needed to move from reactive chaos to proactive control.
Ready to implement a professional electrical maintenance plan but need expert support? Delta Wye’s certified electricians and maintenance specialists can assess your facility, develop a custom maintenance plan template, and provide ongoing maintenance services. Contact us at (877) 399-1940 for a free consultation and facility assessment.
For facilities looking to enhance their maintenance capabilities further, explore our comprehensive guide on industrial power monitoring systems or learn about our professional infrared inspection services that identify problems before they become failures.
