When specifying electrical distribution equipment for your next project, choosing between a panelboard and switchboard isn’t just about capacity—it’s about code compliance, installation costs, and long-term operational efficiency. Both panelboards and switchboards serve as critical distribution points in electrical systems, but their differences in construction, capacity, and governing standards make each suitable for distinctly different applications. Making the wrong choice can lead to failed inspections, costly rework, and potential safety hazards.
You’re about to learn the seven fundamental differences between panelboards and switchboards, the specific NEC and UL standards that govern each system, and clear selection criteria based on your project requirements. Drawing from Delta Wye Electric’s 40+ years of industrial electrical experience, we’ve installed and maintained hundreds of both systems across manufacturing facilities, data centers, and critical infrastructure projects. Let’s start with understanding exactly what each system is designed to do.
What Is a Panelboard? Definition and Applications
A panelboard is a wall-mounted or surface-mounted electrical distribution assembly designed for light to medium-duty applications. These compact units distribute power from a main source to multiple branch circuits, typically handling up to 1,200 amps. Governed by UL 67 standards, panelboards are the workhorses you’ll find in commercial buildings, small manufacturing operations, and anywhere power needs to be divided into smaller, manageable circuits.
Think of a panelboard as the distribution hub that takes incoming power and splits it into dozens of individual circuits. Each circuit is protected by its own overcurrent device—usually a circuit breaker—allowing you to control and protect specific loads independently.
Common Panelboard Types:
- Lighting panelboards – Primarily serve lighting loads with high circuit counts
- Appliance panelboards – Feed receptacle and small equipment loads
- Power panelboards – Handle larger motor and equipment loads
- General-purpose panelboards – Combine lighting and power distribution in one assembly
Panelboards excel in applications where space is limited and loads don’t exceed 1,200 amps. You’ll typically find them mounted directly to walls in electrical rooms, mechanical spaces, or even in hallways where code permits. Their front-only access design makes them ideal for tight spaces where rear clearance isn’t available.
Typical Panelboard Amperage Ratings:
| Main Bus Rating | Common Applications | Typical Voltage |
|---|---|---|
| 100A | Small office spaces, retail | 208V, 240V |
| 225A | Medium commercial buildings | 208V, 480V |
| 400A | Large commercial, light industrial | 208V, 480V |
| 600A | Industrial facilities, data centers | 480V, 600V |
| 800A | Heavy commercial, industrial | 480V, 600V |
| 1,200A | Maximum panelboard capacity | 480V, 600V |
When you need reliable power distribution for branch circuits and your total load stays under 1,200 amps, a properly specified panelboard delivers code-compliant performance at a reasonable cost. For guidance on selecting and building code-compliant panelboards for your facility, explore our UL-Certified Panel Building services.
What Is a Switchboard? Understanding Heavy-Duty Distribution

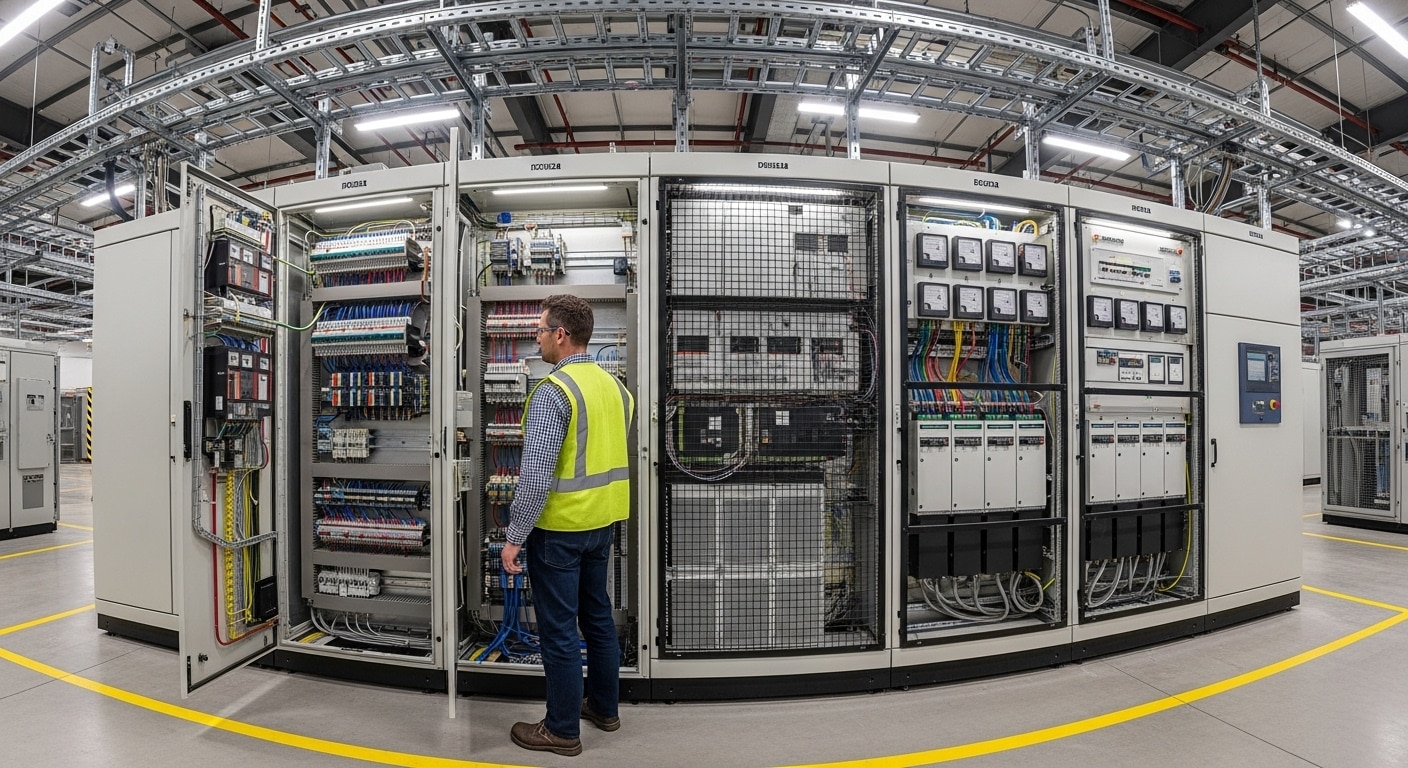

A switchboard is a freestanding electrical distribution system designed for high-capacity applications, handling 1,200 to 5,000+ amps. Built to UL 891 standards, switchboards serve as the primary distribution point in your facility—receiving utility power and feeding multiple downstream panelboards, motor control centers, and other large loads.
Unlike panelboards that mount to walls, switchboards stand on the floor and require access from both front and rear. This substantial construction allows for larger bus bars, more robust components, and the ability to handle the massive currents required by industrial operations.
Switchboards sit at the top of your electrical distribution hierarchy. Utility power enters the building, flows through the main service entrance, and lands at the switchboard. From there, the switchboard distributes power to multiple panelboards throughout your facility, creating a branching network that delivers electricity where it’s needed.
Key Switchboard Construction Features:
- Front and rear access – Allows maintenance and modifications from both sides
- Removable sections – Individual compartments can be isolated and serviced
- Heavy-duty bus bars – Copper or aluminum conductors rated for high continuous current
- Instrument panels – Built-in metering, monitoring, and control capabilities
- Modular construction – Sections can be added or reconfigured as needs change
- Floor-mounted design – Requires dedicated floor space and structural support
Switchboards are essential when your facility’s electrical demand exceeds what a panelboard can safely handle. They’re the backbone of Industrial Power Distribution systems in manufacturing plants, hospitals, data centers, and any operation where power reliability is non-negotiable.
In a typical industrial facility, you’ll find one or more main switchboards near the utility service entrance, with feeder cables running to panelboards distributed throughout the plant. This hierarchical approach provides flexibility, safety, and the ability to isolate sections of your facility for maintenance without shutting down the entire operation.
Panelboard vs Switchboard: 7 Critical Differences
Understanding the seven key differences between panelboards and switchboards will help you specify the right equipment for your application, ensuring code compliance and optimal performance while avoiding costly mistakes. These differences aren’t just technical details—they directly impact your project’s budget, installation timeline, and long-term maintenance requirements.
Comprehensive Comparison: Panelboards vs Switchboards
| Feature | Panelboard (UL 67) | Switchboard (UL 891) |
|---|---|---|
| Amperage Capacity | Up to 1,200 amps | 1,200 to 5,000+ amps |
| Mounting Method | Wall-mounted or surface-mounted | Freestanding, floor-mounted |
| Access Requirements | Front access only | Front and rear access required |
| Governing Standard | UL 67, NEC Article 408 | UL 891, NEC Article 408 |
| Typical Cost Range | Baseline ($2,000-$15,000) | 2-3x panelboard cost ($10,000-$75,000+) |
| Space Requirements | Minimal (wall space + front clearance) | Substantial (floor space + front/rear clearances) |
| Common Applications | Branch circuit distribution, commercial buildings | Main service entrance, industrial facilities |
Difference #1: Amperage Capacity and Load Handling
The most fundamental difference lies in capacity. Panelboards max out at 1,200 amps, while switchboards start at 1,200 amps and scale up to 5,000 amps or higher. This isn’t just a numbers game—it reflects fundamentally different construction methods and component ratings.
When your facility’s electrical load analysis shows a requirement exceeding 1,200 amps, a switchboard becomes mandatory. There’s no workaround, no creative solution—the physics and code requirements demand the robust construction that only a switchboard provides.
Difference #2: Physical Construction and Mounting
Panelboards are compact, enclosed assemblies designed to hang on walls or mount to structural supports. Their trim covers provide a finished appearance suitable for commercial environments. Switchboards are industrial-grade, freestanding cabinets that require dedicated floor space and substantial structural support to handle their weight and the mechanical forces generated by high fault currents.
This construction difference cascades into every aspect of installation. Panelboards can be installed by a small crew in a few hours. Switchboards require rigging equipment, precise positioning, and often multi-day installation timelines.
Difference #3: Access and Maintenance Requirements
Panelboards provide front-only access, which simplifies installation in tight spaces but limits maintenance flexibility. Switchboards require both front and rear access, as specified by NEC Article 408.5, creating minimum clearance requirements that significantly impact your electrical room layout.
Per NEC 110.26, switchboards require working space of at least 3 feet in front and sufficient rear access for maintenance—typically another 3 feet. This dual-access requirement doubles the floor space commitment compared to a wall-mounted panelboard.
Difference #4: UL Standards and Testing Requirements
UL 67 governs panelboards, focusing on branch circuit distribution and overcurrent protection for loads up to 1,200 amps. UL 891 governs switchboards, with more rigorous testing for high short-circuit currents, temperature rise under sustained load, and mechanical strength under fault conditions.
These different standards reflect the different roles each system plays. Panelboards distribute power to final branch circuits. Switchboards handle the massive currents coming from utility services and must withstand the extreme forces generated during fault conditions.
Difference #5: Installation Complexity and Timeline
Installing a panelboard typically takes 4-8 hours for a skilled crew—mount the enclosure, land the feeders, install the branch breakers, and verify operation. Switchboard installation requires 2-5 days depending on size—rigging into position, aligning sections, landing heavy feeders, terminating multiple outgoing circuits, and extensive testing.
This timeline difference directly impacts your project schedule and labor costs. For guidance on professional installation that minimizes downtime, review our Equipment Installation & Relocation capabilities.
Difference #6: Cost Implications
Material costs for switchboards run 2-3 times higher than comparable panelboards, reflecting the heavier construction, larger components, and more extensive testing required for UL 891 certification. But the total cost gap widens further when you factor in installation labor, floor space requirements, and supporting infrastructure.
A 1,200-amp panelboard might cost $8,000-$12,000 installed. A 1,200-amp switchboard could run $20,000-$35,000 installed, plus the cost of dedicated electrical room space and enhanced structural support.
Difference #7: Monitoring and Control Capabilities
Modern switchboards often include integrated metering, monitoring, and control systems that provide real-time visibility into your facility’s power consumption and quality. While you can add metering to panelboards, switchboards are designed from the ground up to accommodate sophisticated monitoring equipment.
This built-in capability becomes critical in facilities where power quality, load management, and energy monitoring drive operational decisions. The space and bus configuration in switchboards make it straightforward to add current transformers, voltage sensors, and communication modules.
According to NEC Article 408.30, panelboards require overcurrent protection on the supply side when the sum of branch circuit overcurrent devices exceeds the panelboard’s main rating. This requirement shapes how you design and protect your distribution system, particularly when comparing panelboards versus switchboards for specific applications.
For comprehensive electrical system design that optimizes equipment selection and ensures code compliance, explore our Electrical Engineering & Design services.
UL Standards and NEC Requirements: What You Must Know
The distinction between UL 67 (panelboards) and UL 891 (switchboards) isn’t just regulatory paperwork—these standards define construction requirements, testing procedures, and installation parameters that directly impact your project’s compliance and safety. Understanding these standards helps you specify equipment correctly and avoid costly mistakes during plan review and inspection.
Key UL 67 Requirements for Panelboards:
- Maximum ampere rating – 1,200 amps continuous
- Overcurrent protection – Must comply with NEC Article 408.36 for protection coordination
- Bus bar construction – Adequate for rated current with tested temperature rise limits
- Short-circuit current rating – Must be marked and adequate for available fault current
- Enclosure ratings – NEMA 1 (indoor) or NEMA 3R (outdoor) construction
- Wire bending space – Adequate space per NEC Table 312.6(A)
UL 67 testing subjects panelboards to thermal cycling, short-circuit withstand testing, and dielectric strength verification. These tests ensure the panelboard can handle its rated load continuously and survive fault conditions without becoming a fire or shock hazard.
Key UL 891 Requirements for Switchboards:
- Ampere ratings – From 1,200 amps to 5,000+ amps
- Short-circuit testing – More rigorous than UL 67, with higher test currents
- Temperature rise limits – Strict limits on conductor and bus bar heating under sustained load
- Mechanical strength – Must withstand electromagnetic forces during fault conditions
- Access provisions – Both front and rear access with adequate working space
- Main bus construction – Heavy-duty copper or aluminum rated for continuous duty
Switchboards undergo extensive testing including 100,000+ amp short-circuit tests that simulate worst-case fault scenarios. This testing validates that the bus bars, support structures, and enclosure can contain the explosive forces generated during electrical faults.
NEC Article 408 Requirements:
NEC Article 408 governs both panelboards and switchboards, with specific subsections for each. Article 408.30 addresses panelboard protection requirements, mandating that “panelboards shall be protected by an overcurrent protective device having a rating not greater than that of the panelboard.” This requirement ensures proper coordination and prevents overloading the panelboard’s main bus.
For switchboards, NEC Article 408.5 specifies clearance requirements: “Working space shall be provided in front of switchboards with exposed live parts on the front and shall not be less than specified in 110.26.” This typically means 3 feet of clear working space in front, with additional rear access as needed for the specific installation.
Critical Code Compliance Points:
- Available fault current – Must be calculated and equipment must have adequate interrupting rating
- Working clearances – NEC 110.26 specifies minimum distances based on voltage and equipment type
- Overcurrent protection coordination – Upstream and downstream devices must coordinate properly
- Conductor sizing – Feeders and branch circuits must comply with NEC Article 310
- Grounding and bonding – Equipment grounding per NEC Article 250
In our field experience installing both panelboards and switchboards across hundreds of facilities, we’ve seen projects delayed or rejected during inspection because equipment wasn’t properly matched to available fault current or clearance requirements weren’t met. These standards exist for good reasons—they prevent equipment failure, fire hazards, and electrical accidents.
Important Compliance Note: Local codes may include amendments or additional requirements beyond the NEC. Always verify specific requirements with your authority having jurisdiction (AHJ) before finalizing equipment specifications. Professional consultation is recommended for all electrical distribution system designs to ensure complete code compliance and optimal performance.
Cost Analysis: Panelboard vs Switchboard Investment
While switchboards require 2-3 times higher initial investment than panelboards, the total cost of ownership depends on your specific amperage requirements, available space, and installation complexity. Understanding the complete cost picture helps you make informed decisions and budget accurately for your electrical distribution needs.
Detailed Cost Breakdown:
| Cost Component | Panelboard (1,200A) | Switchboard (1,200A) | Switchboard (2,500A) |
|---|---|---|---|
| Equipment | $6,000-$10,000 | $15,000-$25,000 | $35,000-$55,000 |
| Installation Labor | $2,000-$4,000 | $5,000-$10,000 | $10,000-$18,000 |
| Support Infrastructure | $500-$1,500 | $2,000-$5,000 | $4,000-$8,000 |
| Commissioning/Testing | $500-$1,000 | $1,500-$3,000 | $2,500-$5,000 |
| Annual Maintenance | $300-$600 | $600-$1,200 | $1,000-$2,000 |
| Total First Year | $9,300-$17,100 | $24,100-$44,200 | $52,500-$88,000 |
The equipment cost difference reflects the fundamental construction differences. Switchboards use heavier gauge materials, larger bus bars, more robust insulators, and undergo more extensive testing. These aren’t arbitrary markup—they’re necessary components for handling high currents safely.
Installation labor costs scale with complexity. A panelboard installation might take 6-8 man-hours, while a comparable switchboard requires 20-40 man-hours when you account for rigging, positioning, section alignment, bus bar connections, and testing. Larger switchboards can require 60-100 man-hours or more.
Cost Per Amp Analysis:
When you calculate cost per amp of capacity, an interesting pattern emerges. At lower amperages, panelboards offer better value. But as capacity increases, switchboards become more cost-effective per amp:
- 400A Panelboard: $15-$25 per amp
- 800A Panelboard: $12-$18 per amp
- 1,200A Panelboard: $10-$15 per amp
- 1,200A Switchboard: $20-$35 per amp
- 2,500A Switchboard: $18-$30 per amp
- 4,000A Switchboard: $15-$25 per amp
This cost curve explains why you’ll rarely see multiple smaller switchboards when one larger unit could serve the same function. The economies of scale favor consolidating capacity into fewer, larger switchboards.
Hidden Cost Considerations:
Beyond the obvious equipment and installation costs, several factors impact total ownership cost:
Space costs – Switchboards require dedicated electrical room space. In high-value facilities, the floor space consumed by a switchboard (plus required clearances) represents significant opportunity cost. A 2,500-amp switchboard might occupy 40-60 square feet including clearances.
Flexibility value – Switchboards offer superior flexibility for future expansion and reconfiguration. The modular construction allows you to add sections or modify distribution patterns without replacing the entire assembly. This flexibility has real value in dynamic facilities.
Downtime impact – In critical facilities, the reliability difference between properly specified equipment and marginal equipment can be measured in dollars per minute of downtime. The robust construction of switchboards provides additional safety margin in high-reliability applications.
Maintenance accessibility – The dual-access design of switchboards makes maintenance faster and safer, potentially reducing labor costs over the equipment’s 30-40 year service life. This advantage compounds over decades of operation.
For a comprehensive evaluation of electrical distribution options for your specific facility, explore our full range of Services or contact our engineering team for a detailed cost-benefit analysis.
Selection Guide: Which System Is Right for Your Project?
Your choice between a panelboard and switchboard depends on five critical factors: total connected load, available space, access requirements, future expansion plans, and specific industry standards. Getting this decision right the first time prevents costly rework and ensures your electrical distribution system serves your facility reliably for decades.
Primary Selection Criteria:
1. Total Amperage Requirement
This is your first decision point. Calculate your facility’s total connected load plus a safety margin for future growth (typically 25-30%). If the total exceeds 1,200 amps, you need a switchboard. Period. There’s no code-compliant way to use a panelboard above its rated capacity.
2. Available Space and Layout
Measure your electrical room dimensions and consider access requirements. Can you provide the 3-foot front and rear clearances required for a switchboard? If space is severely constrained and your load is under 1,200 amps, a wall-mounted panelboard might be your only practical option.
3. Service Position in Electrical Hierarchy
Is this equipment receiving utility power directly (service entrance) or being fed from upstream equipment? Service entrance equipment almost always requires switchboard construction for loads above 600 amps. Downstream distribution can use panelboards for branch circuit distribution.
4. Future Expansion Requirements
Planning to add production lines, increase capacity, or modify your facility? Switchboards offer superior flexibility for future modifications. Their modular construction allows you to add sections, reconfigure distribution, or upgrade components without replacing the entire assembly.
5. Monitoring and Control Needs
Do you need real-time power monitoring, load management, or integration with building management systems? Switchboards provide built-in capability for sophisticated monitoring equipment. While you can add metering to panelboards, switchboards are designed for it.
Industry-Specific Requirements:
Healthcare Facilities
Hospitals and medical centers typically require switchboards for main distribution due to high capacity needs and critical power requirements. NEC Article 517 imposes additional requirements for healthcare electrical systems, often driving switchboard selection even at lower amperages.
Data Centers
Data centers almost universally use switchboards for main distribution, with panelboards serving individual equipment rows or zones. The high power density, redundancy requirements, and monitoring needs make switchboards the clear choice for primary distribution.
Manufacturing Facilities
Industrial plants use both systems in a hierarchical arrangement—switchboards for main distribution from utility services, panelboards for branch circuits serving specific production areas. The ratio depends on facility size and load concentration.
Commercial Buildings
Office buildings, retail centers, and commercial properties typically use panelboards for tenant distribution, with switchboards reserved for main building services in larger facilities. The 1,200-amp threshold usually determines the dividing line.
Decision Framework:
Start with these questions:
- Is my total load above 1,200 amps? → If yes, you need a switchboard
- Am I receiving utility power directly? → If yes and above 600A, typically requires switchboard
- Do I have space for floor-mounted equipment with front/rear access? → If no, panelboard may be required
- Will I need to expand or modify distribution in the next 10 years? → If yes, switchboard offers better flexibility
- Do I need integrated power monitoring and control? → If yes, switchboard is strongly preferred
For detailed guidance on selecting the right electrical distribution equipment for your specific application, explore the Industries We Serve to see how we’ve solved similar challenges in your sector.
Installation and Maintenance Considerations
Panelboards typically mount directly to walls with front-only access, while switchboards require dedicated floor space with front and rear clearances per NEC 110.26, significantly impacting your electrical room layout and long-term maintenance accessibility. These installation differences affect everything from project timelines to life-cycle maintenance costs.
Space Requirements and Clearances:
Panelboard Installation Requirements:
- Wall space – Adequate structural support for equipment weight (200-600 lbs)
- Front clearance – Minimum 3 feet per NEC 110.26(A)
- Height positioning – Typically 5-6 feet above finished floor to top of enclosure
- Lateral clearance – Sufficient space for door swing (typically 90 degrees)
- Mounting surface – Structural wall or dedicated support frame
Switchboard Installation Requirements:
- Floor space – Equipment footprint plus clearances (typically 8-15 square feet per section)
- Front working space – Minimum 3 feet, more if voltage exceeds 600V
- Rear access space – Minimum 3 feet for maintenance access
- Floor loading – Adequate structural support (2,000-10,000+ lbs depending on size)
- Seismic bracing – Required in seismic zones per ASCE 7
- Overhead clearance – Minimum 6.5 feet per NEC 110.26(E)
These clearance requirements aren’t suggestions—they’re code mandates enforced during inspection. We’ve seen projects where inadequate space planning forced equipment relocation or room modifications after delivery, adding weeks to the schedule and thousands to the budget.
Installation Timeline Comparison:
Typical Panelboard Installation (400A):
- Equipment delivery and staging: 0.5 days
- Mounting and positioning: 2-4 hours
- Feeder termination: 2-3 hours
- Branch circuit installation: 4-8 hours
- Testing and commissioning: 1-2 hours
- Total: 1-2 days
Typical Switchboard Installation (2,500A):
- Equipment delivery and staging: 1 day
- Rigging and positioning: 4-8 hours
- Section alignment and connection: 4-6 hours
- Main bus termination: 3-5 hours
- Feeder circuit installation: 8-16 hours
- Control wiring and integration: 4-8 hours
- Testing and commissioning: 4-8 hours
- Total: 3-5 days
The timeline difference reflects not just equipment size but the precision required. Switchboard sections must align perfectly for proper bus bar connection. Torque specifications on main bus connections are critical. Testing protocols are more extensive.
Maintenance Frequency and Requirements:
| Maintenance Task | Panelboard | Switchboard |
|---|---|---|
| Visual Inspection | Annually | Semi-annually |
| Infrared Scanning | Every 2-3 years | Annually |
| Torque Verification | Every 5 years | Every 3 years |
| Contact Cleaning | As needed | Every 3-5 years |
| Breaker Testing | Every 5-10 years | Every 3-5 years |
| Complete Overhaul | 20-25 years | 25-30 years |
Switchboards require more frequent maintenance because they handle higher currents and operate closer to their thermal limits. The consequences of failure are also more severe—a switchboard failure can shut down an entire facility.
Common Failure Points and Prevention:
Panelboard Issues:
- Overheating connections – Usually from loose terminations or overloaded circuits
- Breaker failure – Normal wear, typically after 10,000-15,000 operations
- Bus bar corrosion – Environmental factors in harsh conditions
- Neutral bar overload – Common in facilities with nonlinear loads
Switchboard Issues:
- Bus bar expansion/contraction – Thermal cycling causes connection loosening
- Insulator tracking – High voltage stress in humid environments
- Main breaker wear – Heavy-duty breakers require periodic maintenance
- Control circuit failure – More complex control systems need attention
Preventive maintenance catches these issues before they cause failures. Regular infrared scanning identifies hot spots. Periodic torque verification ensures connections remain tight. These simple steps prevent the majority of distribution equipment failures.
For professional installation that ensures proper clearances, code compliance, and optimal performance, review our Equipment Installation & Relocation capabilities and maintenance programs.
Real-World Applications: When to Use Each System
From Delta Wye’s field experience, panelboards excel in office buildings and retail spaces under 1,200 amps, while switchboards are essential for industrial facilities, data centers, and any application exceeding 1,200 amps or requiring extensive monitoring capabilities. Let’s examine specific scenarios where we’ve specified and installed each system type.
Panelboard Applications:
Commercial Office Building (75,000 sq ft)
A three-story office building required electrical distribution for lighting, HVAC, and receptacle loads. We installed a main switchboard at the utility entrance (2,000 amps) feeding five 400-amp panelboards distributed throughout the building—one per floor plus dedicated panels for HVAC and data rooms. This arrangement provided convenient circuit access on each floor while centralizing main distribution.
Retail Shopping Center (15 tenant spaces)
Each tenant space received a dedicated 225-400 amp panelboard fed from a main switchboard. The wall-mounted panelboards fit in compact electrical closets, providing each tenant independent control of their circuits while maintaining centralized metering at the main switchboard.
Small Manufacturing Facility (20,000 sq ft)
A light assembly operation with primarily 120/208V loads used panelboards for all distribution. Total facility load was 800 amps, well within panelboard capabilities. The wall-mounted design preserved valuable floor space for production equipment.
Switchboard Applications:
Food Processing Plant (150,000 sq ft)
A large food processing facility required 4,000 amps at 480V for production equipment, refrigeration, and HVAC systems. We installed a main switchboard with integrated power monitoring feeding six downstream panelboards and three motor control centers. The switchboard’s monitoring capabilities provided real-time visibility into power quality and consumption patterns critical for production planning.
Data Center (Tier III, 5MW capacity)
A mission-critical data center used redundant 3,000-amp switchboards in an A+B power configuration. Each switchboard fed multiple 1,200-amp panelboards serving equipment rows. The switchboard construction provided the reliability, monitoring capability, and maintenance accessibility required for 99.982% uptime requirements.
Pharmaceutical Manufacturing (cGMP facility)
A regulated pharmaceutical facility required extensive power monitoring and documentation for FDA compliance. Switchboards with integrated metering and data logging provided the required visibility and record-keeping capability. The dual-access design allowed maintenance during production shifts without entering clean areas.
Automotive Assembly Plant (500,000 sq ft)
A major automotive assembly facility used multiple 5,000-amp switchboards for primary distribution, feeding dozens of panelboards and motor control centers throughout the plant. The modular switchboard construction allowed phased installation as production lines were added, with capacity reserved for future expansion.
Hybrid Applications:
Most large facilities use both panelboards and switchboards in a coordinated hierarchy. The switchboard serves as the main distribution point receiving utility power, with panelboards providing branch circuit distribution in specific areas. This approach optimizes cost, provides flexibility, and ensures proper protection coordination.
Selection Patterns by Industry:
- Healthcare: Switchboards for main distribution, panelboards for patient care areas
- Education: Switchboards in main buildings >50,000 sq ft, panelboards for smaller buildings
- Hospitality: Switchboards for hotels >100 rooms, panelboards for smaller properties
- Industrial: Switchboards for facilities >1,200A total load, panelboards for branch distribution
- Commercial: Panelboards for most applications, switchboards when load exceeds 1,200A
Lessons from the Field:
In 40+ years of electrical contracting, we’ve learned that proper equipment selection prevents problems. Undersizing equipment causes overheating, nuisance trips, and premature failure. Oversizing wastes money and space. The right choice matches equipment capabilities to actual requirements with appropriate safety margin.
We’ve also learned that code compliance isn’t optional. Inspectors will reject installations that don’t meet NEC clearance requirements, don’t have adequate fault current ratings, or lack proper overcurrent protection. Getting it right the first time saves time and money.
Professional Guidance Matters:
Every facility is unique. Load calculations, voltage requirements, fault current levels, and space constraints all factor into the optimal solution. Professional electrical engineering ensures your distribution system meets code requirements, operates reliably, and accommodates future growth.
For expert guidance on electrical distribution equipment selection for your specific application, Contact Us for a complimentary consultation with our engineering team.
Conclusion: Making the Right Choice for Your Facility
Understanding the critical differences between panelboards and switchboards ensures your electrical distribution system meets code requirements, operates efficiently, and provides the reliability your facility demands. Let’s recap the essential points that will guide your selection decision.
Key Takeaways:
- Panelboards (governed by UL 67) serve applications up to 1,200 amps with wall-mounted, front-access designs ideal for branch circuit distribution in commercial and light industrial facilities
- Switchboards (governed by UL 891) handle 1,200-5,000+ amps with freestanding, dual-access construction required for main service entrance and heavy industrial applications
- Your selection directly impacts initial costs (switchboards cost 2-3x more), installation requirements (floor space vs. wall space), and long-term maintenance accessibility (dual access vs. front-only)
The amperage requirement is your primary decision point—loads exceeding 1,200 amps mandate switchboard construction. But even below that threshold, factors like monitoring needs, future expansion plans, and space constraints influence the optimal choice.
NEC Article 408 and the governing UL standards (UL 67 for panelboards, UL 891 for switchboards) aren’t arbitrary regulations—they define construction and installation requirements that ensure safety, reliability, and proper performance under normal and fault conditions. Code-compliant installations protect your facility, your personnel, and your investment.
From Delta Wye’s field experience installing electrical distribution equipment across hundreds of facilities, we’ve seen how proper equipment selection prevents problems before they start. The right panelboard or switchboard, properly installed and maintained, delivers decades of reliable service. The wrong choice leads to overheating, nuisance trips, failed inspections, and costly rework.
Your Next Step:
Need expert guidance selecting between a panelboard and switchboard for your specific application? Contact Delta Wye Electric’s engineering team for a complimentary system evaluation and code-compliant recommendations. We’ll analyze your load requirements, review your space constraints, and recommend the optimal solution that balances performance, cost, and long-term reliability.
Our 40+ years of industrial electrical experience means we’ve solved these challenges hundreds of times across manufacturing, healthcare, data centers, and critical infrastructure. We’ll help you get it right the first time.
Professional Disclaimer: Electrical distribution system selection must account for specific site conditions, local code amendments, available fault current, and facility-specific requirements. This guide provides general information based on current NEC requirements and industry standards. All electrical work should be designed by qualified engineers and installed by licensed electrical contractors in accordance with applicable codes and standards. Local codes may vary from the NEC, and professional consultation is recommended for all electrical distribution system designs.
