Every second of industrial downtime costs money—and at the heart of preventing those losses lies a properly designed power distribution system that transforms raw utility power into the precise, reliable electricity your equipment demands.
Power distribution systems form the critical backbone of industrial facilities, managing the complex journey of electrical power from utility connections through transformers, switchgear, and panels to deliver safe, stable electricity to every machine and system. Understanding these systems isn’t just technical knowledge—it’s essential for maintaining operational continuity, ensuring safety, and optimizing energy costs.
This comprehensive guide explores:
- Core components and their specific functions in industrial environments
- Voltage transformation principles and equipment selection criteria
- Design considerations for reliability, scalability, and code compliance
- Protection schemes that prevent cascading failures
- Real-world examples from food processing, manufacturing, and logistics
With over 45 years designing and installing power distribution systems across more than 20 states, Delta Wye Electric has seen firsthand how proper system design prevents downtime, reduces energy costs, and supports facility growth.
Let’s explore the fundamental components that make modern power distribution systems work—and how to design them for maximum reliability and efficiency.
What Is a Power Distribution System?
A power distribution system is the complete network of electrical components that receives high-voltage electricity from the utility and transforms, controls, and delivers it safely to end-use equipment. Think of it as your facility’s electrical circulatory system—taking raw power from the utility connection and converting it into the precise voltages and capacities your equipment needs to operate reliably.
The system begins at your service entrance, where utility power first enters your facility. From there, it flows through a carefully orchestrated series of transformers, switchgear, panelboards, and protective devices before reaching individual machines, lighting systems, and control circuits. Each component plays a critical role in maintaining power quality, protecting equipment, and ensuring safe operation.
Industrial power distribution systems serve several essential functions:
- Voltage transformation – Converting utility-supplied voltages (often 13.8kV or 4.16kV) down to usable levels like 480V, 208V, or 120V
- Protection and isolation – Safeguarding equipment and personnel through circuit breakers, fuses, and ground fault protection
- Load distribution – Dividing electrical capacity among different areas and equipment types
- Power quality management – Maintaining stable voltage and frequency while minimizing harmonics
- Monitoring and control – Providing visibility into system performance and enabling remote operation
The financial impact of poorly designed power distribution cannot be overstated. According to recent industry data, unplanned downtime costs manufacturers an average of $50,000 per hour, with some industries like automotive and semiconductors facing losses exceeding $100,000 per hour. A single arc flash incident can result in millions in equipment damage, medical costs, and regulatory fines—not to mention the human cost of injuries.
Proper power distribution design directly impacts your bottom line through reduced energy costs, minimized downtime, and extended equipment life. When engineered correctly, these systems become invisible assets that support production day after day without interruption.
Learn more about our Industrial Electrical Construction services →
Core Components of Industrial Power Distribution
Every power distribution system relies on specific components working in harmony to deliver reliable electricity. Understanding how these components function—both individually and as an integrated system—helps facility teams make informed decisions about upgrades, maintenance, and expansions.
Transformers: The Voltage Converters
Transformers serve as the workhorses of electrical distribution, stepping voltage down from utility levels to voltages your equipment can use. Industrial facilities typically employ several transformer types:
Liquid-filled transformers handle the initial voltage reduction from utility service (13.8kV or 4.16kV) down to primary distribution voltage (typically 480V). These units offer excellent efficiency and overload capacity, making them ideal for heavy industrial loads.
Dry-type transformers provide secondary voltage transformation within facilities, converting 480V to 208V or 120V for lighting, receptacles, and control circuits. Their air-cooled design eliminates oil handling requirements, simplifying installation in indoor environments.
Specialty transformers like K-rated units handle high harmonic loads from variable frequency drives and electronic equipment, while isolation transformers protect sensitive control systems from power quality issues.
Switchgear: The Traffic Controllers
Switchgear serves as the central hub for power distribution, housing circuit breakers, metering, and control equipment in a single assembly. Modern switchgear provides:
| Component Type | Voltage Rating | Typical Applications | Key Features |
|---|---|---|---|
| Low-voltage switchgear | Up to 600V | Main distribution, large motor control | Draw-out breakers, integrated metering |
| Metal-clad switchgear | 5kV-15kV | Primary distribution, utility interface | Compartmentalized design, arc-resistant options |
| Motor control centers | 480V/600V | Multiple motor loads | Modular construction, intelligent starters |
Panelboards and Distribution Equipment
Panelboards divide power from switchgear into smaller branch circuits serving specific areas or equipment groups. Industrial facilities typically use:
- Power panels for high-capacity distribution to production equipment
- Lighting panels dedicated to illumination circuits
- Emergency panels connected to backup power systems
- Sub-distribution panels for localized load centers
Protection Devices: The Safety Net
Modern power distribution systems incorporate multiple layers of protection:
Circuit breakers provide overload and short-circuit protection with the ability to be reset after tripping. Electronic trip units offer precise coordination and monitoring capabilities.
Fuses deliver reliable overcurrent protection at lower cost, though they require replacement after operation. Current-limiting fuses protect against catastrophic fault damage.
Surge protective devices (SPDs) guard against voltage spikes from lightning and switching transients, preventing equipment damage and production interruptions.
Ground fault protection detects current leakage that could indicate equipment problems or shock hazards, automatically disconnecting power before injuries occur.
A recent case at a food processing facility demonstrates proper component selection in action. The facility needed reliable 480V power for new packaging lines while maintaining 208V for existing equipment. We specified:
- 2500kVA liquid-filled transformer for utility service
- Low-voltage switchgear with draw-out breakers for flexibility
- Separate motor control center for new packaging equipment
- K-rated transformers for variable frequency drives
- Coordinated protection scheme preventing nuisance trips
The result: zero unplanned downtime in two years of operation, with built-in capacity for 30% future growth.
Explore our complete Power Distribution Panel Guide →
Voltage Levels and Transformation in Distribution Systems
Voltage transformation is the cornerstone of efficient power distribution, reducing transmission losses while providing appropriate voltages for different equipment types. Understanding how voltage levels work throughout your facility helps optimize energy efficiency and equipment performance.
Standard Industrial Voltage Levels
Industrial facilities typically utilize several voltage levels, each serving specific purposes:
| Voltage Level | Common Uses | Advantages |
|---|---|---|
| 480V 3-phase | Large motors, production equipment | High power density, reduced conductor size |
| 208V 3-phase | Smaller motors, HVAC equipment | Compatible with single-phase loads |
| 120/240V single-phase | Lighting, receptacles, controls | Standard for general use |
| 24V DC | Control circuits, sensors | Safe for personnel contact |
Higher voltages mean lower current for the same power level, reducing conductor costs and power losses. For example, a 100HP motor at 480V draws 124 amps, while the same motor at 208V would draw 286 amps—requiring significantly larger conductors and generating more heat loss.
Transformer Selection and Sizing
Proper transformer sizing requires careful analysis of connected loads, demand factors, and future growth. The basic calculation starts with:
Step 1: Calculate total connected load in kVA
Step 2: Apply demand factors based on load diversity
Step 3: Add power factor correction if needed
Step 4: Include 20-25% growth margin
For example, consider a manufacturing facility with:
- 500kW of motor loads at 0.85 power factor = 588kVA
- 100kW of lighting at 0.95 power factor = 105kVA
- 75kW of office loads at 0.90 power factor = 83kVA
- Total connected load = 776kVA
Applying an 80% demand factor (not all loads run simultaneously):
- Design load = 776kVA × 0.80 = 621kVA
- With 25% growth margin = 776kVA
- Select 1000kVA transformer for adequate capacity
Efficiency Considerations
Modern transformers achieve 98-99% efficiency at full load, but efficiency drops significantly at light loading. The Department of Energy’s 2016 efficiency standards mandate minimum efficiency levels:
- Liquid-filled transformers: 98.0-99.5% depending on size
- Dry-type transformers: 97.0-98.9% depending on size
Energy-efficient transformers may cost 15-20% more initially but typically pay back through energy savings within 2-3 years. Over a 30-year lifespan, an efficient 1000kVA transformer can save over $100,000 in energy costs compared to standard efficiency units.
Power Quality Through Transformation
Transformers also play a crucial role in power quality management. Delta-wye transformer connections provide:
- Harmonic mitigation through phase shifting
- Ground fault current paths for safety
- Voltage stability under unbalanced loads
K-rated transformers handle the additional heating from harmonic currents generated by variable frequency drives, LED lighting, and computer equipment. Specifying K-13 rated units for areas with high electronic loads prevents overheating and premature failure.
Proper grounding of transformer secondaries per NEC Article 250 ensures personnel safety and allows protective devices to operate correctly during ground faults. The grounding electrode system must provide a low-impedance path for fault current while minimizing touch and step potentials.
Calculate your transformer requirements with our Watts to Amps Calculator →
Protection and Control Schemes
Effective protection schemes prevent equipment damage, ensure personnel safety, and minimize downtime during fault conditions. Modern electrical protection systems use coordinated devices that isolate problems quickly while maintaining power to unaffected areas.
Selective Coordination: The Art of Isolation
Selective coordination ensures that only the protective device nearest a fault opens, leaving upstream devices closed to maintain power elsewhere. This requires careful analysis of time-current curves for every protective device in the system.
Consider a typical coordination scenario:
- Main breaker: 3000A with long-time and short-time delays
- Feeder breaker: 800A with shorter delays
- Branch breaker: 100A with instantaneous trip
During a fault on the branch circuit, the 100A breaker trips within 0.01 seconds, while the feeder and main breakers remain closed. This preserves power to other branches and prevents facility-wide outages.
Coordination studies per NEC Article 240.12 are mandatory for healthcare facilities and recommended for all industrial installations. These studies must account for:
- Available fault current at each point
- Protective device characteristics
- Cable impedances and motor contributions
- Arc flash energy calculations
Arc Flash Mitigation Strategies
Arc flash incidents pose severe risks to personnel and equipment. NFPA 70E requires facilities to implement arc flash risk assessments and mitigation measures. Modern protection schemes reduce arc flash energy through:
Zone selective interlocking (ZSI) allows upstream breakers to trip instantaneously when downstream breakers detect faults, reducing arc duration from seconds to milliseconds.
Maintenance mode settings temporarily reduce trip times during maintenance work when personnel are exposed to energized equipment.
Arc flash reduction switches on main breakers enable instantaneous tripping during maintenance without affecting coordination during normal operation.
Remote racking systems allow breaker operation from outside the arc flash boundary, protecting personnel during switching operations.
A recent implementation at an aerospace manufacturing facility reduced arc flash incident energy from 25 cal/cm² to under 8 cal/cm² through:
- Installing breakers with ZSI capability
- Implementing maintenance mode procedures
- Upgrading to current-limiting fuses on motor circuits
- Installing remote monitoring to reduce live troubleshooting
Ground Fault Protection Systems
Ground fault protection prevents electrical fires and protects personnel from shock hazards. NEC Article 230.95 requires ground fault protection for:
- Services over 150V to ground with disconnects rated 1000A or more
- Feeder circuits as specified in Article 215.10
- Equipment per Article 230.95 requirements
Industrial ground fault systems typically use zero-sequence current transformers that detect imbalances between phase currents. Settings must balance protection with avoiding nuisance trips:
- Pickup: 20-30% of circuit rating
- Time delay: 0.1-0.5 seconds for coordination
Surge Protection Deployment
Surge protective devices (SPDs) protect sensitive equipment from voltage transients. IEEE C62.41.2 categorizes locations and exposures:
Category C (Service Entrance): Highest exposure, requires Type 1 SPDs rated for 20kA or higher
Category B (Distribution): Medium exposure, Type 2 SPDs at panelboards
Category A (Utilization): Equipment level, Type 3 SPDs for sensitive electronics
Cascaded SPD installation provides defense in depth, with each stage reducing surge energy. Proper installation per manufacturer guidelines and NEC Article 285 ensures effective protection—including conductor length limits and appropriate overcurrent protection.
Learn more about What Causes Circuit Breakers to Trip →
Design Principles for Reliable Power Distribution
Successful power distribution design balances current needs with future growth while maintaining code compliance and operational efficiency. A well-designed system operates invisibly—supporting production without interruption while adapting to changing requirements.
Load Analysis and Demand Calculations
Accurate load analysis forms the foundation of reliable system design. NEC Article 220 provides calculation methods, but industrial facilities require deeper analysis:
Connected Load Inventory: Document every motor, heater, lighting circuit, and receptacle load. Include nameplate data, operating schedules, and future equipment plans.
Demand Factor Application: Not all loads operate simultaneously. NEC Table 220.42 provides general lighting demand factors, while motor loads use factors from Table 430.22. However, facility-specific operating patterns often justify different factors based on:
- Production schedules and shift patterns
- Seasonal variations in HVAC loads
- Process batch timing and sequencing
- Standby equipment rotation
Diversity Analysis: Large facilities benefit from diversity between different areas. A pharmaceutical plant might show:
- Production areas: 85% demand factor
- Warehouse: 60% demand factor
- Office spaces: 70% demand factor
- Combined diversity: 75% of individual peaks
Redundancy and Reliability Planning
Critical facilities require redundancy to maintain operations during equipment failures or maintenance. Common redundancy schemes include:
N+1 Configuration: One spare unit for N operating units. For transformers, this might mean three 1000kVA units where two can carry full load.
2N Configuration: Complete duplication of the power path. Data centers often use this approach with separate utility feeds, transformers, and distribution systems.
Distributed Redundancy: Multiple smaller units instead of single large components. Six 500kVA transformers might provide better reliability than two 1500kVA units.
Reliability modeling using IEEE Standard 493 helps quantify improvement benefits. For example:
- Single transformer: 99.9% availability (8.76 hours downtime/year)
- N+1 transformers: 99.99% availability (0.88 hours downtime/year)
- 2N system: 99.999% availability (0.09 hours downtime/year)
Future Expansion Provisions
Planning for growth prevents costly retrofits and production disruptions. Design strategies include:
| Design Element | Initial Provision | Expansion Capability |
|---|---|---|
| Conduit sizing | 40% fill maximum | Allows additional conductors |
| Switchgear | Empty breaker spaces | 25-30% spare positions |
| Transformer capacity | 75% initial loading | 25% growth margin |
| Panel schedules | Distributed loads | Consolidation opportunities |
Modular designs facilitate phased expansion. Motor control centers with empty buckets, switchgear with space for additional sections, and transformers with fan cooling for capacity increases all support growth without replacement.
Code Compliance Framework
NEC compliance forms the minimum standard, but industrial facilities often face additional requirements:
NEC Critical Articles for Industrial Power Distribution:
- Article 210: Branch Circuits
- Article 215: Feeders
- Article 230: Services
- Article 240: Overcurrent Protection
- Article 250: Grounding and Bonding
- Article 430: Motors
- Article 450: Transformers
Industry-Specific Standards:
- Food facilities: USDA, FDA, 3-A Sanitary Standards
- Pharmaceutical: cGMP, USP requirements
- Hazardous locations: NEC Articles 500-516
- Healthcare: NFPA 99, NEC Article 517
Local Variations: Many jurisdictions modify NEC requirements. California’s Title 24 adds energy efficiency mandates. Chicago requires conduit for all wiring. New York City has extensive local amendments.
Design reviews should verify compliance at multiple stages:
- Conceptual design against facility standards
- 30% design for code compliance
- 60% design for constructability
- 90% design for final coordination
- As-built documentation for inspection
Understand Why Drawings Matter in Load Calculations →
Power Quality and Monitoring Considerations
Modern power distribution systems must deliver not just electricity, but clean, stable power that sensitive equipment requires. Poor power quality leads to equipment malfunctions, reduced efficiency, and premature failures—making monitoring and correction essential for industrial operations.
Common Power Quality Issues and Solutions
Industrial facilities face several power quality challenges that impact production:
| Power Quality Issue | Symptoms | Common Causes | Solutions |
|---|---|---|---|
| Voltage sags | Equipment trips, control resets | Motor starting, utility faults | Soft starters, voltage regulators |
| Harmonics | Overheating, interference | VFDs, LED lighting | Harmonic filters, K-rated transformers |
| Power factor | High utility bills, capacity limits | Inductive loads | Capacitor banks, synchronous motors |
| Voltage imbalance | Motor overheating, reduced life | Unequal loading | Load redistribution, phase monitoring |
Harmonics deserve special attention in modern facilities. Variable frequency drives, LED lighting, and switch-mode power supplies generate harmonic currents that cause:
- Transformer overheating and reduced capacity
- Neutral conductor overloading
- Capacitor bank failures
- Electronic equipment interference
IEEE Standard 519 recommends limiting total harmonic distortion (THD) to 5% for voltage and 8% for current at the point of common coupling. Solutions include:
- Passive filters: LC circuits tuned to specific harmonics
- Active filters: Electronic devices that inject canceling currents
- Multi-pulse drives: 12 or 18-pulse configurations reduce harmonics
- Phase-shifting transformers: Distribute harmonics across phases
Power Factor Correction Strategies
Low power factor wastes capacity and increases utility costs. Most utilities charge penalties when power factor drops below 0.90-0.95. Correction methods include:
Fixed capacitor banks work well for consistent loads like motors running continuously. Size capacitors to achieve 0.95 power factor at typical loading:
Capacitor kVAR = kW × (tan θ₁ – tan θ₂)
Where θ₁ = current power factor angle and θ₂ = target power factor angle
Automatic capacitor banks switch capacitor stages based on real-time power factor measurements, preventing overcompensation during light loads that can cause voltage rise and resonance issues.
Synchronous motors provide dynamic power factor correction while driving loads. Overexcited synchronous motors supply reactive power like capacitors but with better control.
Monitoring System Architecture
Effective power monitoring provides visibility for optimization and troubleshooting. Modern systems include:
Metering Points:
- Main service entrance for utility reconciliation
- Major feeders for departmental allocation
- Large motors for efficiency tracking
- Sensitive equipment for power quality
Key Parameters to Monitor:
- Voltage, current, and power (kW, kVAR, kVA)
- Power factor and frequency
- Harmonic distortion (THD, individual harmonics)
- Voltage sags, swells, and transients
- Energy consumption patterns
- Demand peaks and trends
Communication Architecture:
- Local displays for immediate visibility
- Ethernet networks for data collection
- Cloud connectivity for remote access
- Integration with building automation systems
Return on Investment Examples
Power quality improvements deliver measurable returns:
Power Factor Correction Case: A metal fabrication facility with 0.75 power factor and $50,000 monthly electric bills installed automatic capacitor banks:
- Investment: $75,000 installed
- Power factor improved to 0.96
- Monthly savings: $4,500 in demand charges
- Simple payback: 16.7 months
- Additional benefit: 20% more capacity from existing transformer
Harmonic Mitigation Case: A food processor experiencing nuisance trips and overheating installed active harmonic filters:
- Investment: $125,000
- Reduced THD from 12% to 3%
- Eliminated 10 hours/month downtime @ $15,000/hour
- Monthly savings: $150,000
- Payback: Less than one month
Monitoring System Case: A pharmaceutical manufacturer implemented comprehensive power monitoring:
- Investment: $200,000
- Identified inefficient equipment and peak demand issues
- Reduced peak demand by 15% through load shifting
- Annual savings: $180,000
- Enabled predictive maintenance preventing two major failures
Discover our Industrial Power Monitoring solutions →
Installation Best Practices and Code Compliance
Proper installation transforms good design into reliable operation, requiring attention to workmanship, testing, and documentation. The difference between average and exceptional installation often determines whether a system operates trouble-free for decades or requires constant maintenance.
Conduit and Raceway Installation
Quality conduit installation protects conductors while facilitating future modifications. Industrial best practices exceed code minimums:
Routing Considerations:
- Maintain separation between power and control circuits (NEC Article 725)
- Avoid heat sources that accelerate insulation aging
- Plan for thermal expansion in long runs
- Provide pull boxes per NEC Article 314 spacing requirements
Support and Protection:
- Support intervals per NEC Table 344.30 as minimum
- Additional supports near equipment to prevent strain
- Expansion fittings for temperature variation
- Sealed fittings in wet or classified locations
Future Access:
- Maintain 40% conduit fill for easy conductor pulling
- Install spare conduits during construction (25% typical)
- Document routing with as-built drawings
- Label conduits at accessible points
Grounding System Excellence
Proper grounding ensures safety and allows protective devices to operate correctly. NEC Article 250 provides requirements, but quality installations go further:
Equipment Grounding:
- Size conductors per Table 250.122 minimum
- Run grounds with circuit conductors (no separate paths)
- Bond all metallic raceways and enclosures
- Verify continuity before energization
System Grounding:
- Test soil resistivity before electrode installation
- Achieve <5 ohms resistance (NEC requires <25 ohms)
- Install concrete-encased electrodes during construction
- Bond all grounding electrodes per Article 250.50
Special Considerations:
- Isolated grounding for sensitive electronics
- High-frequency grounding for VFD installations
- Equipotential bonding in hazardous locations
- Lightning protection integration
Labeling and Documentation Standards
Clear labeling prevents accidents and speeds troubleshooting. Industrial facilities benefit from comprehensive identification:
| Component | Required Labeling | Best Practice Addition |
|---|---|---|
| Panels | Voltage, source | Fed from, feeds to |
| Circuits | Number, voltage | Load description, area served |
| Disconnects | Equipment served | Lock-out procedure reference |
| Conductors | Circuit number | Phase, voltage at pulling points |
Arc Flash Labels per NFPA 70E must include:
- Nominal voltage
- Arc flash boundary
- Incident energy at working distance
- Required PPE category
- Date of analysis
Commissioning and Testing Procedures
Systematic commissioning ensures systems perform as designed:
Pre-Energization Testing:
- Insulation resistance (megger) testing
- Continuity verification for all conductors
- Phasing checks at multiple points
- Ground resistance measurements
- Torque verification on connections
Initial Energization:
- Phase rotation verification
- Voltage measurements at all levels
- Current balance under load
- Protective device testing
- Interlock function verification
Full Load Testing:

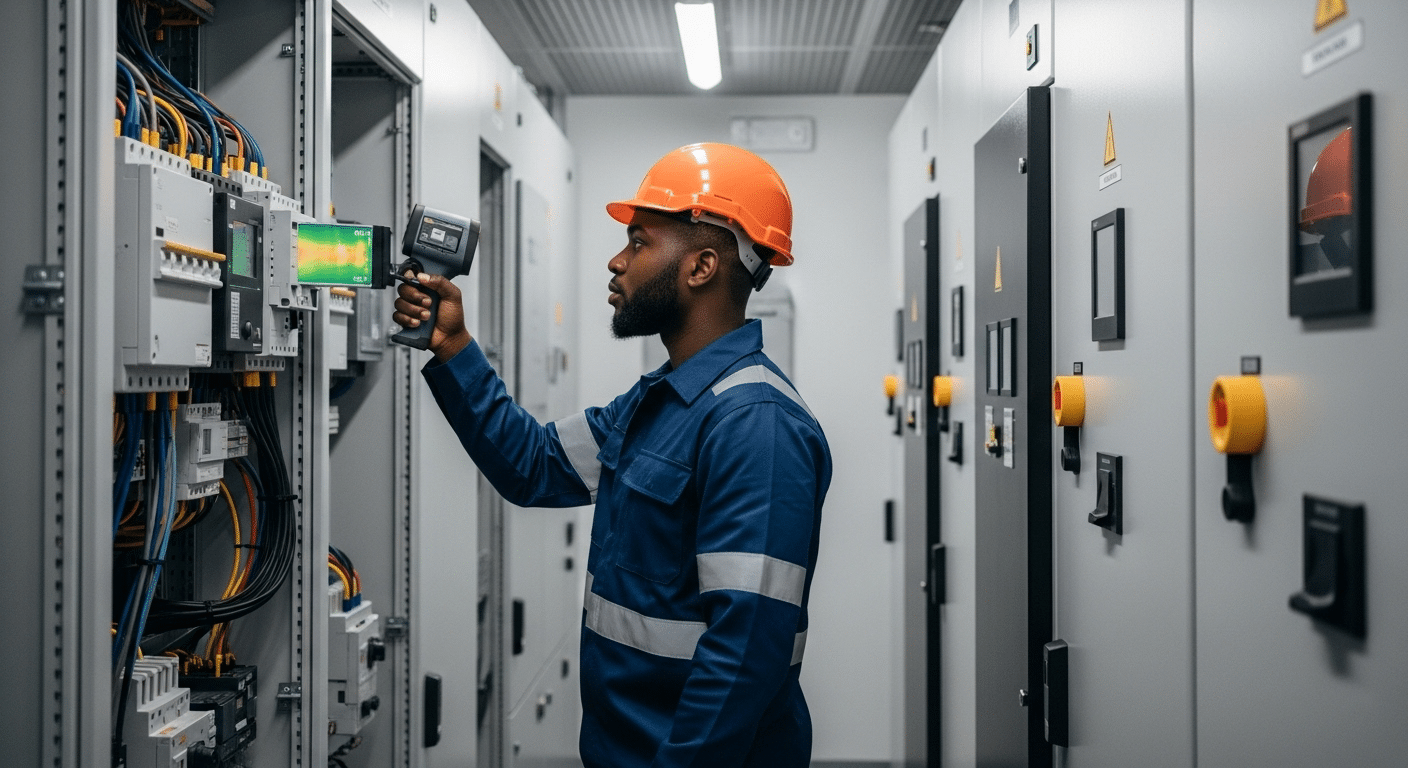

- Infrared scanning of connections
- Power quality baseline measurements
- Maximum demand recording
- Emergency system transfer testing
- Documentation of all readings
Quality Checkpoints
Experienced contractors implement quality checkpoints throughout installation:
Rough-In Stage:
- Conduit routing approved before concrete pour
- Box locations verified against equipment layouts
- Grounding electrode installation witnessed
- Spare capacity provisions confirmed
Pull-In Stage:
- Conductor sizing verified against drawings
- Color coding consistent throughout
- Pulling tension within manufacturer limits
- Minimum bend radius maintained
Termination Stage:
- Proper lugs for conductor type
- Torque values per manufacturer specs
- Phase tape applied consistently
- Labels installed and verified
Final Stage:
- All testing documented
- As-built drawings updated
- Operation and maintenance manuals delivered
- Owner training completed
Learn proper Underground Electrical Conduit Installation techniques →
Compliance Note: All electrical installations must be performed by certified electricians in accordance with local codes and regulations. The information provided serves as a general guide and does not replace the need for qualified professional installation and inspection.
Key Takeaways
Power distribution systems require careful component selection and coordination to deliver reliable electricity from utility service to end-use equipment. Understanding how transformers, switchgear, protective devices, and monitoring systems work together empowers facility teams to maintain uptime and optimize operations.
Proper voltage transformation and protection schemes prevent downtime and equipment damage while ensuring personnel safety. From selective coordination that isolates faults to power quality monitoring that prevents problems before they impact production, each element plays a vital role in system reliability.
Design must balance current needs with future expansion while maintaining code compliance. The most successful installations plan for 25-30% growth capacity, implement modular designs for easy expansion, and exceed minimum code requirements for long-term performance.
Quality installation and monitoring ensure long-term system performance. Proper workmanship during installation, comprehensive commissioning procedures, and ongoing monitoring transform good designs into exceptional systems that operate reliably for decades.
Understanding power distribution systems empowers facility teams to make informed decisions about upgrades, expansions, and maintenance—protecting operations while optimizing energy costs. The right design, properly installed and maintained, becomes an invisible asset that supports production day after day.
Ready to evaluate or upgrade your facility’s power distribution system? Contact Delta Wye Electric at (877) 399-1940 for a comprehensive system assessment from our certified electrical engineers.
For more insights on maintaining electrical system reliability, explore our guide on infrared electrical inspections to identify potential failures before they cause downtime.
