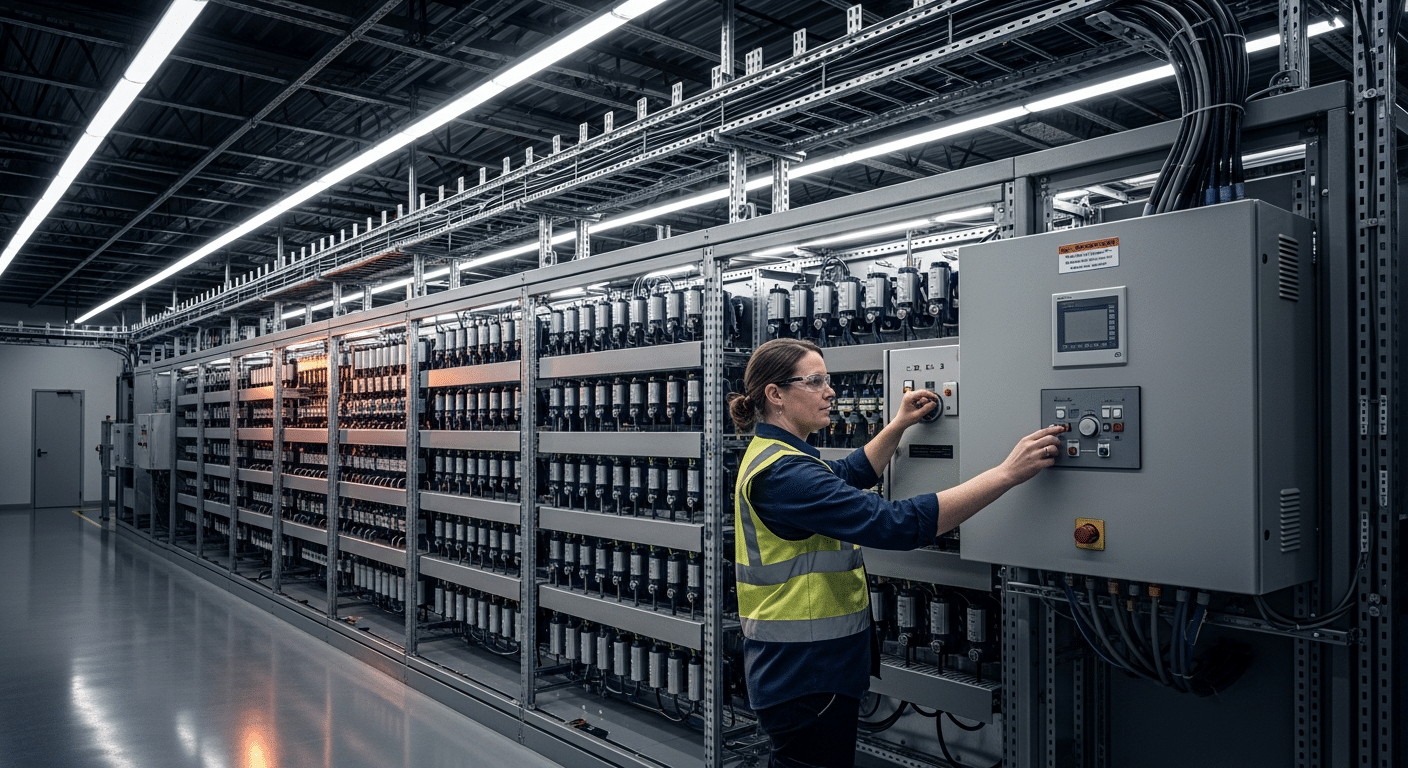

Reactive Power Compensation Solutions Compared

Reactive power penalties on your utility bill are more than a nuisance—they signal deeper inefficiencies that shorten equipment life and limit your facility’s electrical capacity. If you’ve noticed a lagging power factor, rising demand charges, or voltage issues across your distribution system, the root cause is often uncompensated reactive power. The good news: reactive power compensation solutions exist to correct these problems, reduce wasted energy, and free up capacity for the loads that actually drive production.

But with several technologies on the market—from simple capacitor banks to advanced STATCOMs—choosing the right solution requires understanding how each one works and where it fits. This guide walks you through a clear comparison of the most common reactive power compensation technologies, a practical framework for choosing the right one, and industry-specific considerations that affect the decision.

Delta Wye Electric has delivered turnkey power distribution, power quality analysis, and industrial electrical construction for manufacturers and critical facilities since 1980. Our field teams work across food and beverage, pharmaceutical, semiconductor, data center, and heavy manufacturing environments every day. That hands-on experience informs every recommendation below.

Let’s start with a clear definition and then walk through each solution so you can make an informed decision for your operation.


What Is Reactive Power Compensation?

Reactive power compensation is the process of managing the reactive component of electrical power in a facility to improve the power factor, reduce utility penalties, free up system capacity, and protect equipment. Common solutions include power capacitor banks, synchronous condensers, active harmonic filters, STATCOMs, and hybrid systems.

To understand why this matters, it helps to know what reactive power actually is. In any AC electrical system, power has two components: active power (measured in kilowatts) does useful work—running motors, heating elements, powering production lines. Reactive power (measured in kilovars, or kVAR) doesn’t perform useful work. Instead, it sustains the magnetic fields required by inductive loads like motors, transformers, and fluorescent lighting.

The problem arises when reactive power grows too large relative to active power. Your power factor drops, your utility may impose a power factor penalty, and your electrical infrastructure carries current that produces heat without producing output. That means higher losses, reduced capacity, and stressed equipment.

Power factor correction through reactive power compensation addresses all of these issues. Here’s why it matters:

  • Utility penalty reduction — Many utilities charge extra when your power factor falls below a threshold (often 0.90 or 0.95). Compensation eliminates or reduces those charges.
  • Increased system capacity — Correcting power factor frees up ampacity in your transformers, cables, and switchgear, allowing you to add loads without upgrading infrastructure. Learn more about how industrial power distribution supports system capacity.
  • Voltage stability — Reactive power compensation helps maintain steady voltage levels, reducing sags and swells that disrupt sensitive processes.
  • Reduced I²R losses — Lower reactive current means less resistive heating in conductors, which translates directly to energy savings.
  • Equipment protection — Stable voltage and reduced thermal stress extend the life of motors, drives, and transformers.
  • Regulatory compliance — Some utilities and grid operators require facilities to maintain a minimum power factor.

If you suspect power factor issues but aren’t sure where to start, a power quality analysis is the essential first step. It identifies the sources and magnitude of reactive power in your system so you can size and select compensation equipment accurately.


Types of Reactive Power Compensation Solutions

Not all reactive power problems are the same, and not all solutions fit every situation. Here are the five major technology categories you’ll encounter when evaluating reactive power compensation solutions.

1. Fixed and Automatic Power Capacitor Banks

Capacitor banks are the most widely deployed reactive power compensation method. Fixed banks provide a constant amount of reactive power, while automatic (switched) banks use a controller to add or remove capacitor stages based on real-time demand. They are cost-effective for facilities with relatively stable, inductive loads such as large motor groups.

2. Synchronous Condensers

A synchronous condenser is a synchronous motor running without a mechanical load. By adjusting its field excitation, it can absorb or generate reactive power. Synchronous condensers provide smooth, stepless compensation and contribute to system inertia, which helps stabilize frequency. They are typically found in heavy industrial plants or utility substations.

3. Active Harmonic Filters

Active harmonic filters use power electronics to inject compensating currents that cancel harmonics and correct power factor simultaneously. They are the right choice when non-linear loads—variable-frequency drives (VFDs), rectifiers, or arc furnaces—create significant harmonic distortion alongside reactive power issues.

4. STATCOMs (Static Synchronous Compensators)

A STATCOM, or Static Synchronous Compensator, is a power-electronics-based device that provides fast, dynamic reactive power compensation. It can both generate and absorb reactive power with millisecond response times. STATCOMs excel in facilities with rapidly fluctuating loads or strict voltage regulation requirements.

5. Hybrid Systems

Hybrid systems combine two or more of the technologies above—for example, capacitor banks for steady-state correction paired with an active filter for harmonic mitigation, or capacitor banks supplemented by a STATCOM for dynamic response. These systems are designed through electrical engineering and design to address complex load profiles that no single technology handles optimally.

When compensation equipment requires custom enclosures or integrated panels, UL-certified panel building ensures the final assembly meets code and safety requirements.


Reactive Power Compensation Solutions Compared

The table below provides a side-by-side comparison of the five major solution types. Use it to shortlist the right technology for your facility before engaging a qualified electrical contractor for a site-specific assessment.

Solution Type How It Works Response Speed Best For Relative Cost Key Limitation
Fixed/Automatic Capacitor Banks Switches capacitor stages on or off to supply reactive power (kVAR) Seconds (automatic) to static (fixed) Facilities with stable, inductive loads (motors, transformers) Low Cannot compensate harmonics; risk of resonance with non-linear loads
Synchronous Condensers Rotating machine adjusts field excitation to generate or absorb reactive power Moderate (mechanical inertia) Heavy industrial plants needing inertia and smooth compensation High Large footprint; requires mechanical maintenance (bearings, cooling)
Active Harmonic Filters Power electronics inject compensating currents to cancel harmonics and correct power factor Milliseconds Facilities with significant non-linear loads and harmonic distortion Medium–High Rated capacity limits total compensation; higher complexity
STATCOMs Voltage-source converter generates or absorbs reactive power electronically Milliseconds Rapidly fluctuating loads; strict voltage regulation requirements High Higher upfront cost; requires specialized engineering
Hybrid Systems Combines capacitor banks with active filters, STATCOMs, or both Varies by configuration Complex load profiles mixing steady-state and dynamic needs Medium–High Design complexity; requires thorough engineering analysis

When does a hybrid approach make sense? If your facility has a mix of large inductive loads and non-linear loads—say, a bank of 500 HP motors alongside dozens of VFDs—a single technology may not cover both the steady-state reactive power demand and the dynamic harmonic content. A hybrid system lets you use lower-cost capacitor banks for the bulk correction while an active filter or STATCOM handles the fast, complex portion. The result is better performance at a more reasonable total cost.

Selecting the right combination starts with a thorough electrical engineering and design process that models your system, identifies risks like harmonic resonance, and sizes equipment to match your actual load profile.


How to Choose the Right Solution for Your Facility

Choosing reactive power compensation equipment is not a catalog exercise. The right solution depends on your facility’s specific electrical characteristics, operational goals, and growth plans. Follow this evaluation framework:

  1. Conduct a power quality analysis. Measure your current power factor, voltage levels, and harmonic content across your distribution system. This baseline data drives every decision that follows. A power quality analysis performed by experienced engineers ensures you’re working from accurate data—not assumptions.

  2. Profile your load types. Identify whether your loads are primarily linear (motors, resistive heaters, lighting) or non-linear (VFDs, rectifiers, UPS systems, welders). Linear loads typically need straightforward capacitive compensation. Non-linear loads introduce harmonics that require active filtering or hybrid approaches.

  3. Measure harmonic distortion levels. High total harmonic distortion (THD) can cause capacitor banks to overheat or resonate. If THD is elevated, you may need detuned reactors on your capacitor banks, active harmonic filters, or a STATCOM.

  4. Estimate capacity needs and growth plans. Are you planning to add production lines, expand a data hall, or install new process equipment? Size your compensation system for where your facility is heading—not just where it is today.

  5. Compare solution fit using the table above. Match your load profile, harmonic environment, and response-speed requirements to the technology that fits. Shortlist one or two options.

  6. Engage a qualified electrical contractor for design and installation. A site-specific engineering assessment validates your shortlist, identifies installation requirements, and ensures the final system is code-compliant and properly integrated. Explore Delta Wye’s full range of services for an overview of how we support projects from design through commissioning.

Tip: Start with a power quality analysis before specifying any compensation equipment. Misdiagnosis leads to wasted investment—or worse, equipment damage from harmonic resonance or incorrect sizing.


Industry Applications for Reactive Power Compensation

Reactive power challenges vary by industry. The load mix, operating patterns, and power quality requirements differ significantly from one facility type to the next. Here’s how reactive power compensation applies across several sectors Delta Wye serves. Visit our industries page for a complete list.

  • Manufacturing — Heavy motor loads (compressors, pumps, conveyors) create large, steady reactive power demand. Automatic capacitor banks are often the foundation, sometimes supplemented with active filters where VFDs are prevalent. Correcting power factor in a manufacturing plant directly frees up transformer capacity for additional production equipment.

  • Data Centers — UPS systems, cooling infrastructure, and high-density computing loads create a complex mix of reactive power and harmonics. Data centers often require active harmonic filters or STATCOMs to maintain tight voltage regulation and meet utility power factor requirements. Response speed matters here because load changes can be rapid and significant.

  • Food and Beverage — Variable-speed drives on mixers, conveyors, and refrigeration compressors introduce harmonic distortion alongside reactive power. Hybrid systems that pair capacitor banks with active filters handle both issues efficiently. When upgrading compensation equipment in an existing plant, equipment installation and relocation services ensure minimal disruption to production schedules.

  • Semiconductor — Precision manufacturing processes demand extremely stable voltage and minimal harmonic distortion. Even small power quality deviations can cause yield losses. STATCOMs or advanced hybrid systems are common in semiconductor fabs because of their fast response and precise control.

  • Chemical Processing and Water/Wastewater — Large pump and blower motors drive significant reactive power demand. These facilities often operate around the clock, making utility penalty reduction a high-value outcome. Automatic capacitor banks with detuned reactors are a reliable, cost-effective starting point.


Benefits of Reactive Power Compensation

When properly engineered and installed, reactive power compensation delivers measurable operational improvements. Here are the key benefits:

  • Reduced utility penalties — Correcting your power factor eliminates or significantly reduces power factor penalty charges on your monthly bill.
  • Improved power factor — A higher power factor means your facility uses electrical power more efficiently, drawing less current for the same amount of useful work.
  • Extended equipment lifespan — Lower reactive current reduces thermal stress on motors, transformers, cables, and switchgear, which extends their service life.
  • Increased available capacity — Freeing up kVA that was previously consumed by reactive power lets you add loads without upgrading transformers or feeders.
  • Voltage stability — Compensation keeps voltage within tighter tolerances, reducing sags and swells that cause nuisance trips and process disruptions.
  • Lower I²R losses — Less current flowing through your conductors means less energy wasted as heat, improving overall system efficiency.
  • Reduced carbon footprint — Lower losses and more efficient power use translate to reduced energy consumption from the grid.
  • Compliance with utility requirements — Many utilities and grid operators mandate minimum power factor levels. Compensation keeps you in compliance.

For operations leaders, these benefits translate to higher uptime, lower operating costs, and more headroom for growth. For maintenance teams, they mean fewer thermal-related failures, less troubleshooting, and a more stable electrical environment to manage.


Frequently Asked Questions About Reactive Power Compensation

What is the most common reactive power compensation method?

Automatic power capacitor banks are the most common method. They use a controller to switch capacitor stages on and off based on real-time power factor readings. Capacitor banks are widely used because they are cost-effective, straightforward to install, and well-suited to facilities with predominantly inductive loads like motors and transformers.

How does reactive power compensation reduce electricity costs?

When your power factor is low, your utility may charge a power factor penalty or bill you for apparent power (kVA) instead of just active power (kW). Reactive power compensation raises your power factor, reducing or eliminating those penalties. It also reduces current flow, which lowers I²R losses in your distribution system.

What is the difference between active and passive compensation?

Passive compensation uses capacitor banks (sometimes with detuned reactors) to supply reactive power. It is simple and cost-effective but cannot address harmonics. Active compensation uses power electronics—such as active harmonic filters or STATCOMs—to dynamically inject or absorb reactive power and cancel harmonic currents. Active solutions cost more but handle complex, fast-changing loads.

When should you upgrade from capacitor banks to a STATCOM?

Consider upgrading when your facility has rapidly fluctuating loads, high harmonic distortion that causes capacitor failures or resonance, or strict voltage regulation requirements that switched capacitor banks cannot meet. A STATCOM provides millisecond response and continuous control, making it the right fit for dynamic environments like semiconductor fabs or data centers.

How do you know if your facility needs reactive power compensation?

Common indicators include power factor penalty charges on your utility bill, low power factor readings (below 0.90), frequent voltage fluctuations, overheating transformers or cables, and an inability to add new loads without upgrading infrastructure. A professional power quality analysis confirms the diagnosis and quantifies the opportunity.

If you have questions specific to your facility, contact Delta Wye Electric to discuss your situation with our team.


Key Takeaways

Reactive power compensation corrects power factor, reduces utility penalties, and frees up electrical capacity for productive loads. The right solution depends on your facility’s load profile, harmonic content, budget, and growth plans—there is no one-size-fits-all answer. And a professional power quality analysis is the essential first step before specifying any compensation equipment.

Getting reactive power compensation right means partnering with a team that understands industrial power systems from engineering through installation and commissioning. Delta Wye Electric has delivered reliable, code-compliant power solutions for manufacturers and critical facilities since 1980. We show up, solve problems, and stand behind our work.

Ready to improve your facility’s power factor? Contact Delta Wye Electric for a power quality analysis and a tailored compensation plan.
