A single surge current event lasting mere milliseconds can destroy $50,000 worth of industrial equipment—and it happens more often than most facility managers realize. From lightning strikes to motor startups, surge currents pose a constant threat to industrial electrical systems. These brief but powerful electrical spikes can damage sensitive electronics, trip protective devices, and cause costly production downtime.
In this comprehensive guide, you’ll discover the physics behind surge current and why it’s so destructive, real-world sources of surge current in industrial facilities, and proven protection strategies that prevent equipment damage. At Delta Wye Electric, we’ve protected industrial facilities from surge damage for over 40 years, implementing solutions that have saved our clients millions in prevented equipment failures. Understanding surge current isn’t just about electrical theory—it’s about protecting your operation’s reliability and bottom line.
What Is Surge Current? Definition and Physics
Surge current represents a temporary overcurrent condition that dramatically exceeds normal operating levels, often by factors of 10 to 100 times. Unlike steady-state current that flows predictably through your electrical systems, surge current arrives as a rapid, high-amplitude pulse that can overwhelm protective devices and damage sensitive components.
The key characteristics that make surge current particularly destructive include:
- Duration: Typically lasting from microseconds to a few cycles (8-16 milliseconds)
- Amplitude: Peak values ranging from hundreds to thousands of amperes
- Rise time: Can reach maximum amplitude in less than 1 microsecond
- Frequency content: Contains high-frequency harmonics that bypass normal filtering
According to IEEE Standard 1100-2005, surge currents in industrial facilities commonly reach magnitudes of 3,000 to 20,000 amperes, with rise times as fast as 0.1 microseconds. These extreme electrical conditions create electromagnetic forces, thermal stress, and voltage spikes that standard equipment isn’t designed to handle.
The physics behind surge current damage centers on the relationship between current, impedance, and energy dissipation. When surge current flows through system impedances, it generates voltages according to Ohm’s law (V = I × Z). With surge magnitudes reaching thousands of amperes, even small impedances produce destructive voltage levels. Additionally, the energy contained in the surge (measured in joules) must dissipate somewhere—often as heat within vulnerable components.
Common Sources of Surge Current in Industrial Facilities
Industrial facilities face surge current threats from both external and internal sources. Understanding these sources helps you identify vulnerabilities and implement targeted protection strategies.
External surge sources include:
| Source | Typical Current | Duration | Frequency |
|---|---|---|---|
| Direct lightning strike | 20,000-200,000A | 0.1-1ms | 1-2 per year |
| Induced lightning | 1,000-10,000A | 0.1-100μs | 10-50 per year |
| Utility switching | 500-5,000A | 1-10ms | 5-20 per month |
| Grid faults | 1,000-20,000A | 0.5-8 cycles | 2-10 per year |
Internal surge sources frequently overlooked but equally damaging:
Motor inrush current represents the most common internal surge source. When starting, AC motors draw inrush current 6-10 times their full-load rating. For a 100HP motor with 124A full-load current, the inrush can reach 744-1,240A for 10-30 cycles. This transient current stresses upstream protective devices and can cause voltage sags affecting other equipment.
Capacitor switching in power factor correction systems generates high-frequency transients. When capacitors energize, they create surge currents proportional to the system voltage and rate of change (I = C × dV/dt). A 300kVAR capacitor bank switching onto a 480V system can produce surge currents exceeding 5,000A with sub-microsecond rise times.
Variable frequency drives (VFDs) create surge conditions during fault clearing and output switching. Modern IGBT-based drives switch at frequencies up to 20kHz, generating transient currents that stress motor insulation and create electromagnetic interference.
Your facility’s Industrial LED Lighting systems, while more efficient than traditional lighting, can contribute to surge current during mass switching events. However, properly designed LED drivers include inrush limiting that reduces this concern compared to older technologies.
How Surge Current Damages Equipment and Systems
Surge current inflicts damage through multiple mechanisms, from instantaneous catastrophic failure to gradual degradation that eventually causes unexpected breakdowns. Understanding these damage modes helps justify protection investments and guides maintenance strategies.
Immediate catastrophic damage occurs when surge energy exceeds component ratings:
- Semiconductor junctions fail when current density exceeds 1,000 A/cm², causing thermal runaway
- Capacitors experience dielectric breakdown when voltage spikes exceed 150% of rating
- Transformer windings suffer insulation failure from turn-to-turn voltage stress
- Circuit board traces vaporize when current creates excessive I²R heating
Cumulative degradation represents a more insidious threat. Components exposed to repeated surge events experience:
- Accelerated aging of insulation systems
- Metal migration in semiconductor devices
- Electrolytic capacitor dry-out
- Contact erosion in switching devices
Our Infrared Inspections frequently reveal heat signatures indicating surge damage before complete failure occurs. Hot spots at terminations, discolored components, and unusual thermal patterns often trace back to surge current stress.
Equipment-specific vulnerabilities vary by technology:
| Equipment Type | Vulnerability | Typical Repair Cost |
|---|---|---|
| PLCs/Controllers | Logic board failure | $5,000-15,000 |
| VFDs (50HP) | IGBT module damage | $8,000-25,000 |
| Soft starters | SCR failure | $3,000-10,000 |
| Power supplies | Rectifier/capacitor damage | $1,000-5,000 |
| Motors | Winding insulation breakdown | $10,000-50,000+ |
Industrial Standards and Code Requirements for Surge Protection
Surge protection requirements have evolved significantly as facilities become more dependent on sensitive electronic systems. Current codes mandate specific protection levels while industry standards provide implementation guidance.
NEC Article 285 addresses surge protective devices (SPDs) for systems up to 1000V. Key requirements include:
- SPDs must be listed to UL 1449 (4th edition)
- Installation requires adherence to manufacturer’s instructions
- Conductor length between SPD and protected equipment must minimize (NEC 285.12)
- SPDs protecting emergency systems need selective coordination (NEC 285.6)
IEEE Standards provide engineering guidelines beyond code minimums:
- IEEE C62.41.2: Characterizes surge environments in low-voltage AC systems
- IEEE C62.45: Provides testing procedures for surge protection components
- IEEE 1100-2005 (Emerald Book): Addresses powering and grounding sensitive equipment
For facilities with NEC Requirements for Hazardous Locations, additional considerations apply. Surge protection devices in classified areas must maintain explosion-proof integrity while providing effective transient suppression.
Compliance requirements vary by facility type:
Manufacturing facilities typically need:
- Service entrance protection (Type 1 SPD)
- Distribution panel protection (Type 2 SPD)
- Equipment-level protection for critical processes
Data centers and semiconductor facilities require:
- Coordinated multi-stage protection
- Sub-cycle response times
- Monitoring capabilities for protection status
Healthcare facilities must meet:
- NFPA 99 requirements for essential electrical systems
- Isolated ground system compatibility
- Life safety system surge immunity
7 Proven Methods to Protect Against Surge Current
Effective surge protection requires a systematic approach combining multiple defensive layers. These seven methods, refined through decades of field experience, provide comprehensive protection for industrial facilities.
1. Service Entrance Surge Protection (Type 1 SPDs)
Install heavy-duty SPDs at your main service entrance to intercept high-energy surges from utility events and lightning. These devices should feature:
- Surge current ratings of 100-400kA per phase
- MCOV ratings 15-25% above system voltage
- Thermal disconnects and surge counter capabilities
2. Distribution Level Protection (Type 2 SPDs)
Place SPDs at panelboards and motor control centers throughout your facility. This distributed approach limits surge propagation and provides closer protection to sensitive loads. Select devices with:
- 50-100kA surge ratings
- Sub-nanosecond response times
- Visual indication of protection status
3. Point-of-Use Protection (Type 3 SPDs)
Install compact SPDs directly at sensitive equipment like PLCs, drives, and control systems. These final defense layers handle residual surges that bypass upstream protection:
- 10-40kA surge capacity
- Multiple protection modes (L-N, L-G, N-G)
- Noise filtering capabilities above 100kHz
4. Coordinated Grounding Systems
Establish low-impedance grounding that provides surge currents a preferred path to earth. Critical elements include:
- Ground resistance below 5 ohms (25 ohms maximum per NEC)
- Equipotential bonding between all grounds
- Separate grounding electrodes bonded per code
- Annual ground resistance testing
5. Surge-Rated Isolation Transformers
Deploy transformers with enhanced surge withstand capabilities for critical processes. Features should include:
- Electrostatic shields between windings
- 200% neutral sizing for harmonic compatibility
- K-factor ratings appropriate for non-linear loads
6. Transient Voltage Surge Suppressors (TVSS) with Filtering
Combine surge suppression with high-frequency filtering to address both voltage spikes and electrical noise:
- 3dB attenuation above 10kHz
- Series inductance for current limiting
- Parallel capacitance for voltage clamping
7. Facility-Wide Surge Protection Coordination
Implement energy coordination between protection stages to ensure proper operation:
- 30-foot minimum separation between stages
- Cascading voltage protection levels
- Time-current coordination studies
- Regular protection system audits
Each method contributes to overall system resilience, with effectiveness measured by prevented failures rather than initial cost.
Selecting and Sizing Surge Protection Devices (SPDs)
Proper SPD selection requires analyzing your facility’s surge exposure, electrical system characteristics, and protected equipment sensitivity. This systematic approach ensures adequate protection without overspecification.
Step 1: Assess Surge Environment
Determine your facility’s IEEE C62.41.2 location category:
- Category C: Service entrance (highest exposure)
- Category B: Distribution level (medium exposure)
- Category A: Branch circuits (lowest exposure)
Step 2: Calculate Required Surge Current Rating
Use IEEE C62.41.2 guidelines for minimum ratings:
- Category C: 10kA minimum, 20kA recommended
- Category B: 3kA minimum, 10kA recommended
- Category A: 0.5kA minimum, 3kA recommended
For lightning-prone areas, multiply by regional isokeraunic level:
- Under 25 thunderstorm days/year: Use standard ratings
- 25-50 days/year: Multiply by 1.5
- Over 50 days/year: Multiply by 2.0
Step 3: Verify Voltage Protection Level
Calculate maximum acceptable let-through voltage:
VPL = Equipment withstand voltage × 0.8 (safety factor)
For 480V systems with 6kV BIL-rated equipment:
VPL = 6,000V × 0.8 = 4,800V maximum
Step 4: Confirm MCOV Rating
Maximum Continuous Operating Voltage must exceed system conditions:
MCOV = System voltage × 1.25 (for potential 125% overvoltage)
For 480V systems:
MCOV = 480V × 1.25 = 600V minimum
Manufacturer Comparison for Industrial Applications:
| Manufacturer | Model Series | kA Rating | VPL @ 3kA | MCOV | Typical Price |
|---|---|---|---|---|---|
| Schneider | Surgelogic | 100-400 | 1,200V | 550V | $2,500-8,000 |
| Eaton | SPD Series | 80-320 | 1,500V | 600V | $2,000-7,500 |
| ABB | Furse | 100-400 | 1,400V | 575V | $3,000-9,000 |
| Siemens | TPS3 | 100-300 | 1,300V | 600V | $2,800-8,500 |
Real-World Case Studies: Surge Protection Success Stories
Case Study 1: Food Processing Plant Lightning Protection
A California food processor experienced repeated VFD failures during summer thunderstorms, with each incident costing $25,000 in repairs plus $100,000 in daily lost production. Delta Wye Electric implemented a coordinated protection strategy:
Solution:
- 200kA Type 1 SPD at main switchgear
- 100kA Type 2 SPDs at five MCCs
- Type 3 SPDs on all drives over 25HP
- Improved facility grounding system
Results:
- Zero surge-related failures in 3 years
- $375,000 in prevented equipment damage
- $1.2M in avoided production losses
- 4.2-month payback on $85,000 investment
Case Study 2: Semiconductor Facility Transient Mitigation
A semiconductor manufacturer traced yield variations to power quality issues, including transient voltages from nearby industrial switching. Our analysis revealed 50+ daily transient events exceeding sensitive equipment tolerances.
Solution:
- Facility-wide power monitoring system
- 400kA service entrance protection
- Sub-cycle transfer switches for critical loads
- Dedicated SPDs for metrology equipment
Results:
- 73% reduction in transient events reaching production
- 12% improvement in product yield
- $2.3M annual savings from reduced scrap
- 8-month ROI on $340,000 protection system
These implementations demonstrate that properly designed surge protection delivers measurable returns through prevented failures and improved reliability.
Maintenance and Testing of Surge Protection Systems
Surge protection systems require ongoing verification to ensure continued effectiveness. Unlike circuit breakers that remain functional until operated, SPDs can degrade from repeated surge events or component aging.
Inspection Schedule:
Monthly:
- Visual status indicator checks
- Surge counter readings (if equipped)
- Thermal scanning of connections
Quarterly:
- Insulation resistance testing
- Ground impedance measurements
- Protection coordination verification
Annually:
- Complete Electrical Safety Inspection
- SPD replacement evaluation
- Protection study updates
Testing Procedures:
- Visual Inspection Checklist:
- Status indicators showing normal (green)
- No signs of physical damage or burning
- Connections tight and corrosion-free
- Proper labeling maintained
- Electrical Testing Requirements:
- Measure voltage between SPD terminals and ground
- Verify leakage current below manufacturer limits
- Test ground resistance at connection points
- Document all readings for trending

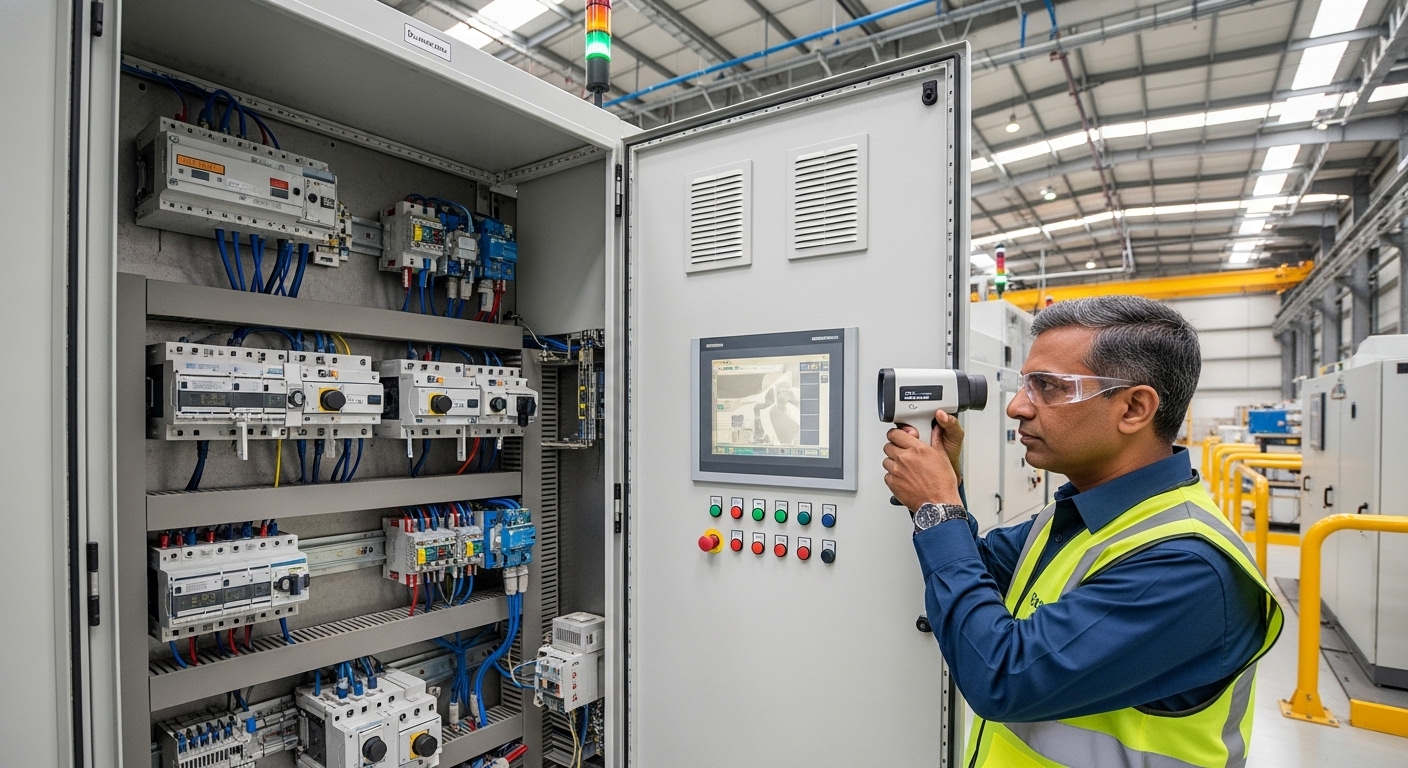

- Infrared Inspection Points:
- SPD housing temperature rise
- Connection point hot spots
- Adjacent equipment thermal signatures
- Compare to baseline thermographs
Replacement Indicators:
- Status window showing red/failed
- Leakage current exceeding specifications
- Physical damage or burn marks
- Age exceeding manufacturer recommendations (typically 10-15 years)
- Surge counter approaching design limits
Regular maintenance ensures your surge protection investment continues delivering value throughout its service life.
Key Takeaways
Surge current poses serious risks to industrial equipment but is preventable with proper protection. These brief, high-amplitude electrical events can destroy expensive equipment in milliseconds, yet many facilities remain inadequately protected. Effective surge protection requires a coordinated, multi-stage approach tailored to your facility’s specific risks and electrical infrastructure. From service entrance SPDs rated for hundreds of kiloamperes to point-of-use devices protecting individual equipment, each layer contributes to overall system resilience.
Regular maintenance and testing ensure ongoing protection effectiveness. SPDs don’t last forever—they sacrifice themselves protecting your equipment and require periodic evaluation and replacement. By implementing comprehensive surge protection and maintaining it properly, you transform a significant operational risk into a manageable, preventable concern.
Investing in comprehensive surge protection isn’t just about preventing equipment damage—it’s about ensuring operational continuity, protecting your bottom line, and maintaining the trust of your customers who depend on reliable production. The case studies demonstrate clear ROI through prevented failures, reduced downtime, and improved product quality.
