A single transformer failure can cost your facility $100,000+ per hour in downtime—yet 75% of these failures are completely preventable with proper maintenance. The difference between catastrophic failure and reliable operation often comes down to one critical tool: a comprehensive transformer maintenance checklist that your team actually uses.
Whether you manage oil-filled transformers at a substation or dry-type units in your manufacturing plant, having a systematic maintenance approach isn’t just about compliance—it’s about protecting your operation from preventable disasters. This guide provides the exact inspection and testing procedures our certified electricians at Delta Wye Electric have refined over 40+ years of maintaining critical transformer assets across 20+ states.
You’ll get complete daily, monthly, quarterly, and annual checklists with specific inspection points, critical safety procedures and testing requirements, plus a downloadable PDF template for immediate use. From aerospace manufacturers to food processing plants, we’ve developed these checklists through thousands of successful maintenance cycles, helping facilities prevent failures before they happen.
Let’s break down exactly what you need to inspect, when to inspect it, and how to document findings that keep your transformers running reliably for decades.

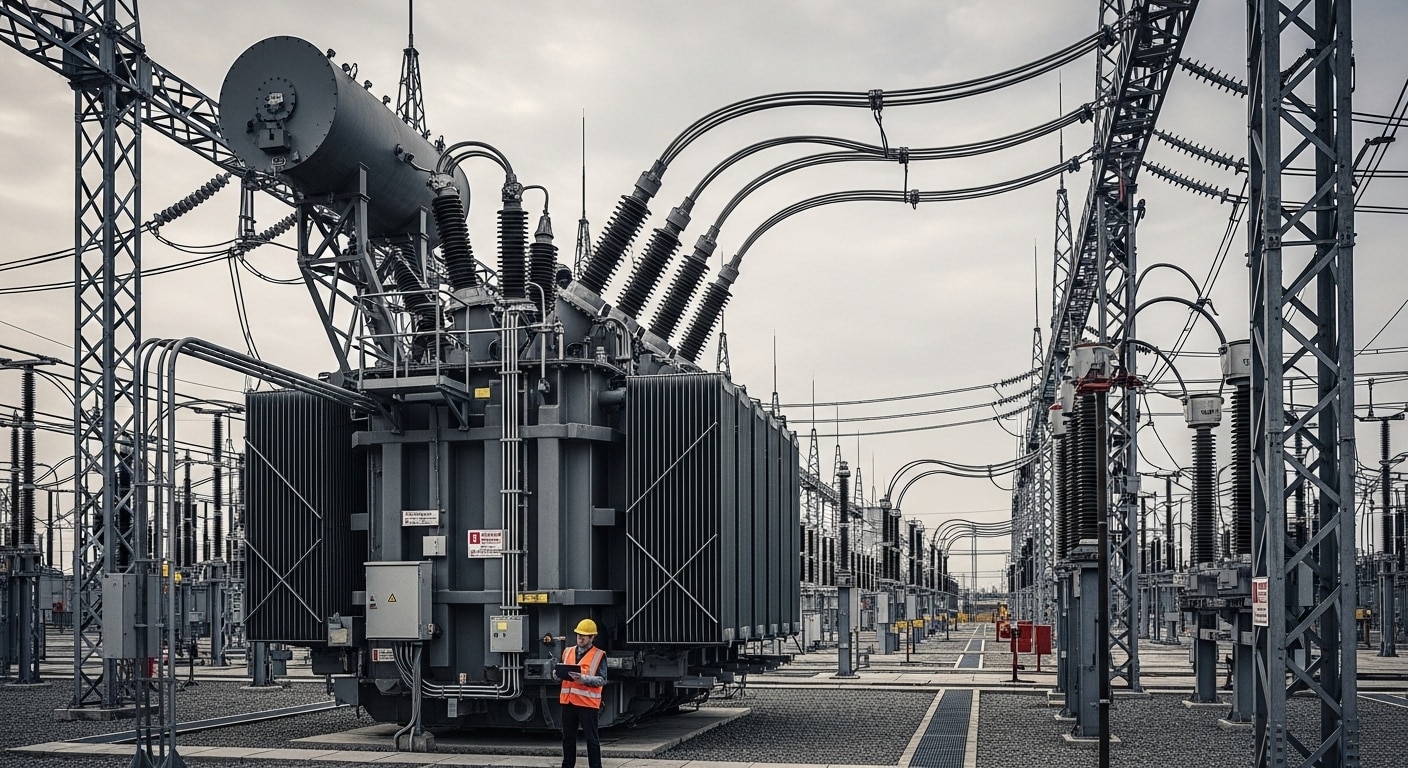

Why Transformer Maintenance Matters: The Real Cost of Failure
Every year, unexpected transformer failures cost U.S. industries over $3.5 billion in lost production, emergency repairs, and equipment replacement. But here’s what those statistics don’t capture: the cascading effects of a single failure rippling through your entire operation.
When a 2,500 kVA transformer fails at a food processing plant, you’re not just looking at repair costs. You’re facing spoiled inventory, missed delivery deadlines, overtime labor, expedited shipping for replacement parts, and potential contract penalties. One midwest dairy processor we worked with calculated their 18-hour transformer outage at $1.8 million in total losses—from a failure that regular maintenance would have prevented.
The top 5 causes of transformer failure are:
- Insulation breakdown from moisture contamination (32% of failures)
- Overheating from blocked cooling systems (24% of failures)
- Bushing failures from lack of cleaning (18% of failures)
- Tap changer malfunctions from irregular maintenance (14% of failures)
- Lightning strikes and surges without proper protection (12% of failures)
Notice something? Four out of five leading causes are entirely preventable with proper transformer maintenance procedures.
Beyond the immediate financial impact, consider the insurance and compliance implications. Insurance carriers increasingly require documented maintenance programs for coverage. Without proper records, you might find yourself facing denied claims or premium increases of 15-30%. Meanwhile, OSHA, NFPA, and local authorities can issue citations ranging from $13,000 to $135,000 for maintenance-related safety violations.
The good news? Facilities implementing comprehensive transformer maintenance programs report 73% fewer unplanned outages and extend equipment life by an average of 15-20 years. That’s why smart operations teams don’t view maintenance as a cost—they see it as insurance against catastrophic failure.
Daily Transformer Maintenance Checklist
Your daily transformer maintenance checklist forms the foundation of equipment reliability. These quick visual inspections, typically taking 10-15 minutes per unit, catch early warning signs before they escalate into failures.
12-Point Daily Inspection Items:
✓ Oil Level Check – Verify oil level is within normal operating range on the gauge
✓ Temperature Readings – Record top oil and winding temperature indicators
✓ Pressure Relief Device – Check for signs of operation (flag indicator)
✓ Cooling System Operation – Confirm fans/pumps are running when required
✓ Unusual Sounds – Listen for humming, buzzing, or arcing sounds
✓ Oil Leaks – Inspect for fresh oil on tank, bushings, or pad
✓ Bushing Condition – Look for cracks, chips, or contamination
✓ Pressure Gauge – Verify vacuum/pressure is within normal range
✓ Control Cabinet – Check for proper door closure and sealing
✓ Security – Ensure gates, locks, and barriers are intact
✓ Grounding Connections – Visual check for intact ground cables
✓ Area Housekeeping – Remove debris, vegetation, or stored materials
What Abnormal Conditions Look Like:
Dark or cloudy oil visible through sight glasses indicates moisture contamination. Brown or black deposits on bushings suggest tracking or partial discharge. Oil stains spreading on the pad mean seal deterioration. Temperature readings consistently 10°C above historical averages signal cooling problems or overloading.
One critical point: if you notice oil level dropping without visible leaks, shut down immediately—internal faults can consume oil rapidly. Similarly, any sudden change in sound pattern warrants immediate investigation. That new humming might be loose laminations, while crackling sounds often indicate partial discharge.
Document every reading and observation, even when everything appears normal. These baseline records become invaluable when tracking gradual changes over time. Consider implementing digital logging through maintenance software or even simple spreadsheets—just ensure records are accessible and regularly reviewed.
For comprehensive guidance on setting up your entire electrical maintenance program, see our complete Industrial Electrical Maintenance Plan guide.
Monthly Transformer Maintenance Checklist
Monthly transformer maintenance checklist items require more detailed inspection and basic testing equipment. Plan 45-60 minutes per transformer for these procedures, scheduling them during planned maintenance windows when possible.
Monthly Inspection Points:
✓ Silica Gel Breather – Check color (blue = dry, pink = saturated)
✓ Conservator Tank – Inspect bladder/diaphragm for damage
✓ Buchholz Relay – Test alarm and trip functions
✓ Tap Changer Position – Verify against control room indication
✓ Cooling System Detailed Check – Clean fan blades, test controls
✓ Oil Temperature vs. Load – Compare readings to loading charts
✓ Gasket Inspection – Check all flanges for deterioration
✓ Paint Condition – Note any corrosion or coating failures
✓ Cable Terminations – Inspect for heating or looseness
✓ Control Wiring – Check for damage or unauthorized modifications
✓ Auxiliary Equipment – Test space heaters and moisture prevention
✓ Documentation Review – Analyze daily logs for trends
Normal vs. Abnormal Readings
| Parameter | Normal Range | Action Required |
|---|---|---|
| Top Oil Temperature | 65-85°C at full load | >90°C investigate cooling |
| Winding Temperature | 80-110°C at full load | >110°C reduce load |
| Oil Level | ±2 inches from baseline | Outside range = leak check |
| Pressure/Vacuum | -8 to +8 PSI | Outside range = seal inspection |
| Moisture in Oil | <20 PPM | >35 PPM schedule treatment |
| Bushing Temperature | <15°C above ambient | Higher = connection issue |
Safety Alert: Lockout/Tagout Procedures
Never perform monthly maintenance without proper lockout/tagout. This means:
- De-energizing the transformer following facility procedures
- Applying locks and tags to all energy isolation points
- Verifying zero energy with appropriate test equipment
- Grounding all terminals before any contact work
Remember that transformers can maintain dangerous induced voltages even when de-energized. Always treat equipment as energized until proven otherwise with proper testing. Full arc-flash PPE is required for any work inside the flash protection boundary, typically 10-15 feet for medium-voltage transformers.
Quarterly Transformer Maintenance Tasks
Quarterly transformer maintenance fills the critical gap between monthly visual checks and annual comprehensive testing. These intermediate procedures catch degradation trends before they reach failure thresholds.
Quarterly Maintenance Items:
✓ Oil Sample Collection – Draw samples for dissolved gas analysis (DGA)
✓ Infrared Thermal Scanning – Full equipment scan under load
✓ Connection Torque Check – Verify all accessible connections
✓ Bushing Cleaning – Remove contamination with approved methods
✓ Radiator/Cooler Inspection – Check for blockages or damage
✓ Sudden Pressure Relay Test – Verify operation without tripping
✓ Ground Grid Resistance – Measure and record resistance values
✓ Tap Changer Exercise – Operate through full range (if applicable)
✓ Nitrogen Blanket Pressure – Check and adjust as needed
✓ Surge Arrester Inspection – Look for tracking or damage
✓ Control Circuit Testing – Verify alarms and protective devices
Oil Sampling Procedure:
Proper oil sampling is critical for accurate analysis. Follow these steps:
- Prepare Equipment – Use clean, dry syringes and certified sample containers
- Flush Sample Valve – Run 500ml through valve before sampling
- Draw Sample – Fill container from bottom to minimize air contact
- Avoid Contamination – Don’t sample during rain or high humidity
- Label Immediately – Include date, location, temperature, and load
- Ship Promptly – Send to lab within 24 hours for best results
DGA results reveal developing problems months before failure. Watch for acetylene (indicates arcing), hydrogen (partial discharge), or carbon monoxide (paper insulation degradation). Trending these gases quarterly provides early warning of insulation breakdown or hot spots.
For detailed guidance on thermal scanning procedures and interpretation, reference our Infrared Electrical Inspections guide. Quarterly infrared scans typically identify 40% of developing connection problems before they cause outages.
Annual Transformer Maintenance Checklist
Your annual transformer maintenance checklist represents the most comprehensive evaluation of equipment condition. These procedures require specialized test equipment and qualified technicians, typically taking 8-16 hours per transformer including preparation and documentation.
Detailed Annual Testing Requirements:
✓ Insulation Resistance (Megger) Test – Measure winding insulation integrity
✓ Power Factor Testing – Evaluate insulation condition and contamination
✓ Turns Ratio Test (TTR) – Verify winding ratios and tap changer operation
✓ Winding Resistance Test – Check for connection problems or damage
✓ Sweep Frequency Response Analysis – Detect mechanical deformation
✓ Core Ground Test – Verify single-point grounding
✓ Bushing Power Factor – Individual bushing condition assessment
✓ Oil Complete Analysis – Full physical/chemical/electrical properties
✓ Partial Discharge Testing – Detect insulation defects
✓ Protective Relay Calibration – Verify settings and operation
✓ Load Tap Changer Service – Complete inspection and contact check
✓ Cooling System Overhaul – Clean radiators, replace filters, test controls
IEEE and NETA Testing Standards
| Test Type | IEEE Standard | NETA Frequency | Acceptance Criteria |
|---|---|---|---|
| Insulation Resistance | IEEE 43-2013 | Annual | >1000 MΩ at 5kV |
| Power Factor | IEEE C57.152 | Annual | <0.5% at 20°C |
| Turns Ratio | IEEE C57.12.90 | Annual | ±0.5% of nameplate |
| Winding Resistance | IEEE C57.12.90 | Annual | Within 5% of baseline |
| DGA | IEEE C57.104 | Annual minimum | Per IEEE limits |
| Oil Dielectric | ASTM D877 | Annual | >30 kV minimum |
| Moisture Content | ASTM D1533 | Annual | <35 PPM |
| Interfacial Tension | ASTM D971 | Annual | >25 dynes/cm |
Documentation requirements go beyond recording test values. Include ambient conditions, equipment temperatures, load levels during testing, and any abnormalities observed. Photograph any physical defects, connection problems, or areas of concern. These records support warranty claims, insurance documentation, and trending analysis.
Many facilities coordinate annual transformer maintenance with related equipment. See our guide on Switchgear Maintenance Procedures for integrated maintenance planning.
Oil-Filled vs Dry-Type Transformer Maintenance Differences
Understanding the distinction between oil-filled transformer maintenance checklist requirements and dry-type transformer maintenance checklist items is critical for proper care. Each type has unique failure modes and inspection needs.
Comparison Table: Oil vs Dry Maintenance Requirements
| Maintenance Item | Oil-Filled | Dry-Type |
|---|---|---|
| Daily Visual Inspection | Oil levels, leaks, gauges | Ventilation, temperature, dust |
| Cooling System | Radiators, fans, pumps | Louvers, fans only |
| Insulation Medium Testing | Oil sampling quarterly | Air quality, humidity monitoring |
| Temperature Limits | 65°C top oil rise | 150°C average winding rise |
| Moisture Control | Silica gel breathers | Space heaters, ventilation |
| Major Service Interval | 5-7 years | 10-12 years |
| Cleaning Requirements | Bushings, radiators | Coil dusting, vacuuming |
| Fire Protection | Deluge systems, containment | Standard sprinklers adequate |
| Indoor Installation | Requires containment | Standard installation |
| Noise Levels | 65-70 dB typical | 70-75 dB typical |
Type-Specific Inspection Points:
Oil-Filled Transformers:
- Check oil containment integrity monthly
- Monitor dissolved gas trends quarterly
- Inspect conservator bladder annually
- Test oil dielectric strength annually
- Verify pressure relief device operation
- Check for PCB contamination (pre-1979 units)
Dry-Type Transformers:
- Vacuum or blow out coils quarterly (more often in dusty environments)
- Check coil support and bracing annually
- Inspect for tracking patterns or discoloration
- Verify enclosure integrity and gaskets
- Test core and coil resistance annually
- Monitor vibration levels for mechanical issues
Common Mistakes to Avoid:
Never use water or wet cleaning methods on dry-type transformers—moisture trapped in windings causes insulation failure. For oil-filled units, avoid mixing different oil types without compatibility testing. Don’t assume dry-types require less maintenance; dust accumulation causes more failures than oil contamination.
Temperature monitoring differs significantly between types. Oil-filled transformers rely on top oil and winding temperature indicators, while dry-types often use RTDs embedded in windings. Understanding these differences prevents misinterpretation of thermal data and missed warning signs.
Transformer Testing Procedures and Standards
Proper transformer maintenance and testing procedures require both the right equipment and correct interpretation of results. These tests reveal internal conditions impossible to detect through visual inspection alone.
Test Types and Frequency
| Test Category | Specific Tests | Frequency | Equipment Required |
|---|---|---|---|
| Electrical Tests | Insulation resistance, Power factor, TTR | Annual | Megger, Power factor test set, TTR tester |
| Oil Tests | DGA, Dielectric, Moisture, Acidity | Quarterly/Annual | Lab analysis required |
| Thermal Tests | Infrared scanning, Temperature rise | Quarterly | IR camera, Load bank |
| Mechanical Tests | SFRA, Vibration analysis | As needed | SFRA analyzer, Vibration meter |
| Protection Tests | Relay calibration, CT/PT testing | Annual | Relay test set, Burden tester |
Required Testing Equipment:
- Insulation Resistance Tester: 5kV or 10kV output minimum
- Power Factor Test Set: 0.01% resolution, 12kV capability
- TTR Tester: 0.1% accuracy, automatic tap switching
- Micro-ohmmeter: 100A output for winding resistance
- Oil Test Equipment: Portable dielectric tester, moisture meter
- Infrared Camera: 320×240 resolution minimum, <2% accuracy
- Dissolved Gas Analyzer: Laboratory or portable unit
- Relay Test Set: Secondary injection, timing capability
Standards Reference Guide:
Following IEEE, NETA, and NFPA guidelines ensures testing validity and regulatory compliance:
- IEEE C57.12.90: Test procedures for liquid-immersed transformers
- IEEE C57.12.91: Test procedures for dry-type transformers
- NETA MTS-2019: Maintenance testing specifications
- NFPA 70B: Electrical equipment maintenance standards
- IEEE C57.106: Acceptance testing of transformers
- IEEE C57.104: Guide for interpretation of dissolved gases
Test acceptance criteria vary with transformer age, type, and voltage class. New transformers should meet manufacturer specifications, while aged units may have relaxed limits. Document all deviations from standards with engineering justification.
Creating Your Transformer Maintenance Program
Building an effective preventive maintenance of distribution transformer checklist pdf system requires more than copying generic templates. Your program must reflect your specific equipment, operating conditions, and business requirements.
5-Step Implementation Process:
Step 1: Asset Inventory and Assessment
Catalog every transformer with nameplate data, criticality rating, and maintenance history. Prioritize units serving critical processes or lacking redundancy. A pharmaceutical client we support identified that 30% of their transformers had no maintenance records—these became priority one.
Step 2: Customize Maintenance Intervals
Adjust standard frequencies based on transformer age, loading, and environment. Units in corrosive atmospheres need quarterly bushing cleaning. Transformers running above 80% capacity require monthly oil sampling. Document your reasoning for audit purposes.
Step 3: Develop Documentation Systems
Create standardized forms capturing all required data points. Include fields for technician observations, not just measurements. Digital systems enable trending, but paper backups prevent data loss. Your preventive maintenance of distribution transformer checklist pdf should be accessible to all maintenance staff.
Step 4: Train Your Team
Provide role-specific training for operators, maintenance technicians, and engineers. Operators need visual inspection skills. Technicians require hands-on testing procedures. Engineers must understand data interpretation and trending. Regular refresher training maintains competency.
Step 5: Continuous Improvement
Review failure reports quarterly to identify maintenance gaps. Track mean time between failures (MTBF) for each transformer. Adjust procedures based on findings. One aerospace manufacturer reduced transformer failures by 67% through quarterly program reviews.
For facilities requiring professional maintenance support, contact Delta Wye Electric to discuss our transformer maintenance programs. Our certified electricians bring 40+ years of experience maintaining critical transformers across 20+ states.
Conclusion
Implementing a comprehensive transformer maintenance checklist isn’t just about preventing failures—it’s about taking control of your facility’s electrical reliability. The systematic approach we’ve outlined, from daily visual inspections that catch early warning signs to annual testing that validates long-term reliability, provides the framework for preventing 75% of transformer failures before they impact your operations.
Remember that every inspection point, test procedure, and documentation requirement serves a purpose: protecting your facility from the cascading costs of unexpected outages. Whether you’re maintaining oil-filled giants or dry-type workhorses, the principles remain constant—consistent observation, timely testing, and acting on the data you collect.
A comprehensive transformer maintenance checklist isn’t just paperwork—it’s your insurance against catastrophic failure, unplanned downtime, and safety incidents that can devastate operations and reputations. The facilities that excel at transformer maintenance don’t view it as a cost center but as a strategic investment in operational certainty.
Ready to implement a professional transformer maintenance program? Contact Delta Wye Electric at (877) 399-1940 to discuss professional maintenance support for your critical assets. With over 40 years of experience maintaining transformers for aerospace, pharmaceutical, and manufacturing facilities, we bring the expertise to keep your power flowing reliably.
For more insights on maintaining industrial electrical systems, explore our guides on what transformers do in your facility and comprehensive preventive maintenance planning.
