Every year, arc flash incidents send 2,000 workers to burn centers and cause 400 fatalities—yet most facilities remain dangerously unprepared for this explosive electrical hazard. If you’re responsible for electrical safety at an industrial facility, you’ve likely heard the term “arc flash analysis” but may be uncertain about what it entails, why it’s required, or how to get one done properly.
An arc flash analysis (also called an arc flash study or assessment) is a comprehensive engineering evaluation of your electrical system that calculates potential arc flash hazards, determines safe working boundaries, and specifies the exact personal protective equipment (PPE) required at each piece of equipment. This critical safety assessment isn’t just good practice—it’s mandated by OSHA regulations and NFPA 70E standards to protect workers from catastrophic electrical injuries.
Understanding what is an arc flash analysis can mean the difference between a safe workplace and a devastating incident. This guide walks you through the specific OSHA and NFPA 70E requirements driving compliance, the 7-step process for conducting a thorough arc flash analysis, and how to interpret results and implement safety measures that actually work.
At Delta Wye Electric, we’ve performed hundreds of arc flash studies across California and Arizona since NFPA 70E was first introduced, helping facilities achieve compliance while creating genuinely safer work environments. Let’s break down exactly what an arc flash analysis entails and why it’s essential for your facility’s safety program.
What Exactly Is an Arc Flash Analysis?
An arc flash analysis is a detailed engineering study that identifies electrical hazards in your facility and quantifies the thermal energy that could be released during an arc flash event. The study produces specific safety requirements for every piece of electrical equipment where workers might perform tasks—from your main service entrance to individual motor control centers.
Arc Flash vs. Arc Blast: While often used interchangeably, these are distinct hazards. An arc flash is the intense heat and light released during an electrical fault, with temperatures reaching 35,000°F—four times hotter than the sun’s surface. An arc blast is the pressure wave and molten metal expelled during the same event. Your arc flash study addresses both hazards through comprehensive analysis.
The study uses sophisticated arc flash calculation methods based on IEEE 1584-2018 standards to determine incident energy levels at various points throughout your electrical distribution system. These calculations consider your system’s voltage, available fault current, equipment configurations, and protective device settings.
5 Key Deliverables of an Arc Flash Study
- Arc flash labels for each piece of electrical equipment showing incident energy levels, required PPE categories, arc flash boundaries, and safe working distances
- Single-line diagrams documenting your complete electrical distribution system from utility connection through all downstream equipment
- Short circuit and coordination study verifying your protective devices will operate correctly during fault conditions
- Detailed arc flash report containing all calculations, assumptions, equipment data, and methodology
- Mitigation recommendations identifying practical ways to reduce arc flash hazards through engineering or administrative controls
This comprehensive documentation doesn’t just satisfy regulatory requirements—it provides your electricians and maintenance staff with the specific information they need to work safely on energized equipment. When performed by qualified electrical engineers, an arc flash study transforms invisible electrical hazards into manageable risks with clear safety protocols.
Many facility managers confuse arc flash studies with other electrical assessments. Unlike a simple electrical inspection or infrared scan, an arc flash analysis requires complex engineering calculations, detailed system modeling, and ongoing updates as your electrical system changes.
Why Arc Flash Studies Are Required: OSHA and NFPA 70E Standards
The requirement for arc flash analysis stems from two primary sources: OSHA regulations and NFPA 70E standards. Understanding these requirements helps you maintain compliance and avoid potentially devastating penalties.
OSHA regulation 1910.335(a)(1)(i) requires employers to use “safety-related work practices” that protect employees from electrical hazards. More specifically, OSHA 1910.269 mandates that employers conduct arc flash assessments before employees work on or near exposed energized parts. While OSHA doesn’t explicitly require arc flash studies, the agency consistently cites facilities for violations when workers lack proper arc flash protection—making the study a practical necessity for compliance.
NFPA 70E 2024 edition provides the specific technical requirements OSHA references. Article 130.5 requires an arc flash risk assessment before any work on electrical equipment operating at 50 volts or more. This assessment must determine the arc flash boundary, incident energy at working distance, and appropriate PPE for the task.
| Requirement | OSHA | NFPA 70E |
|---|---|---|
| Legal Status | Federal law | Consensus standard (becomes law when adopted by OSHA) |
| Arc Flash Assessment | Required per 1910.335(a) | Detailed in Article 130.5 |
| PPE Requirements | Must protect from hazards | Specifies categories and cal/cm² ratings |
| Study Updates | When system changes | Every 5 years or after major modifications |
| Qualified Person | Must be trained | Defines specific training and knowledge requirements |
| Penalties | Up to $15,625 per violation | N/A (but drives OSHA enforcement) |
When Arc Flash Studies Are Required
Your facility needs an arc flash analysis in several situations:
- Initial compliance: If you’ve never had a study performed and workers interact with electrical equipment
- Five-year updates: NFPA 70E requires studies be reviewed and updated at least every five years
- Major system changes: Any modifications affecting available fault current, including utility service upgrades, transformer additions, or significant load changes
- New equipment installations: When adding switchgear, motor control centers, or other significant electrical equipment
- Facility expansions: Any construction that impacts your electrical distribution system
The financial consequences of non-compliance extend beyond OSHA fines averaging $13,653 per violation. Arc flash incidents result in catastrophic injuries, equipment damage exceeding hundreds of thousands of dollars, extended downtime, and potential criminal liability if willful negligence is proven.
A qualified person, as defined by NFPA 70E, must have the skills and knowledge to perform arc flash calculations—typically a licensed professional electrical engineer with specific arc flash study experience. This isn’t a task for general contractors or in-house staff without proper engineering credentials.
The 7-Step Arc Flash Analysis Process
Understanding what happens during an arc flash study helps you prepare your facility and ensures you receive a thorough, accurate assessment. Here’s the detailed process qualified electrical engineers follow:
Step 1: Data Collection and Site Survey
Engineers begin by gathering comprehensive information about your electrical system. This includes utility service details, transformer specifications, generator data, switchgear ratings, protective device settings, cable sizes and lengths, and equipment nameplate information. The team conducts a physical site walk-through to verify one-line diagram accuracy, identify equipment locations, document working distances, and photograph equipment for labeling purposes.
Step 2: System Modeling
Using specialized software like SKM PowerTools or ETAP, engineers create a detailed computer model of your entire electrical distribution system. This digital twin replicates your facility’s electrical characteristics, allowing accurate calculations of fault currents and incident energy levels throughout the system.
Step 3: Short Circuit Analysis
The team calculates maximum available fault current at every point in your electrical system. These short circuit calculations determine the worst-case electrical stress your equipment and protective devices might experience during a fault condition. The analysis verifies that your equipment ratings exceed available fault currents—a critical safety requirement.
Step 4: Protective Device Coordination Study
Engineers analyze how your circuit breakers, fuses, and relays will respond during fault conditions. Proper coordination ensures the protective device closest to a fault opens first, minimizing the affected area and reducing arc flash incident energy. This step often identifies coordination problems that increase both arc flash hazards and operational disruptions.
Step 5: Arc Flash Calculation
Using IEEE 1584-2018 methodology, engineers calculate incident energy levels at each piece of equipment where workers might perform tasks. The arc flash calculation determines the thermal energy (measured in calories per square centimeter, or cal/cm²) that would be released at the working distance during an arcing fault. These calculations account for system voltage, available fault current, protective device clearing time, equipment configuration, and working distance.
Step 6: Arc Flash Boundary Determination
For each equipment location, engineers establish the arc flash boundary—the distance from the potential arc source where incident energy equals 1.2 cal/cm² (the threshold for second-degree burns). Workers must wear appropriate PPE when crossing this boundary. The analysis also defines limited approach and restricted approach boundaries per NFPA 70E requirements.
Step 7: Label Creation and Report Generation
The final deliverables include custom arc flash labels for each equipment location showing incident energy, PPE category, arc flash boundary, working distance, and equipment details. The comprehensive report documents all calculations, system data, one-line diagrams, and mitigation recommendations.
Each label provides your electricians with critical information they need before opening a panel or working on equipment. A properly labeled electrical system transforms abstract calculations into practical, actionable safety guidance that protects workers every day.
Our electrical engineering and design team ensures every arc flash study meets current IEEE and NFPA standards while providing practical recommendations you can actually implement.
Understanding Arc Flash Boundaries and Incident Energy
The numbers on your arc flash labels represent real-world safety decisions. Understanding arc flash boundaries and incident energy helps you implement effective protection strategies and train your team appropriately.
Incident Energy Explained
Incident energy is the amount of thermal energy that could reach a worker during an arc flash event, measured in calories per square centimeter (cal/cm²). This measurement determines the PPE rating required to protect against second-degree burns. For context:
- 1.2 cal/cm²: Threshold for second-degree burns (defines arc flash boundary)
- 4 cal/cm²: Typical rating for everyday work clothing
- 8 cal/cm²: Common PPE requirement for low-voltage equipment
- 40+ cal/cm²: High-hazard equipment requiring specialized protection
The incident energy at any location depends on available fault current, protective device clearing time, working distance from the arc source, and system voltage. Faster protective device operation dramatically reduces incident energy—which is why coordination studies and proper device settings are critical for worker safety.
The Three Critical Boundaries
NFPA 70E defines three approach boundaries around energized electrical equipment:
Arc Flash Boundary: The distance where incident energy equals 1.2 cal/cm². Workers must wear arc-rated PPE appropriate to the calculated incident energy when crossing this boundary. This boundary is unique to each piece of equipment and appears on your arc flash labels.
Limited Approach Boundary: An electrical shock protection boundary where unqualified persons must not cross without escort. Qualified persons may cross but must use shock protection techniques. Distances range from 3 feet 6 inches for 480V systems to 11 feet for 15kV equipment.
Restricted Approach Boundary: The distance where there’s increased risk of shock. Only qualified persons using appropriate PPE may cross this boundary. For 480V systems, this boundary is typically 12 inches from exposed conductors.
| Equipment Voltage | Arc Flash Boundary | Limited Approach | Restricted Approach |
|---|---|---|---|
| 480V (typical) | Calculated per equipment | 3 ft 6 in | 1 ft |
| 4.16kV | Calculated per equipment | 5 ft | 1 ft 2 in |
| 13.8kV | Calculated per equipment | 8 ft | 2 ft 2 in |
PPE Categories and Cal/cm² Ratings
NFPA 70E defines PPE categories that correspond to incident energy levels:
- Category 1: Minimum 4 cal/cm² protection (arc-rated shirt and pants, safety glasses, hearing protection)
- Category 2: Minimum 8 cal/cm² protection (adds arc-rated face shield and balaclava)
- Category 3: Minimum 25 cal/cm² protection (arc flash suit with hood)
- Category 4: Minimum 40 cal/cm² protection (maximum protection arc flash suit)
Your arc flash study specifies the exact PPE category required for each equipment location. Workers must never use PPE rated below the calculated incident energy level—doing so provides false security while leaving them vulnerable to catastrophic burns.
Example Calculation Walkthrough: Consider a 480V motor control center with 25kA available fault current and a circuit breaker that clears faults in 0.15 seconds. At an 18-inch working distance, the calculated incident energy might be 6.5 cal/cm², requiring Category 2 PPE with an arc flash boundary of approximately 3 feet. If protective device settings are optimized to clear the same fault in 0.05 seconds, incident energy drops to 2.8 cal/cm², reducing PPE requirements to Category 1 and shrinking the arc flash boundary to 18 inches.
This example illustrates why arc flash mitigation often focuses on reducing protective device clearing times—faster protection dramatically improves worker safety.
Arc Flash Study Costs and Timeline Factors
One of the most common questions facility managers ask is: “What will an arc flash study cost?” While every facility is unique, understanding the factors that drive pricing helps you budget appropriately and evaluate proposals.
Typical Cost Ranges by Facility Size
- Small facilities (1-10 pieces of equipment): $3,000-$7,000
- Medium facilities (10-50 pieces of equipment): $7,000-$20,000
- Large facilities (50-200 pieces of equipment): $20,000-$60,000
- Complex industrial sites (200+ pieces of equipment): $60,000-$150,000+
These ranges reflect complete arc flash analysis including data collection, modeling, calculations, coordination study, report generation, and label production. Pricing typically runs $300-$800 per equipment location depending on system complexity.
8 Factors That Impact Study Cost
- Number of equipment locations: Each piece requiring a label adds to the scope
- System voltage and complexity: Higher voltages and complex distribution networks require more detailed analysis
- Existing documentation quality: Accurate, up-to-date one-line diagrams reduce data collection time
- Site accessibility: Multi-building campuses or facilities with restricted access increase field time
- Protective device types: Modern electronic devices with detailed settings require more coordination analysis
- Multiple utility services: Facilities with redundant utility feeds or on-site generation add complexity
- Mitigation study requirements: Analyzing reduction strategies extends the project scope
- Label quantity and customization: Facilities requiring multiple labels per equipment location increase material costs
Timeline Considerations
A typical arc flash study takes 4-8 weeks from kickoff to final deliverables:
- Week 1-2: Data collection, site survey, and documentation review
- Week 2-4: System modeling, short circuit analysis, and coordination study
- Week 4-6: Arc flash calculations and boundary determination
- Week 6-8: Report generation, label production, and final review
Rush projects may be completed in 2-3 weeks with premium pricing. Complex facilities or those requiring extensive mitigation analysis may extend to 12+ weeks.
Budget timing is equally important. Many facilities schedule arc flash studies during planned shutdowns when equipment is accessible and workers are available to escort engineers. Planning 3-6 months ahead ensures you secure engineering resources during your preferred timeframe.
Contact Delta Wye Electric for a detailed proposal tailored to your facility’s specific configuration, timeline requirements, and budget parameters. We provide transparent pricing with clear scope definition before any work begins.
Interpreting Your Arc Flash Report: Key Sections Explained
When you receive your arc flash study, the report may seem overwhelming with technical calculations and engineering data. Here’s how to navigate the key sections and extract actionable information.
Executive Summary
This opening section provides a high-level overview of your facility’s arc flash hazards, identifies the highest-risk equipment locations, summarizes major findings and recommendations, and lists any critical safety concerns requiring immediate attention. Facility managers should read this section first to understand overall risk profile and prioritize action items.
System One-Line Diagrams
These electrical schematics show your complete power distribution from utility service through all downstream equipment. Updated one-lines are invaluable for future projects, troubleshooting, and system modifications. Verify these diagrams match your actual installation—discrepancies indicate missing or incorrect data that could affect calculation accuracy.
Equipment Data Tables
Comprehensive tables list every piece of equipment analyzed, including equipment ID, location, voltage, available fault current, incident energy, arc flash boundary, and required PPE category. This becomes your reference for daily work planning and PPE selection.
Arc Flash Calculation Sheets
Detailed calculations for each equipment location show the methodology, input parameters, and results. While most facility staff won’t review these daily, they’re essential for engineering verification and future updates. Qualified electrical engineers should review calculation assumptions for accuracy.
Coordination Study Results
Time-current curves and analysis showing how your protective devices will respond during fault conditions. This section identifies coordination problems where multiple devices might trip for a single fault—issues that increase both arc flash hazards and operational disruptions.
Mitigation Recommendations
Perhaps the most valuable section for facility managers, these recommendations identify practical ways to reduce arc flash hazards. Common suggestions include adjusting protective device settings, implementing maintenance mode switch settings, installing current-limiting devices, upgrading protective devices with faster operating times, and establishing administrative controls for high-hazard tasks.
Post-Study Action Checklist
- Review executive summary with safety team
- Verify all equipment locations are accurately identified
- Install arc flash labels on all equipment
- Update electrical safety procedures based on study findings
- Procure appropriate PPE for all identified categories
- Train qualified workers on label interpretation and boundary requirements
- Implement high-priority mitigation recommendations
- Schedule five-year study update
- Document study completion for OSHA compliance records
Real Mitigation Example: A food processing facility received an arc flash study showing incident energy levels of 18 cal/cm² at their main distribution panel—requiring Category 3 PPE that maintenance staff didn’t own. By implementing maintenance mode settings on the main breaker (reducing clearing time from 0.30 seconds to 0.08 seconds), engineers reduced incident energy to 6 cal/cm². This simple protective device adjustment eliminated the need for expensive Category 3 PPE while dramatically improving worker safety.
This case demonstrates why the arc flash report isn’t just a compliance document—it’s a roadmap for practical safety improvements.
Arc Flash Mitigation Strategies That Work
Completing your arc flash study is just the beginning. The most effective electrical safety programs actively work to reduce arc flash hazards rather than simply accepting calculated values and purchasing higher-rated PPE.
The Hierarchy of Risk Control
Effective arc flash mitigation follows the hierarchy of risk control, prioritizing solutions based on effectiveness:
1. Elimination (most effective): Remove the hazard entirely by de-energizing equipment before work. NFPA 70E requires working de-energized whenever possible. While not always practical, this remains the safest approach.
2. Substitution: Replace high-hazard tasks with lower-hazard alternatives. For example, use infrared windows for temperature monitoring instead of opening energized panels, or implement remote racking systems that allow equipment operation from outside arc flash boundaries.
3. Engineering Controls: Modify your electrical system to reduce incident energy. These solutions provide permanent hazard reduction without relying on worker behavior.
4. Administrative Controls: Implement policies and procedures that reduce exposure. Examples include restricting energized work, requiring two-person teams, and establishing formal energized electrical work permits.
5. Personal Protective Equipment (least effective): While essential, PPE is the last line of defense. Relying solely on PPE without addressing upstream controls leaves workers vulnerable to human error.
Top 10 Mitigation Methods
- Implement maintenance mode settings: Modern electronic circuit breakers can temporarily operate in “fast trip” mode during maintenance, dramatically reducing clearing times and incident energy
- Upgrade to current-limiting devices: Current-limiting circuit breakers or fuses reduce both available fault current and arc flash hazards
- Install arc flash relays: Specialized protective relays detect arc flash events and trip breakers in milliseconds—often reducing incident energy by 75% or more
- Zone selective interlocking (ZSI): Communication between protective devices ensures only the device closest to the fault trips, minimizing clearing time
- Optimize protective device settings: Proper coordination and settings reduce clearing times without sacrificing selectivity
- Add infrared inspection windows: Allow temperature monitoring without opening panels
- Install remote racking systems: Operate equipment from outside arc flash boundaries
- Increase working distance: Where practical, design systems with greater working distances to reduce incident energy
- Establish energized electrical work permits: Formal approval process ensures proper planning and hazard assessment
- Implement lockout/tagout procedures: Standardized de-energization procedures eliminate hazards for maintenance tasks
Engineering controls like maintenance mode settings and arc flash relays provide the best return on investment. These solutions permanently reduce hazards for all future work, unlike PPE which requires correct selection and use for every task.
Our power distribution services include arc flash mitigation implementation, from protective device upgrades to complete system redesigns that prioritize worker safety.
Maintaining Arc Flash Compliance Over Time
Arc flash analysis isn’t a one-time checkbox—it’s an ongoing safety program requiring regular updates, training, and maintenance. Here’s how to maintain compliance and ensure your electrical safety program remains effective.
The 5-Year Update Cycle
NFPA 70E requires arc flash studies be reviewed and updated at least every five years. This timeline recognizes that electrical systems evolve, equipment ages, and standards change. Schedule your next study update before the five-year deadline to avoid compliance gaps.
However, several events trigger the need for immediate study updates:
- Major system modifications: Utility service upgrades, transformer additions or replacements, significant load additions (50+ HP motors, large process equipment), new electrical distribution equipment, or on-site generation installations
- Protective device changes: Circuit breaker replacements, relay setting modifications, or fuse specification changes
- Facility expansions: New buildings or production areas connected to existing electrical systems
- Equipment failures: Short circuit events that may have damaged equipment or affected system impedances
- Standard updates: When new editions of IEEE 1584 or NFPA 70E introduce methodology changes
Training Requirements Checklist
NFPA 70E Article 110.2 requires training for all employees exposed to electrical hazards:
Qualified Person Training (for electricians and maintenance staff):
- Arc flash hazard recognition
- Arc flash boundary determination
- PPE selection based on incident energy
- Proper use and inspection of arc-rated clothing
- Shock hazard boundaries and protection
- Safe work practices for energized equipment
- Lockout/tagout procedures
- Emergency response procedures
Unqualified Person Training (for operators and other staff):
- Basic electrical safety awareness
- Recognition of electrical hazards
- Limited approach boundary restrictions
- Emergency response procedures
Training must be documented and repeated at least every three years, or when job assignments change, when supervision determines retraining is necessary, or when new hazards are introduced.
Documentation Best Practices
Maintain comprehensive records of your electrical safety program:
- Arc flash study reports: Current and historical studies showing system evolution
- Equipment modifications: Detailed records of all electrical system changes
- Training records: Attendance, topics covered, and competency verification
- Energized work permits: Documentation of all work performed on energized equipment
- Incident investigations: Any arc flash or electrical incidents, near-misses, and corrective actions
- PPE inspection logs: Regular inspection and testing of arc-rated clothing
- Preventive maintenance records: Showing protective device testing and calibration
These records demonstrate due diligence during OSHA inspections and provide critical information for future study updates.
5-Year Compliance Timeline
Year 1 (Study Completion):
- Install arc flash labels
- Implement immediate mitigation recommendations
- Conduct initial training
- Update electrical safety procedures
Year 2:
- Annual training refresher
- Review and update energized work procedures
- Implement additional mitigation projects
Year 3:
- Required training update
- Mid-cycle study review for major changes
- PPE inventory and replacement
Year 4:
- Annual training refresher
- Begin planning for 5-year study update
- Review system modifications requiring immediate study updates
Year 5:
- Complete updated arc flash study
- Install updated labels
- Conduct comprehensive training on any changes
- Reset compliance cycle

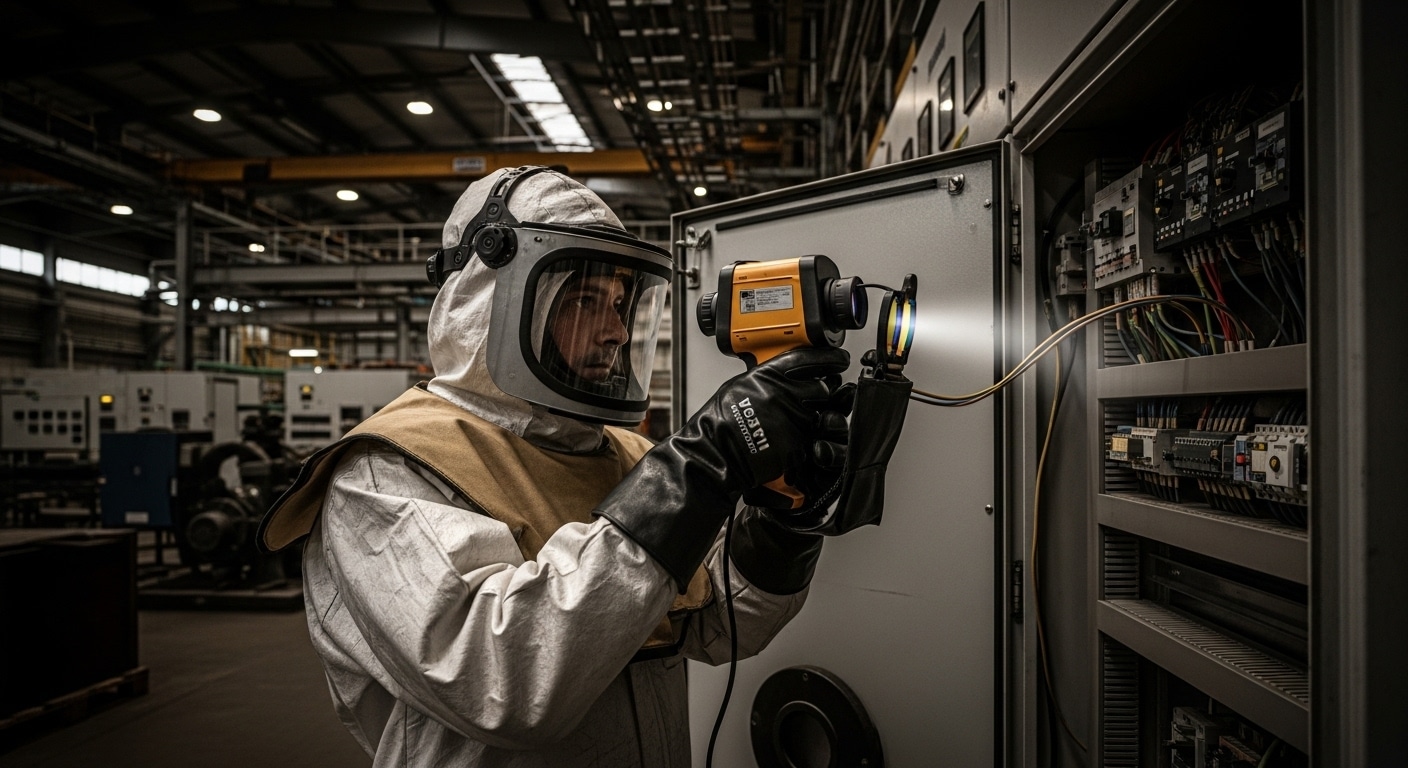

Regular infrared inspections complement your arc flash program by identifying equipment problems before they cause failures or affect system performance. Thermal imaging detects loose connections, overloaded circuits, and failing components—all conditions that can impact arc flash hazard levels.
Protecting Your Workers and Your Business
Arc flash analysis is a mandatory safety assessment that protects workers and ensures OSHA and NFPA 70E compliance. The 7-step process requires qualified electrical engineers and produces specific PPE requirements and safety boundaries for each piece of equipment in your facility. Studies must be updated every five years or after major system changes, with ongoing training and maintenance critical for sustained safety.
A properly conducted arc flash study transforms an invisible, catastrophic hazard into a manageable risk with clear safety protocols—protecting your workers, your equipment, and your business from devastating consequences. The investment in professional arc flash analysis pays dividends through reduced injury risk, OSHA compliance, lower insurance premiums, and improved electrical system reliability.
This article provides educational information about arc flash analysis and does not replace professional engineering assessment. Arc flash studies must be performed by qualified electrical engineers licensed in your jurisdiction. The information presented reflects current standards as of 2024 but should not be used as the sole basis for electrical safety decisions.
Ready to ensure your facility’s electrical safety compliance? Contact Delta Wye Electric at (877) 399-1940 for a comprehensive arc flash analysis quote tailored to your specific needs. Our qualified electrical engineers bring decades of experience helping facilities across California and Arizona achieve compliance while implementing practical safety improvements.
For more insights on electrical safety and compliance, explore our complete guide to industrial electrical construction or learn about our arc flash studies and compliance services.
